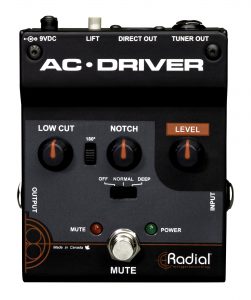

¼" Output
¼” post-EQ output used to feed an on-stage amplifier.

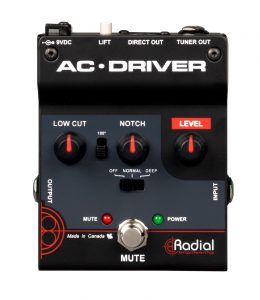

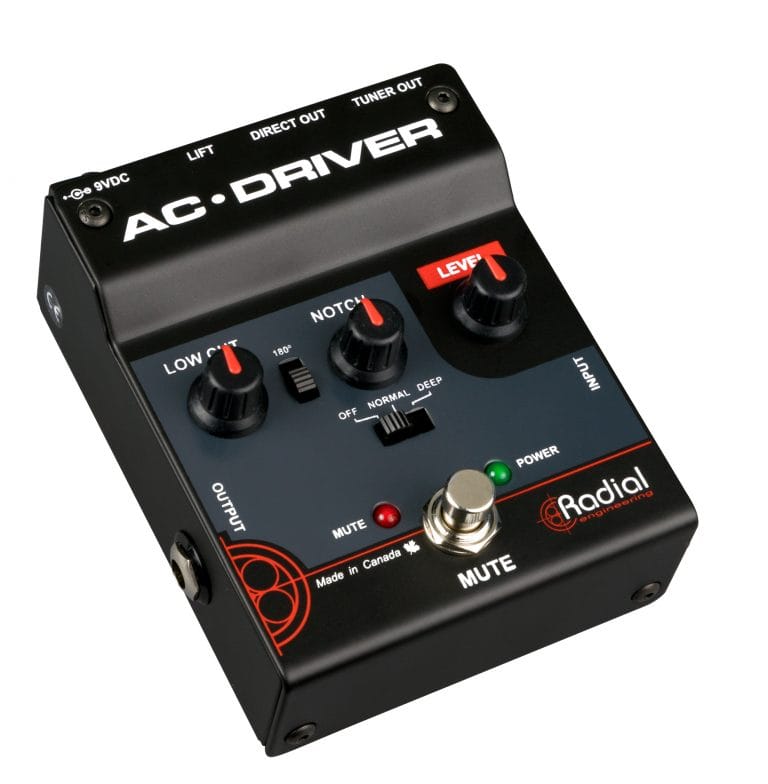

Low Cut
Variable filter rolls off excessive low frequencies and controls bass resonance.

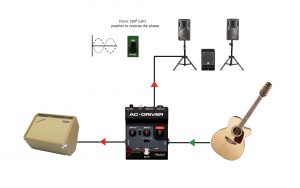

Phase Reverse
Used to reduce on-stage feedback by reversing the polarity of the XLR output.
Notch-Q
3-position switch bypasses the notch filter or selects between regular or extra-deep notch. Works in conjunction with the notch frequency control.
Mute
Footswitch turns off all outputs except the tuner out. Used for quiet on-stage tuning.
Notch
Sets the center frequency for the notch filter. Used to eliminate feedback.
Level
Controls the output level of both the XLR and the ¼” outputs.

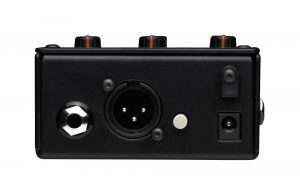

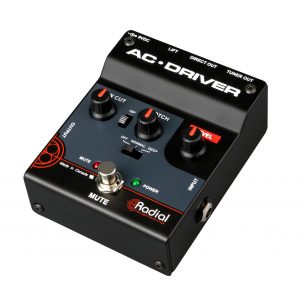

Input
¼” jack used to connect your instrument to the AC-Driver.
Tuner
Always on buffered output.

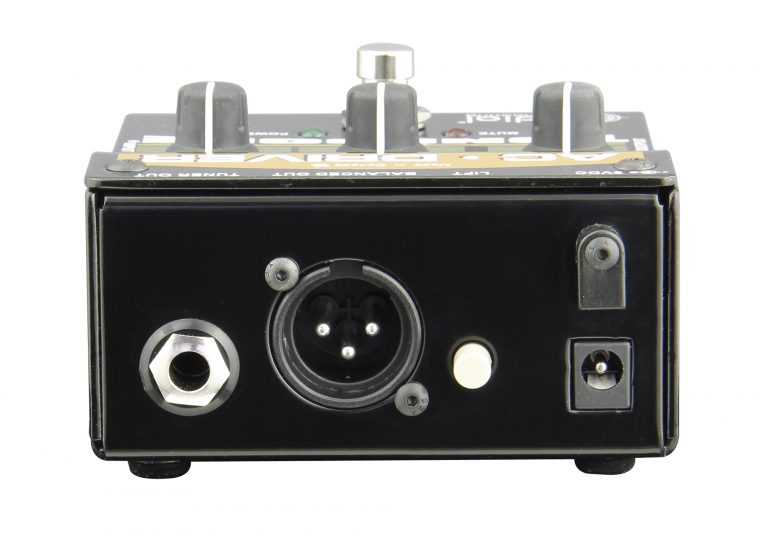

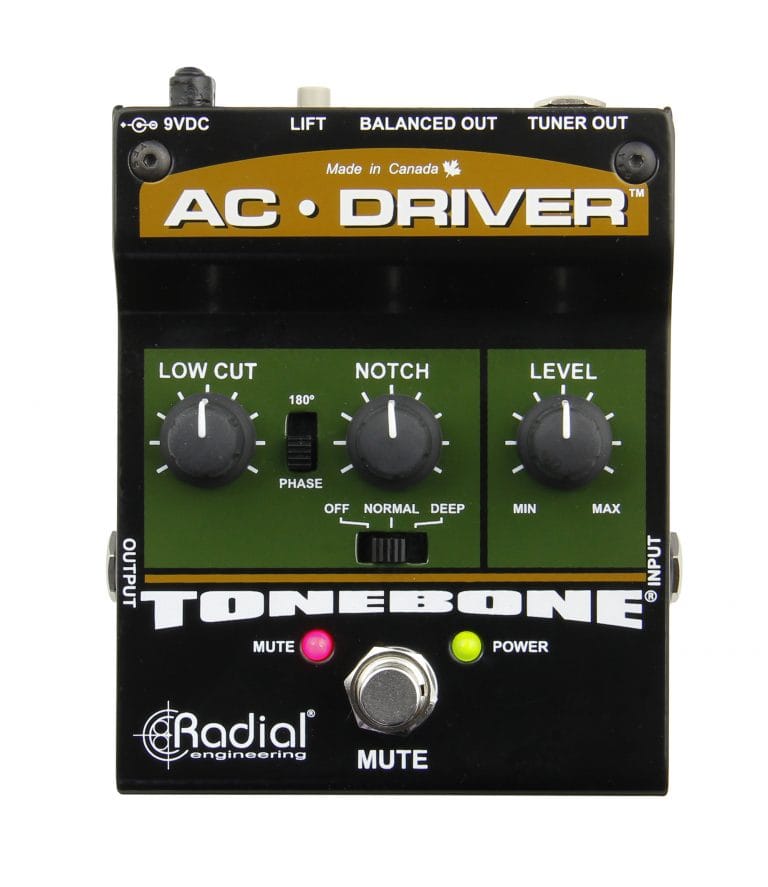

Balanced Output
XLR line level output connects directly to a powered PA speaker or PA system.
Ground Lift
Disconnects pin-1 ground at the XLR output.
Power
Connection for 9-12 volt DC (center pin negative power supply)
