AC-Driver Specifications

The AC-Driver is a compact high performance preamp with a footswitch mute control and the ability to reduce feedback on stage. A proprietary response curve has been modeled after the popular PZ-Pre, which provides a warm yet detailed sonic signature that will flatter most acoustic instruments. Extremely low noise and distortion set the AC-Driver apart, with a 14-gauge steel housing and intuitive features that provide you with complete control over your live performance.

Specifications
Audio circuit type: Class-A FET
Dynamic range: +107dBu
Input Impedance: 10 MΩ
Output Impedance: 4.4kΩ
Noise: -97dBu
Maximum Input: +10dBu
Features
180° polarity reverse, Ground lift, Level Control
Input Connectors: 1/4"
Output Connectors: 1/4", XLR
General
Construction: 14-gauge steel chassis
Size (L x W x D): 4.75" x 3.75" x 1.75" (12.06 x 9.5 x 4.5cm)
Weight: 1.4lbs (0.63kg)
Shipping size (L x W x D): 6.25" x 4.25" x 3" (15.8 x 10.8 x 7.6cm)
Shipping weight: 1.7lbs (0.77kg)
Power: 40mA, 9VDC (center pin negative)
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable

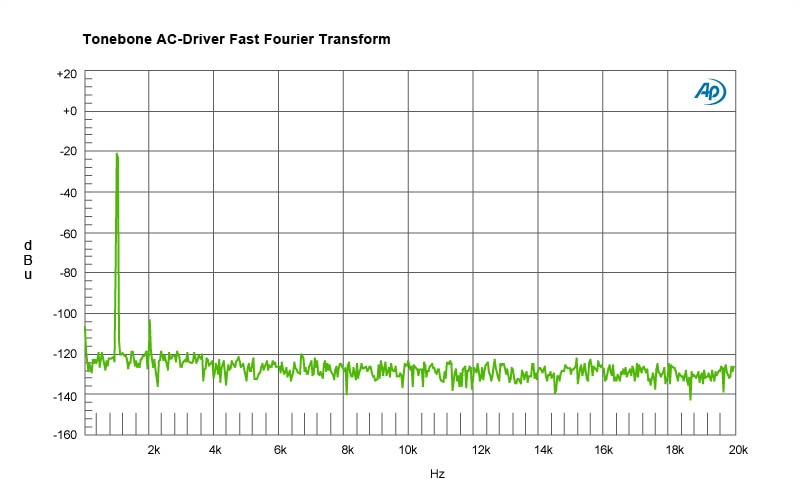

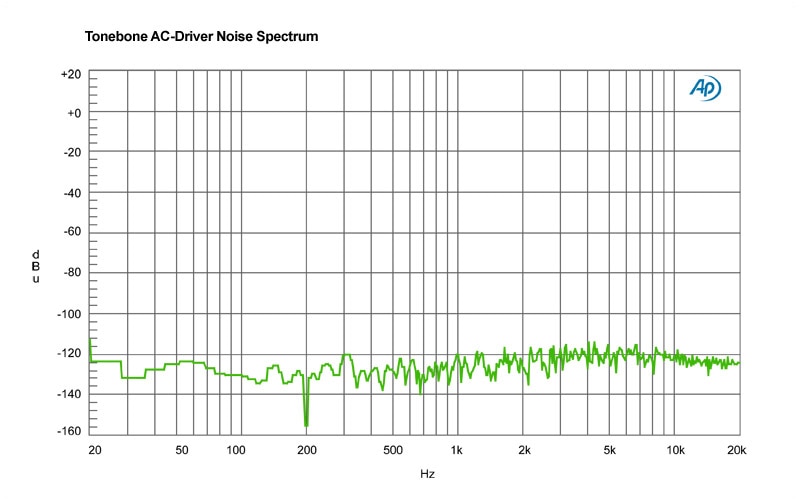

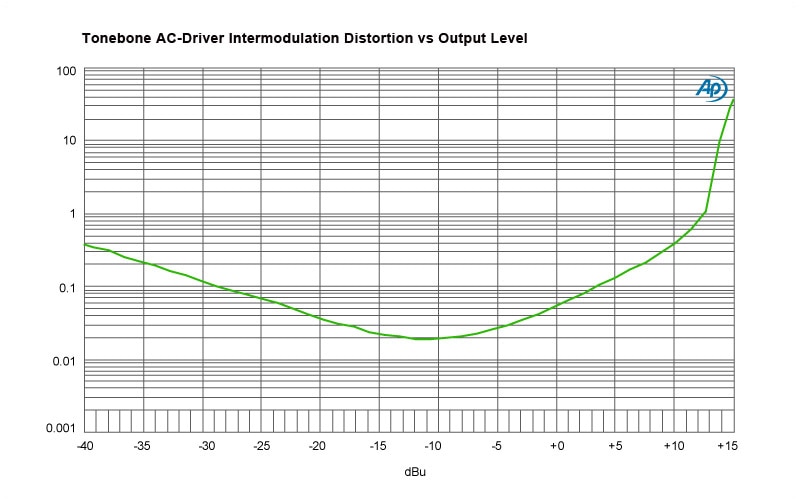

What do these graphs mean? Learn what to look for and why it matters.

Learn More

AC-Driver Resources

Part no: R800 7322 00
