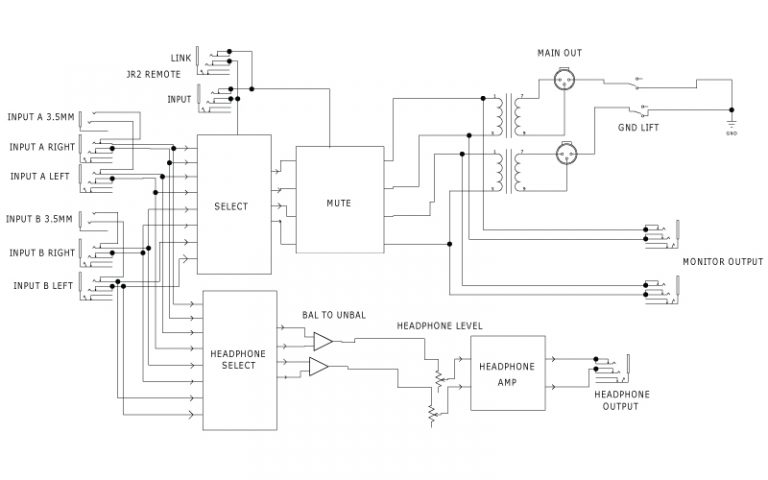

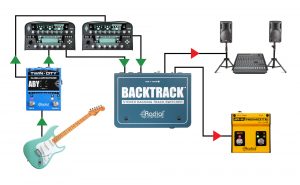

Block Diagram

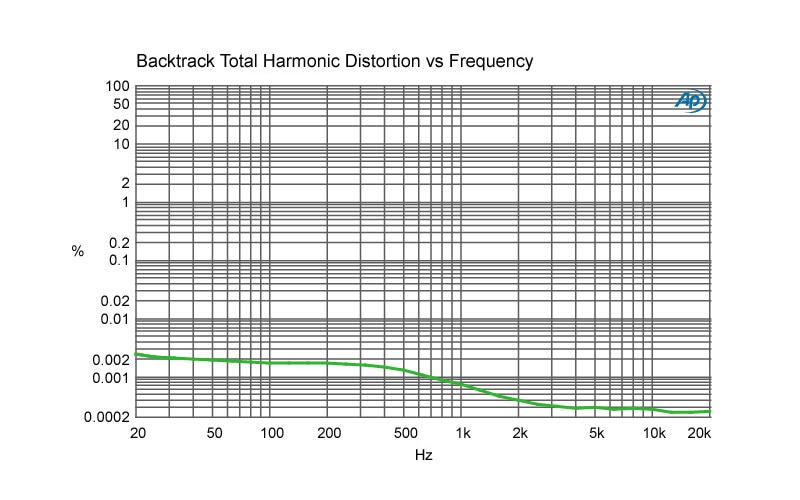

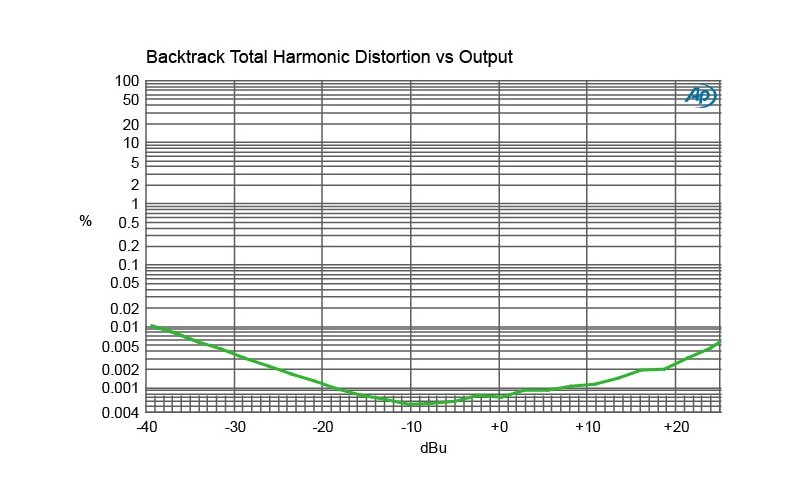

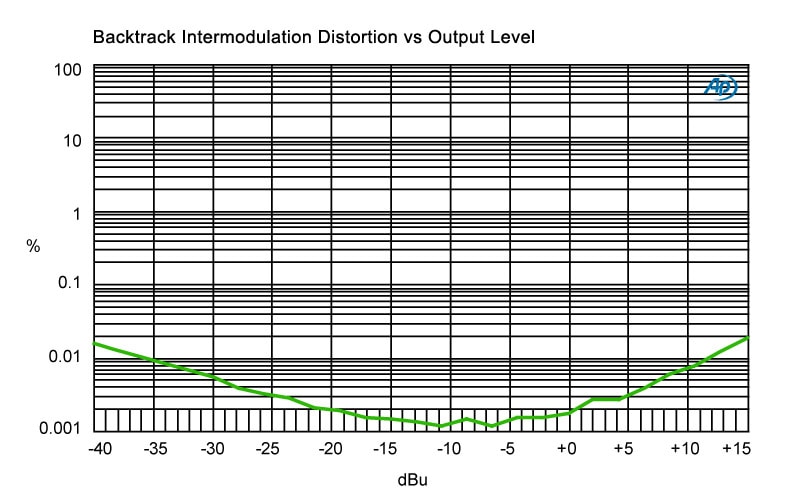

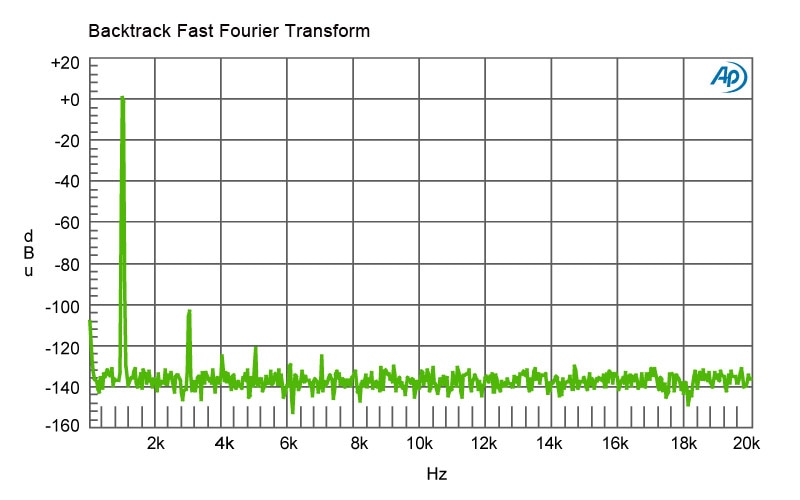

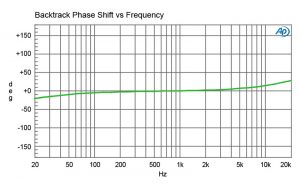

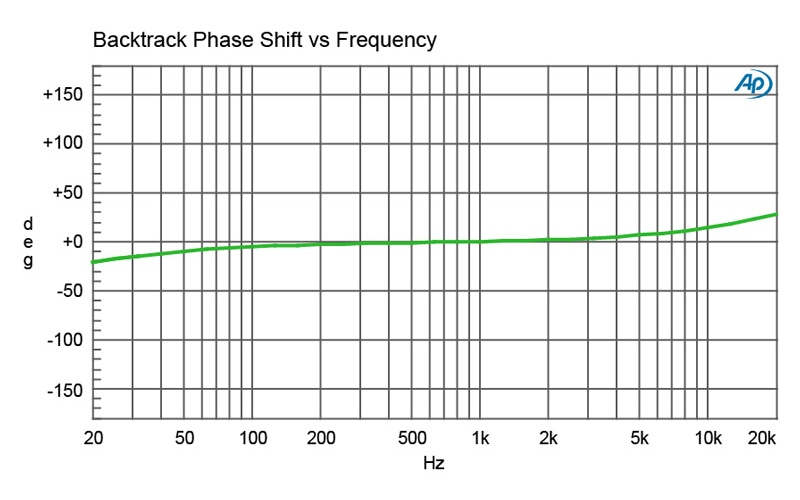

Graphs
| Specifications | ||
|---|---|---|
| Audio circuit type: | Passive Audio Circuit with Active Headphone Amplifier | |
| Number of channels: | 2 | |
| Frequency response: | 20Hz - 20kHz (-0.5dB/+0.5dB) | |
| Dynamic range: | >+130dBu | |
| Total harmonic distortion: | 0.007% @ 0dBu, 1kHz | |
| Intermodulation Distortion: | 0.02% @ 0dBu, 1kHz | |
| Common Mode Rejection Ratio: | 34dBu @ 60Hz, 42dBu @ 3kHz | |

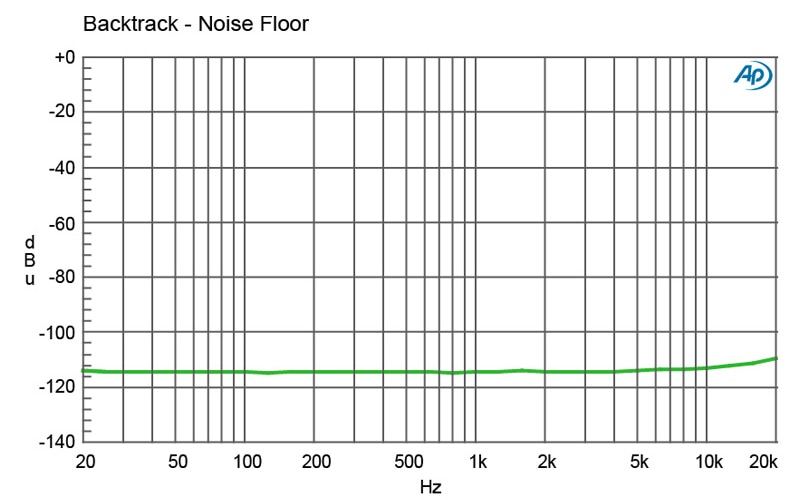

| Noise Floor: | -105dBu | |
| Maximum Input: | >+25dBu | |
| Features | ||
| Ground lift, Headphone | ||
| Input Connectors: | 1/4" TRS, 3.5mm, RCA | |
| Output Connectors: | XLR, 1/4" TRS | |
| Extras: | Headphone output | |
| General | ||
| Construction: | 14-gauge steel chassis | |
| Size (L x W x D): | 4.6" x 5.9" x 1.9" (11.7 x 15 x 4.8cm) | |
| Weight: | 2.2 lb (1kg) | |
| Shipping size (L x W x D): | 11.7" x 4.75" x 2.5" (29.7 x 12 x 6.4cm) | |
| Shipping weight: | 3.25 lb (1.5kg) | |
| Power: | 15VDC 100mA | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |

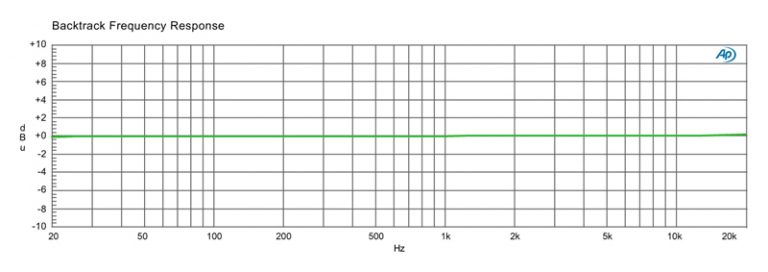

Frequency Response
