1
2
3

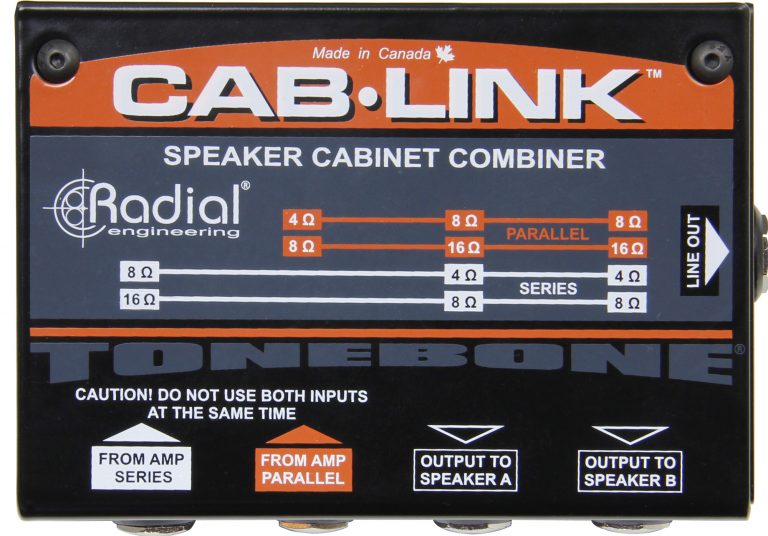

From Amp (Series)
Connect your amplifier to this input when using in series configuration.
1
From Amp (Parallel)
Connect your amplifier to this input when using in parallel configuration.
2
Speaker Outputs
Connect to the inputs of your speaker cabinets.
3
1
2

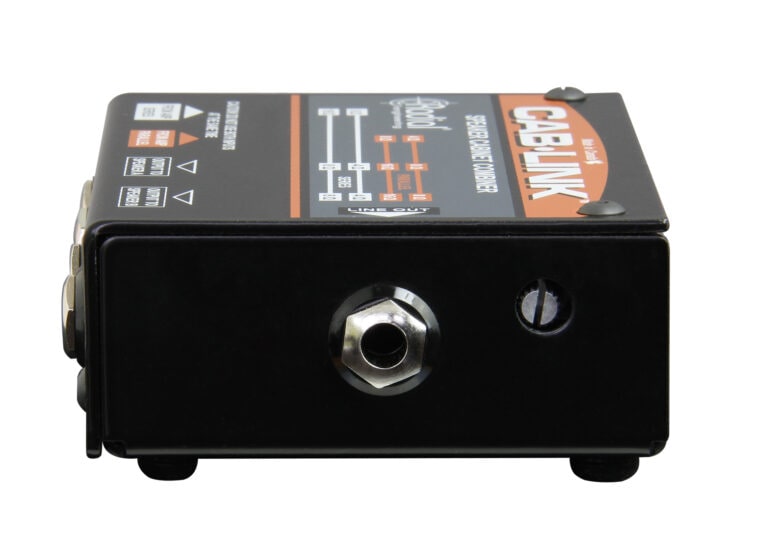

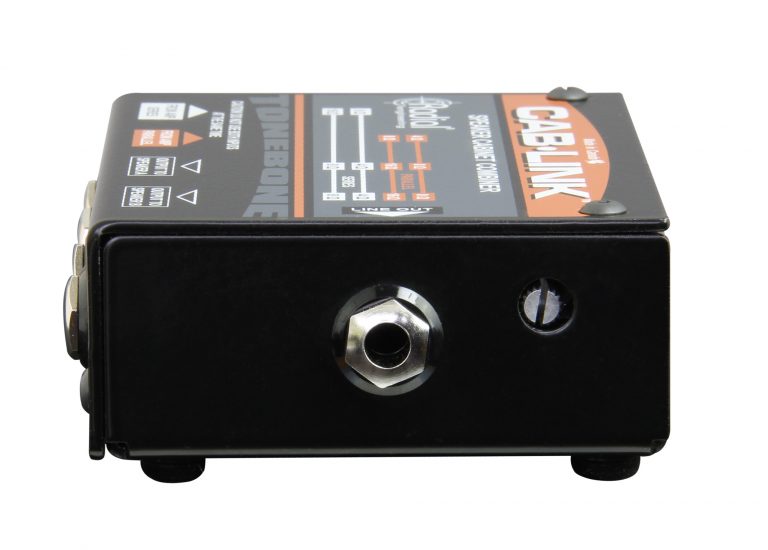

Line Out
Additional output can feed another amplifier or effects device.
1
Level Control
Adjusts the output of the line out.
2
