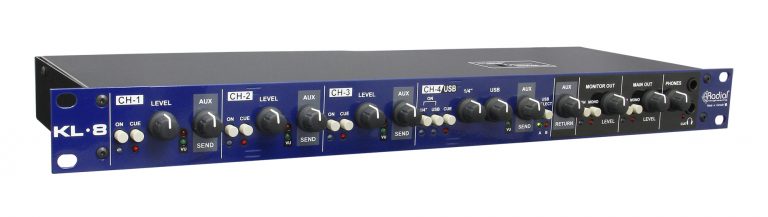

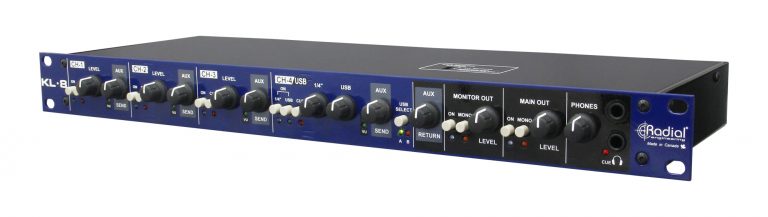

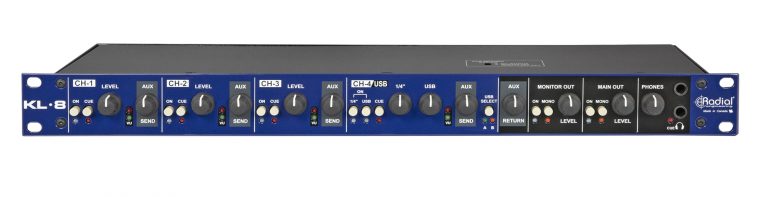

Level controls, LED meters, and Aux sends for three stereo keyboards.
Used for silent auditioning by muting the channel from the MAIN OUT.
LED indicators to show that signal is present or clipping.
Ch4 / USB In
Additional controls for a fourth keyboard and USB inputs.
Aux Return Assign
Determines whether the Aux Return feeds all outputs or only the Monitor and Headphone outputs.
Adjusts the level of the aux return inputs.
Used to adjust the stage volume of a powered speaker on stage.
Sets the KL-8 output level to the PA system.

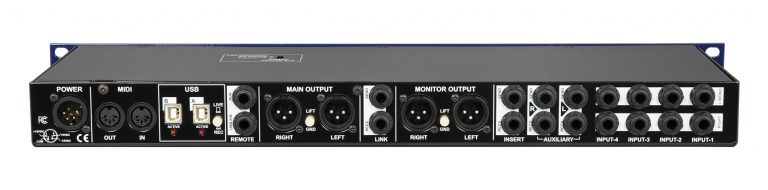

In and Out connections for easy integration with MIDI controllers.
Redundant USB Type-2 connections interface with Mac or PC computers for high quality digital audio playback.
Connect the optional JR-1 remote footswitch to select the drive USB input or provide remote control over the aux inputs.
Balanced and transformer-isolated XLR outputs are used to feed the PA system.
¼" TRS connections allow multiple KL-8s to be linked together for larger keyboard setups.
Balanced XLR outputs used to feed a pair of powered speakers for on-stage monitoring.
Aux Send & Receive
¼” jacks for connecting to an external effects device.

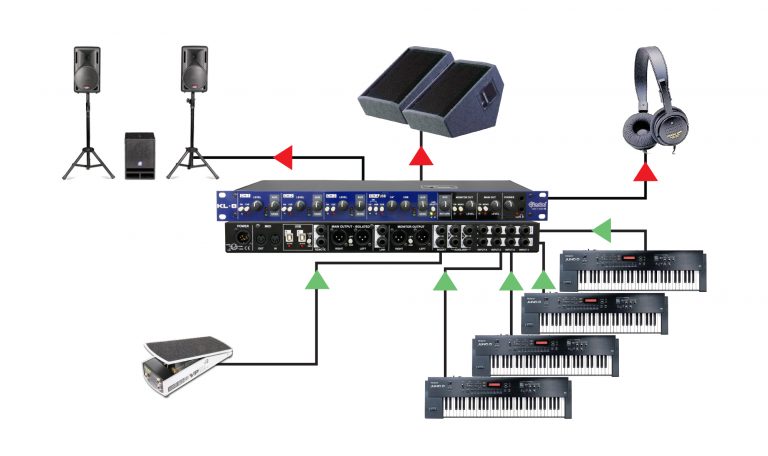

Used to connect the analog outputs of your keyboards to the KL-8.
