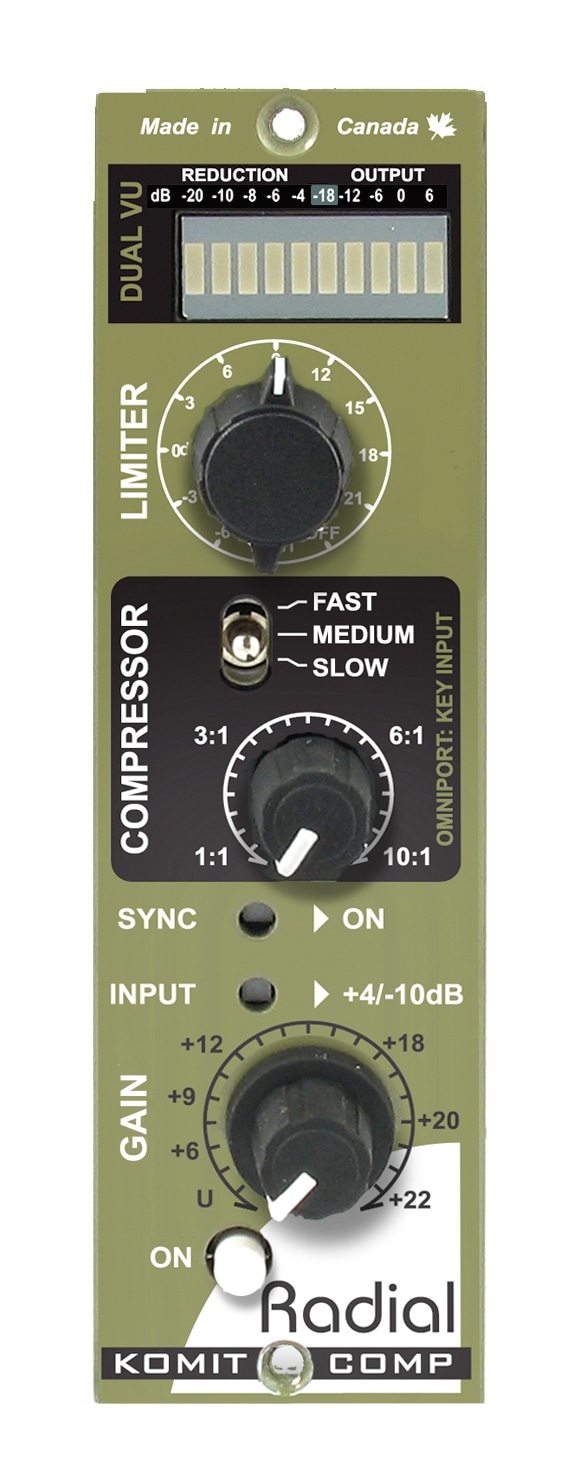

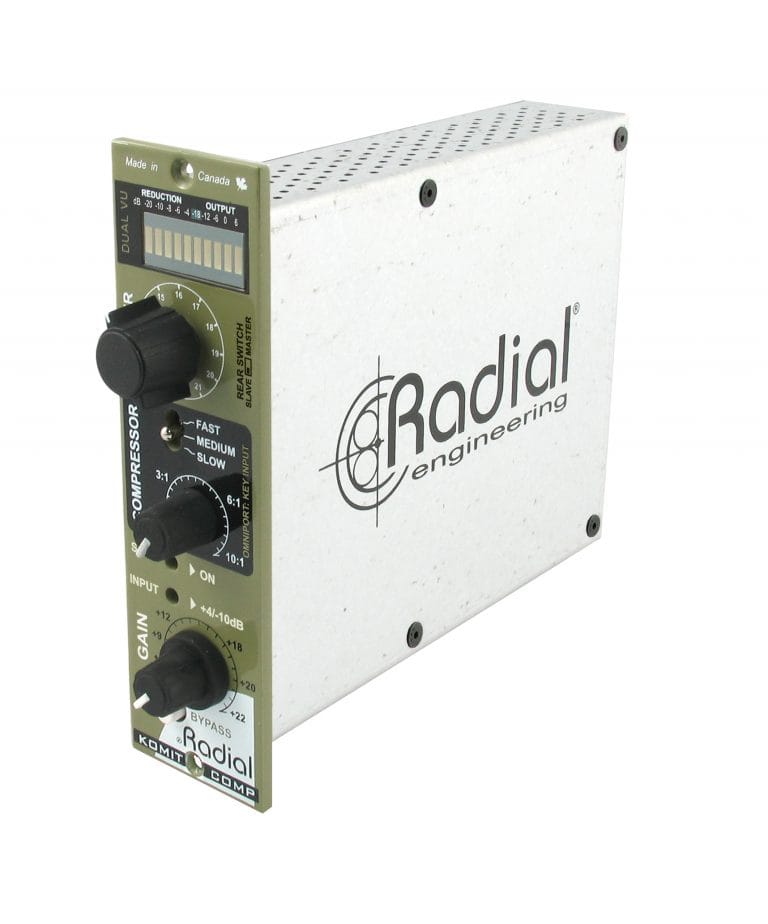

Komit Features

1
2
3
4
5
6
7
8
9

LED

10-segment LED is divided into two: the left side indicates compression while the right conveys the output level. Easy to read and fast, it provides instant visual feedback of signal status.

1

Limiter

12 position dial lets you choose between brick-wall limiter, bypass and the Clipper; an ‘old school diode-bridge clipping circuit’ with 10 graduated settings that range from slight clipping toover-the-top distortion.

2

3-Speed VCA

Three settings with feed-forward auto-detection makes it easy to set the attack and release time constants. Slow for vocals, medium for instruments and fast for percussion.

3

Compressor

State of the art FlexKnee™ compression circuit dynamically transforms from soft to hard knee as it follows the compression ratio setting. Variable with up to 10:1 compression. Single dial control.

4

Sync

Sets up master-slave configuration sharing the same timeconstant for optimal stereo dynamic coupling while maintaining independentchannel compression.

5

Input

Lets you toggle the threshold between +4dB and -10dB to optimize the input range, making the Komit easy to interface with all types of program material.

6

Gain

Variable up to +22dB provides gain make-up when signals are compressed. Also used to drive theClipper hard’ for extra character.

7

On

Bypass switch lets you quickly compare the original pre-compressed signal to the settings you have selected on the Komit. Push in to turn on!

8

Omniport

Designated as a key input to allow external control over the compressor side chain. Available when used with the Workhorse.

9

Komit Resources

Part no: R700 0150 00
