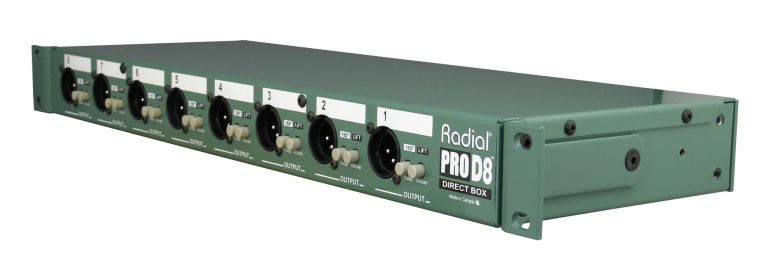

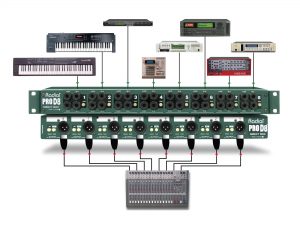

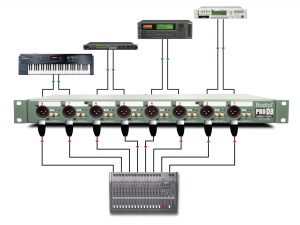

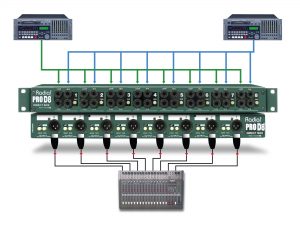

The Radial ProD8 is an 8 channel 19″ rack-mountable direct box designed for professional concert touring. The feature set has been optimized for keyboards but as with any direct box, it is certainly suitable for use with instruments or playback systems. The passive signal path incorporates a custom wound Eclipse ET-DB2 transformer and RF filtering that is able to withstand excessive signal levels without distortion while delivering a linear response across the audio spectrum.
Specifications
Block Diagram

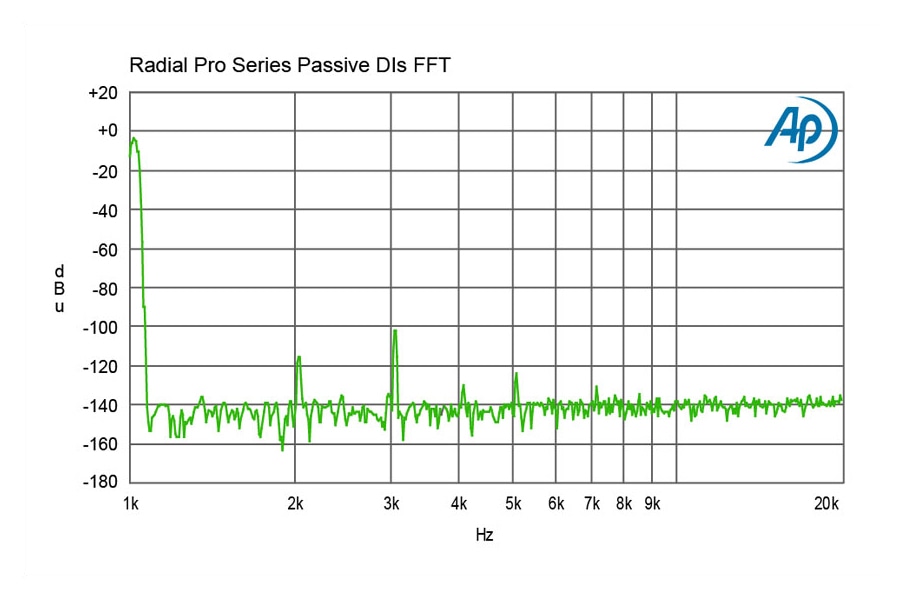

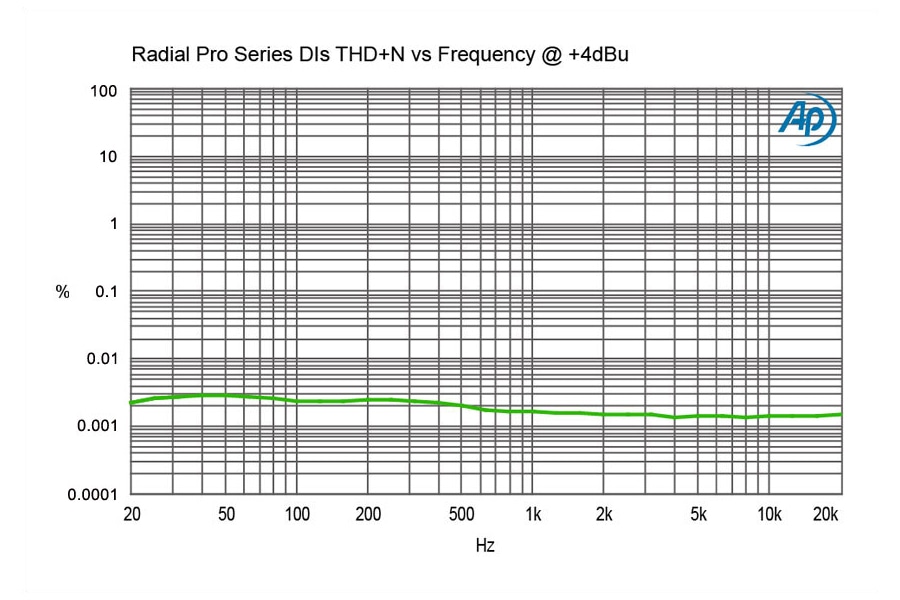

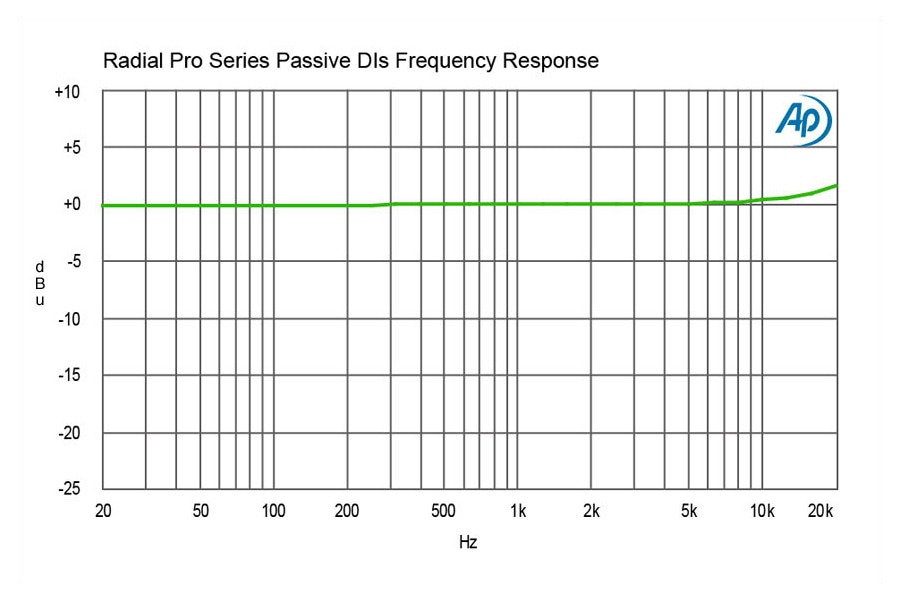

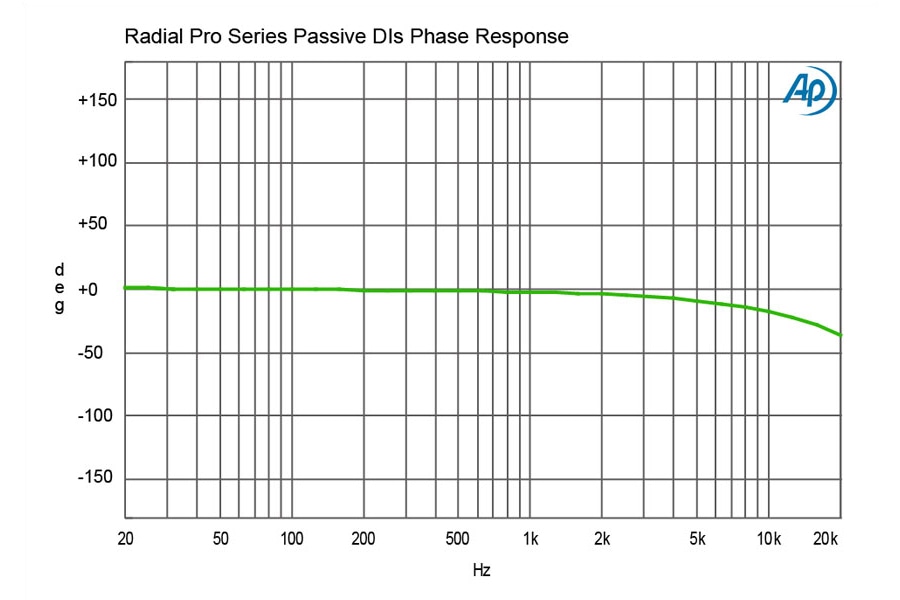

Graphs
| Specifications | ||
|---|---|---|
| Audio circuit type: | Passive, transformer based | |
| Transformer: | Eclipse ET-DB2, 12:1 ratio | |
| Number of channels: | 8 | |
| Frequency response: | 20Hz ~ 18.5KHz (± 0.2dB) | |
| Dynamic range: | 128dB | |
| Total harmonic distortion: | 0.01% from 20Hz~20kHz @-10dB | |
| Phase Deviation: | 1° @ 100Hz; 8° @ 20Hz | |
| Input Impedance: | 140k Ohms, unbalanced | |
| Output Impedance: | 150 Ohms, balanced | |
| Maximum Input: | +18dB @ 20Hz | |
| Features | ||
| Input pad, 180° polarity reverse, Ground lift | ||
| Input Connectors: | 1/4" | |
| Output Connectors: | XLR | |
| General | ||
| Construction: | 14 gauge steel chassis & outer shell | |
| Size (L x W x D): | 19" x 6.25" x 1.75" (48.3cm x 15.875cm x 4.45cm) | |
| Weight: | 7.2lb (3.26 kg) | |
| Shipping size (L x W x D): | 22" x 10.375" x 4.5" (55.9cm x 26.4cm x 11.4cm) | |
| Shipping weight: | 8.30lb (3.76 kg) | |
| Power: | Passive, no power required | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |
