The Radial ProRMP Reamp is a transformer coupled passive device designed to take a balanced line level signal and convert it so that it can drive the high input impedance of a guitar amplifier. As a passive device, it does not amplify the signal in any way. Critical to the performance is the frequency response and low distortion. The ProRMP is perfectly suited for Reamping and warming the balanced output of a wireless system.
Specifications

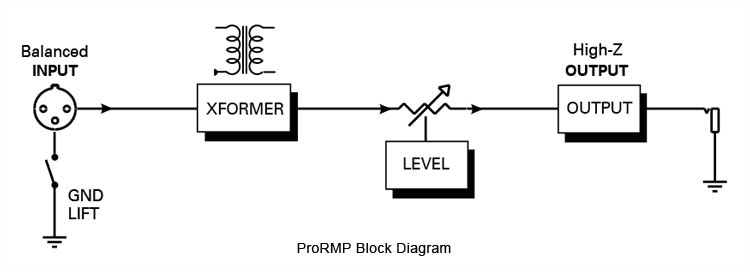

Block Diagram
Graphs
| Specifications | ||
|---|---|---|
| Audio circuit type: | Passive, transformer isolated | |
| Frequency response: | 20Hz ~ 20KHz (+0/-1dB) | |
| Dynamic range: | >137dB | |
| Gain: | >-10dB | |

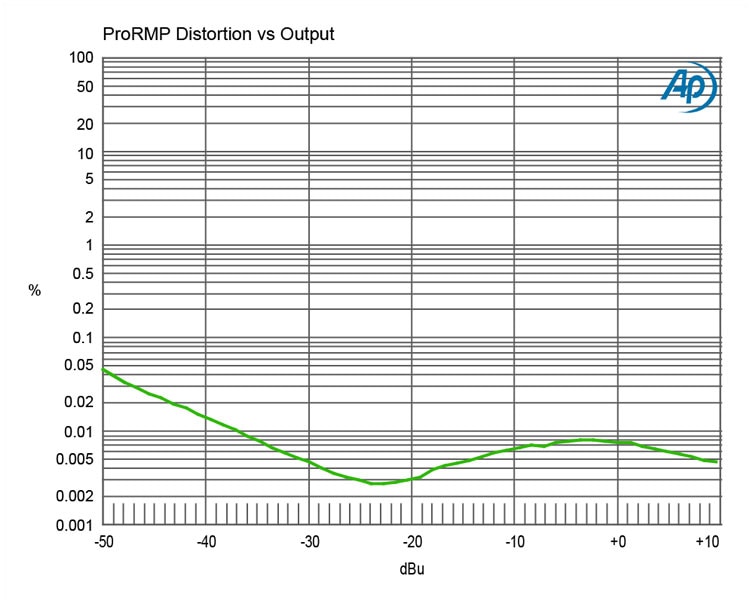

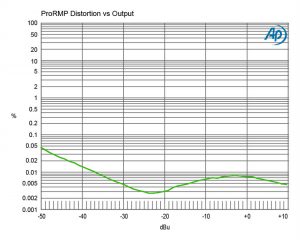

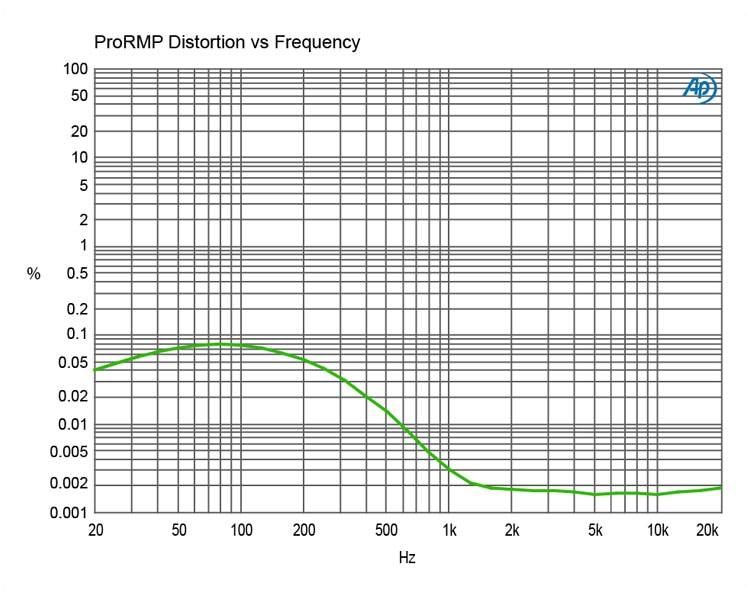

| Total harmonic distortion: | 0.003% | |

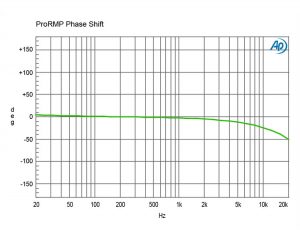

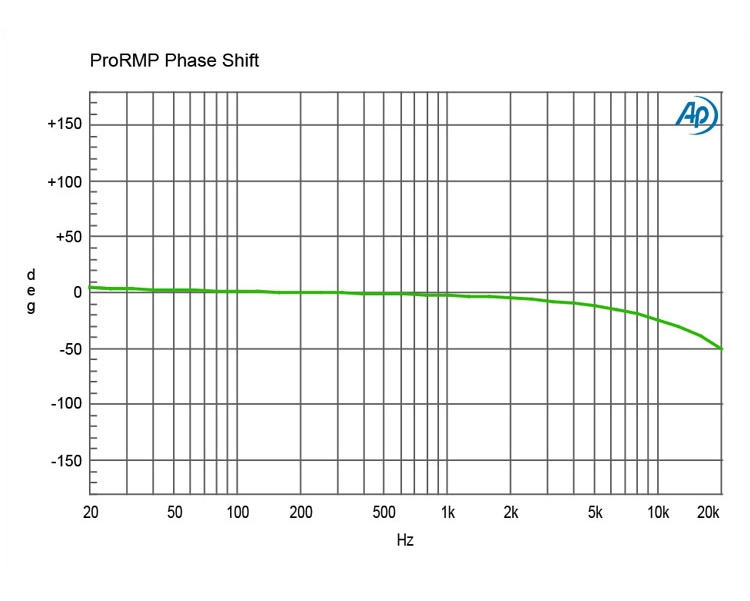

| Phase Deviation: | 0.3° @ 100Hz; 5° @ 20Hz | |
| Input Impedance: | 1600 Ohms | |
| Output Impedance: | 1850 Ohms | |
| Common Mode Rejection Ratio: | 100dB @ 60Hz (unbalanced source) | |
| Equivalent Input Noise: | >-98dBu Noise plus gain | |

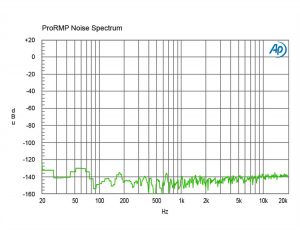

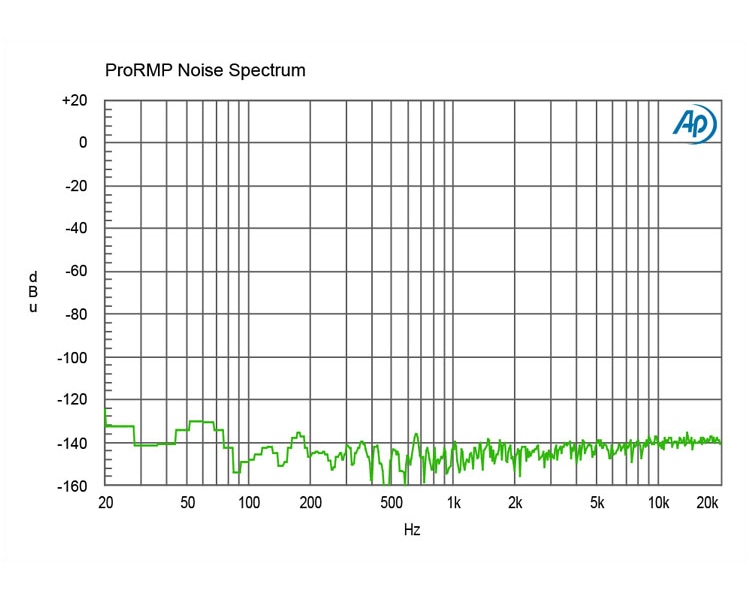

| Noise: | -111dBu | |
| Maximum Input: | >+26dBu | |
| Features | ||
| Input pad, 180° polarity reverse, Ground lift | ||
| Input Connectors: | XLR | |
| Output Connectors: | 1/4" | |
| General | ||
| Construction: | 14 gauge steel chassis and outer shell | |
| Size (L x W x D): | 3.3" x 5.0" x 2" (84 x 127 x 48mm) | |
| Weight: | 1.55 lbs (720 g) | |
| Power: | Passive, no power required | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |
Frequency Response
