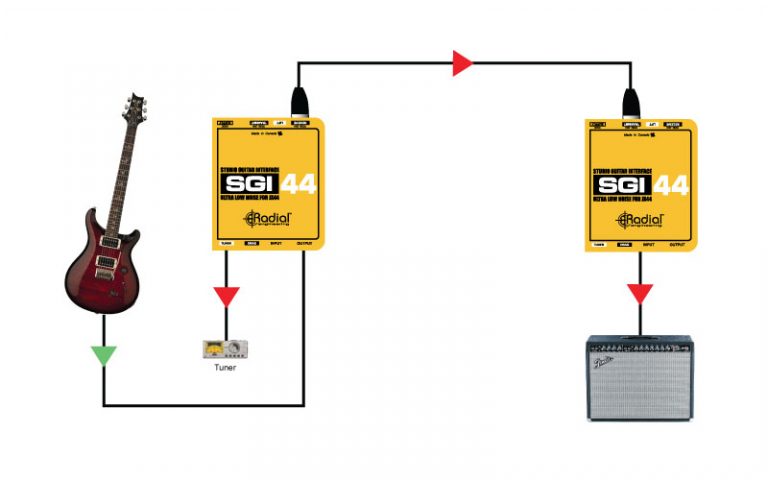

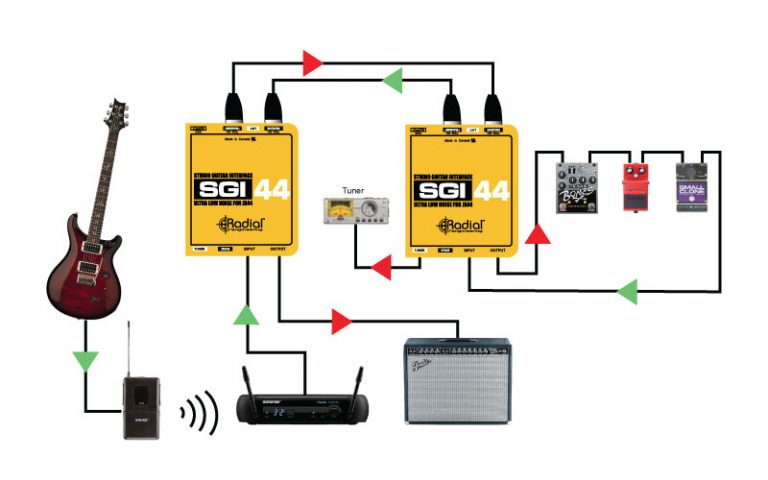

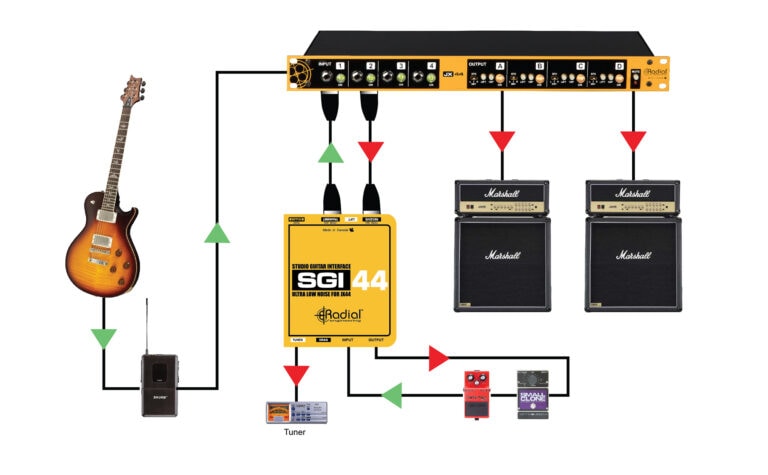

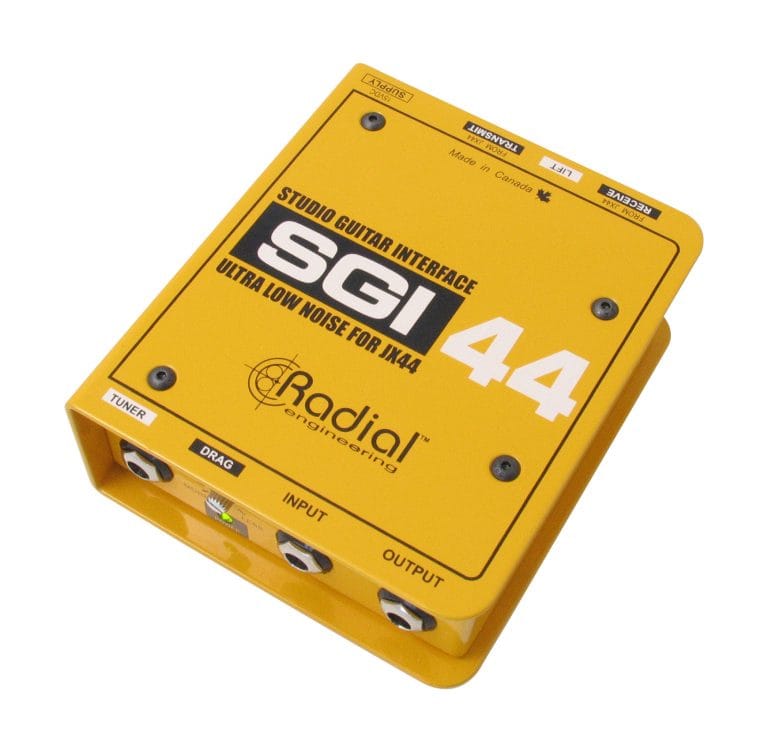

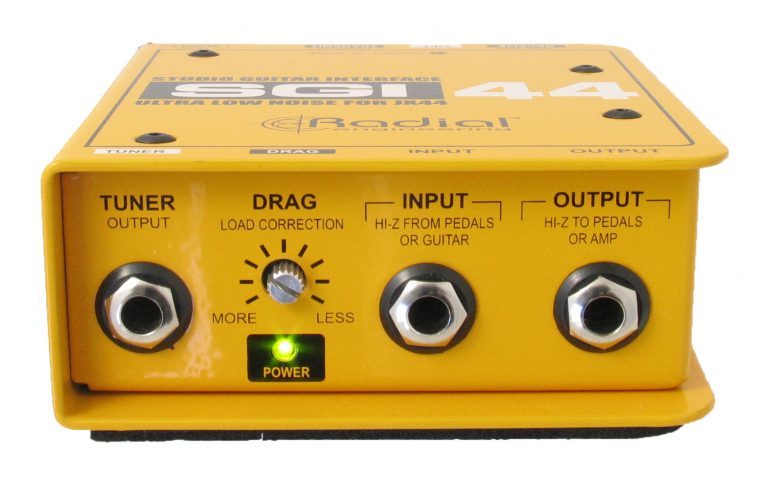

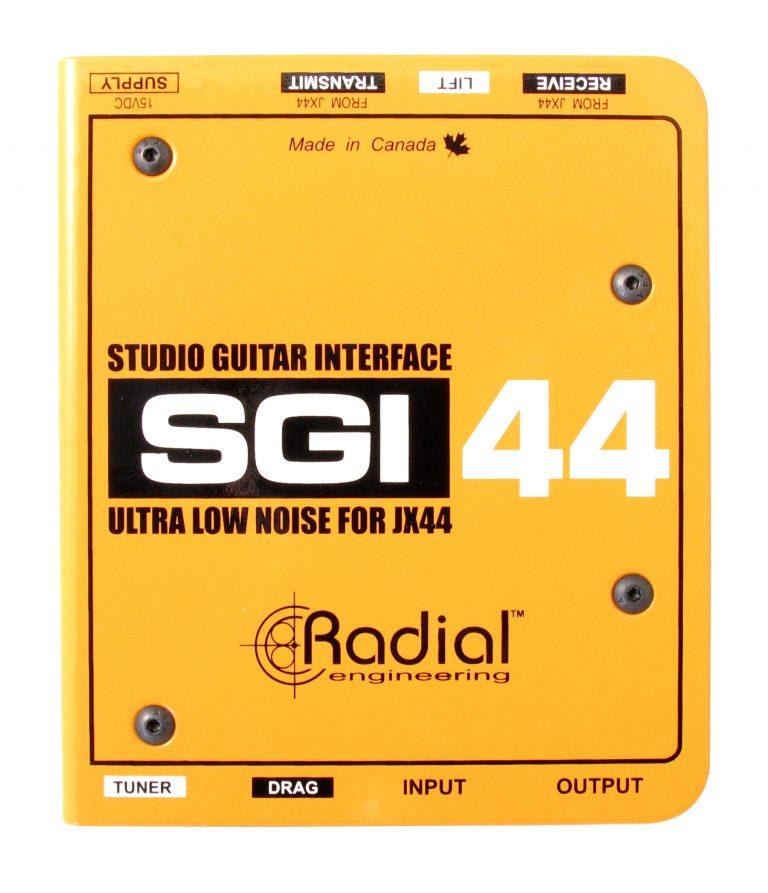

Tuner
Separately buffered 1/4” high impedance output for electronic tuner.
1
Drag
Lets you adjust the load on passive pickups for more realistic tone.
2
Power LED
Green LED indicator lets you know the power supply is connected.
3
Input
Green LED indicator lets you know the power supply is connected.
4
Output
1/4” jack sends the signal to your guitar amp or effects pedals.
5
1
2
3
4

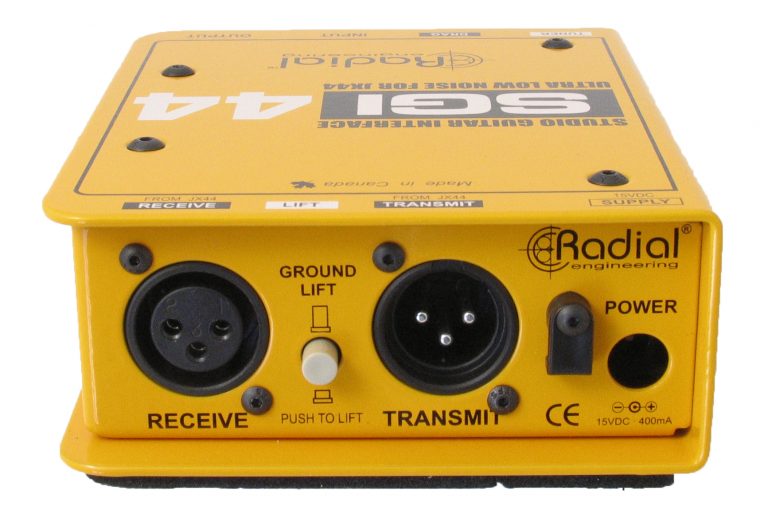

Receive
Female XLR accepts a proprietary balanced signal from the source SGI-44 transmit output.
1
Lift
Female XLR accepts a proprietary balanced signal from the source SGI-44 transmit output.
2
Transmit
Male XLR sends a proprietary balanced signal to a second SGI-44 receive input.
3
Power
Male XLR sends a proprietary balanced signal to a second SGI-44 receive input.
4
