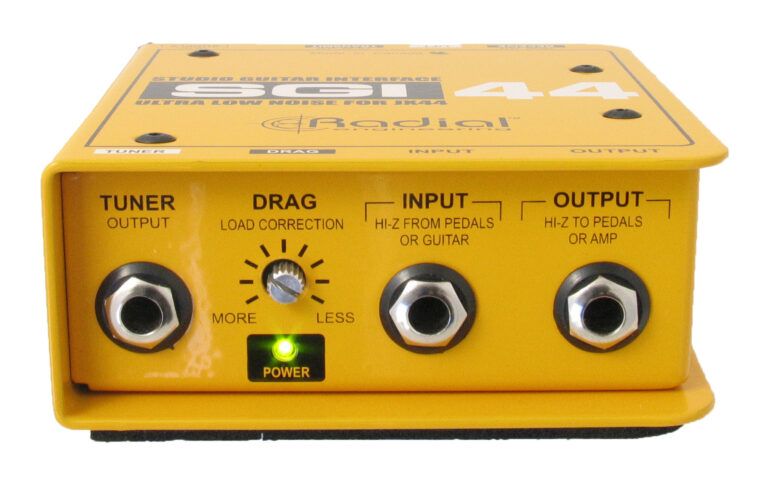

SGI-44 Specifications

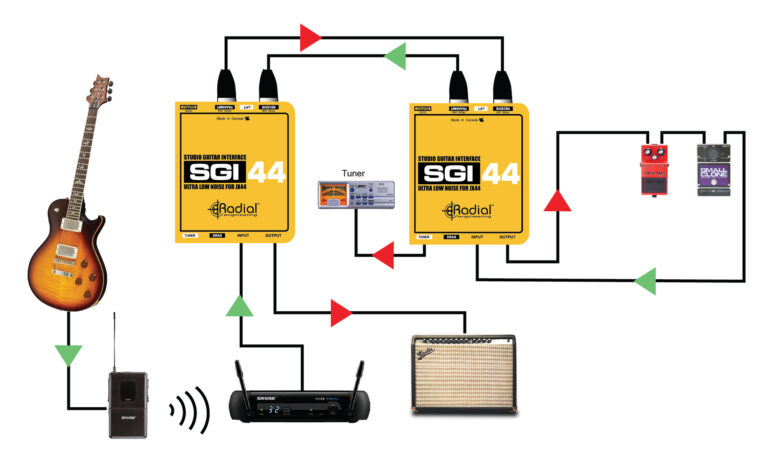

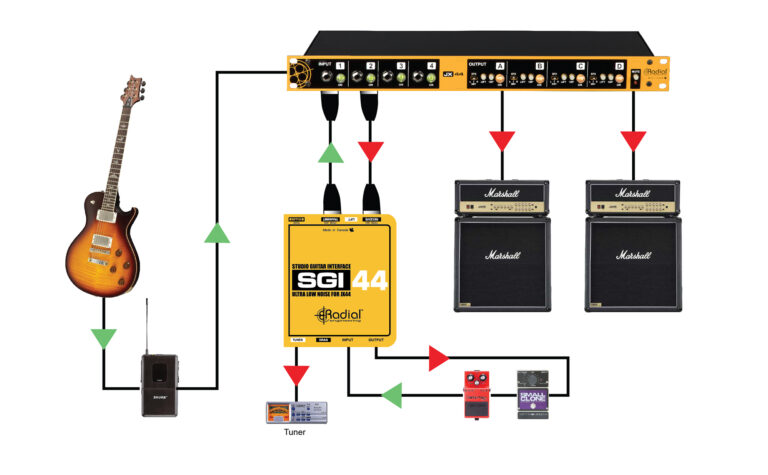

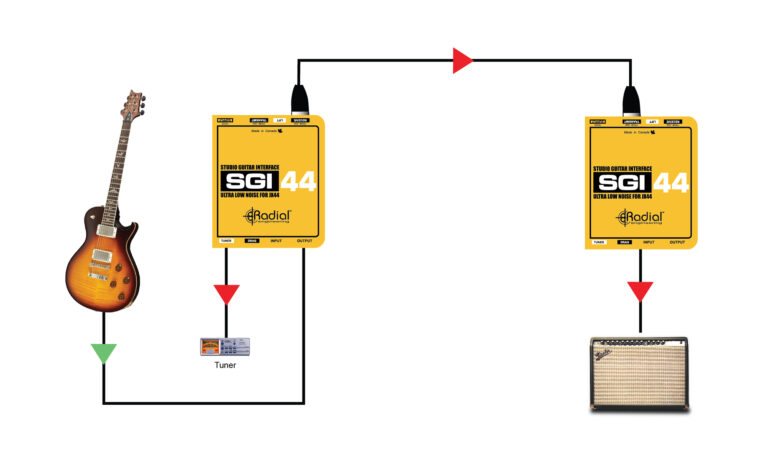

When used in combination with the JX44 the optional SGI-44 can either be used as a bi-directional long haul effects loop or as a single ended driver from a guitar to the JX44 and your amps. Balanced audio connections between the JX44 and SGI-44 allow distances up to 100 meters (300 feet) using standard XLR mic cable. This is accomplished using a proprietary hybrid active drive circuit with Jensen transformer isolation to transfer the signal between units without introducing noise or signal loss.

Specifications
Audio circuit type: Active 100% discrete class-A with transformer isolation
Frequency response: 20Hz ~ 20kHz (-2dB)
Dynamic range: 105dB

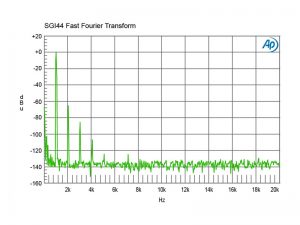

Total harmonic distortion: 0.005% @ 1k

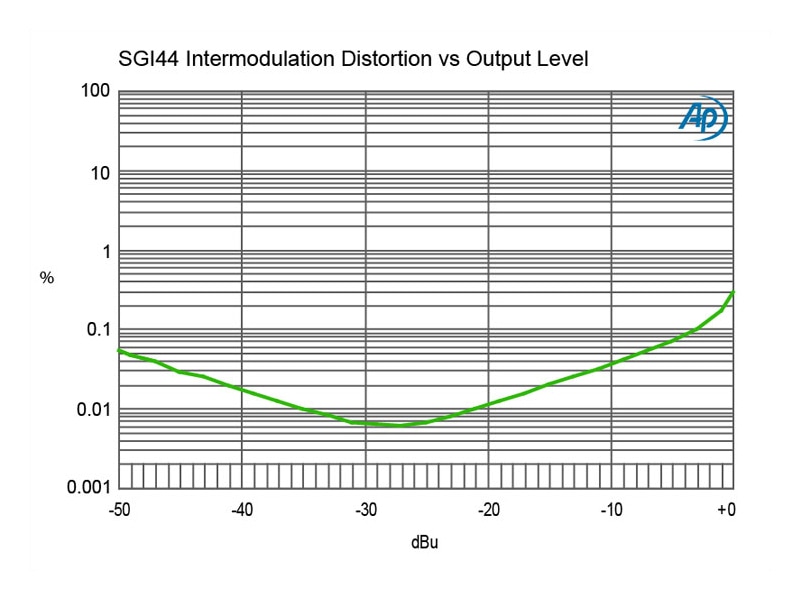

Intermodulation Distortion: 0.02% @ 1k
Input Impedance: Variable from 10k Ohms ~ 1 megaOhm
Output Impedance: 218 Ohms (¼" unbal. output); 280 Ohms (TX bal. output)
Noise: -100dBu
Maximum Input: +2dBu
Features

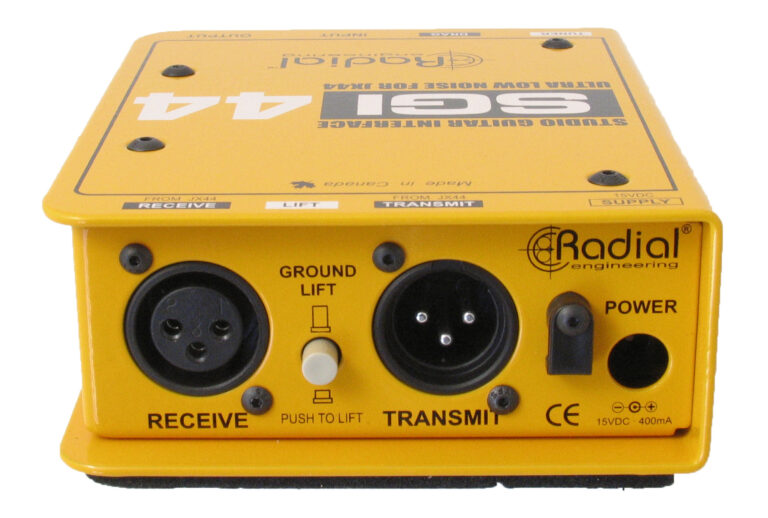

Ground lift, Drag Control
Input Connectors: 1/4", XLR
Output Connectors: 1/4", XLR
General
Construction: 14-gauge steel chassis & outer shell
Size (L x W x D): 4.25" x 2" x 5" (102 x 76 x 165mm)
Weight: 3lbs. (1.36kg)
Shipping size (L x W x D): 5.25" x 2.5" x 11" ( 127 x 64 x 279mm)
Shipping weight: 3.1lbs (1.41kg)
Power: +15VDC/400mA adapter included
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable

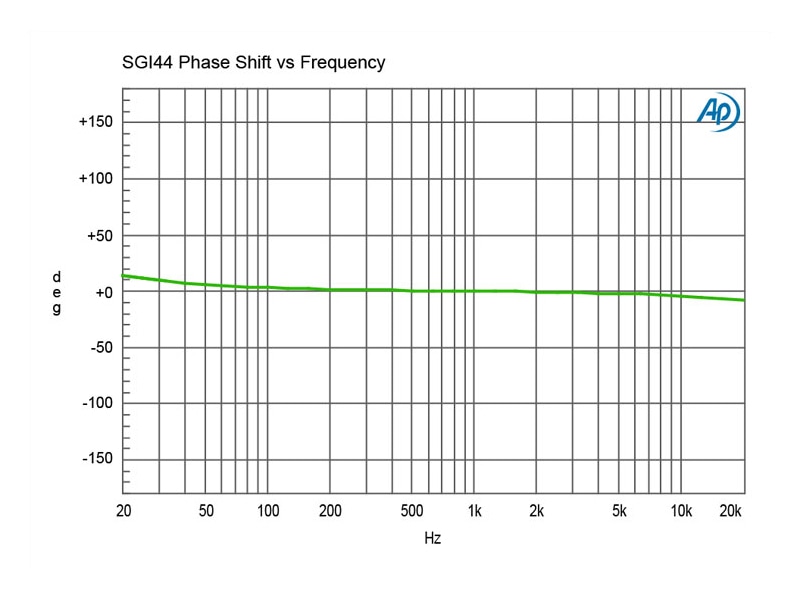

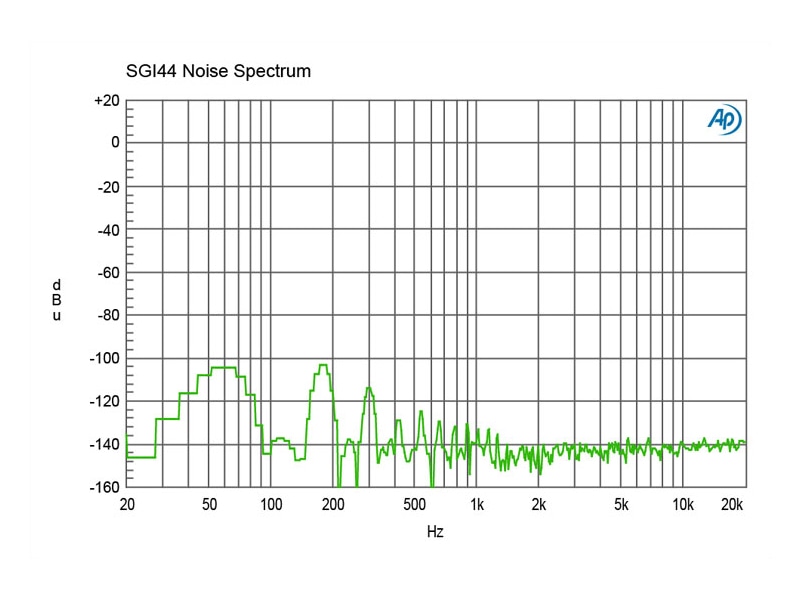

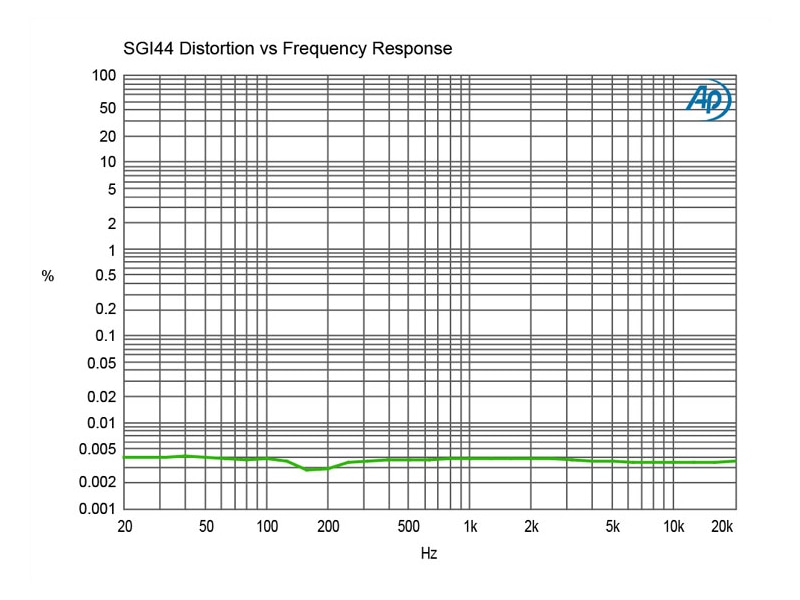

Frequency Response

What do these graphs mean? Learn what to look for and why it matters.

Learn More

SGI-44 Resources

Part no: R800 6700 00
