Bassbone OD Features

1
2
3
4
5
6
7
8
9
10

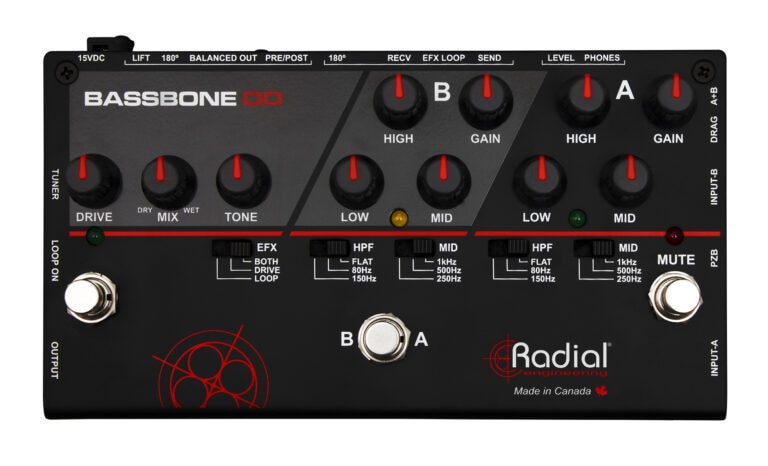

Drive

Used to set the desired level of overdrive distortion that will be applied to the signal.

1

Mix

Sets the relative ‘dry-wet’ mix between the original bass tone and the amount of distortion.

2

Tone

Used to tame down overly bright effects or add harmonic content.

3

Footswitch Assign

Sets the footswitch function to activate the overdrive, effects loop or both.

4

HPF

High pass filter used to roll off excessive resonance and clean up signal.

5

AB

Footswitch used to toggle between Channel-A and Channel-B.

6

Channel-B

EQ and Gain for Channel-B

7

Channel-A

EQ and Gain for Channel-A

8

Mid Switch

Works with mid range to selects between 250Hz, 500hz and 1kHz.

9

Mute

Footswitch mutes all outputs except the tuner out for quiet on-stage tuning.

10
1
2
3
4
5
6
7
8
9

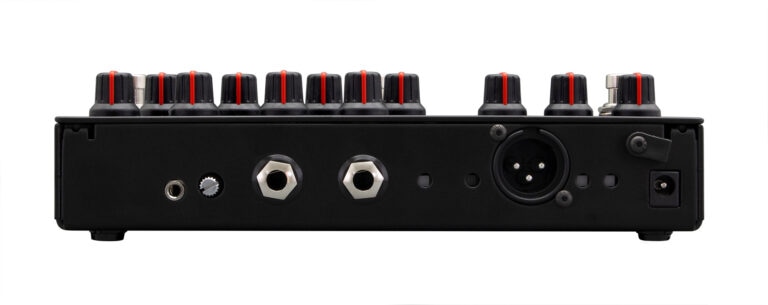

Phones

3.5mm TRS mono headphone output with level control.

1

Level

Used to adjust the volume for the phones output.

2

EFX Loop

Used to adjust the volume for the phones output.

3

Loop Polarity

Used to reverse the polarity of the effects loop should a pedal reverse the phase.

4

Pre-Post

Routes the balanced output before (pre) or after (post) the effects loop and overdrive.

5

Balanced Out

Built-in active Radial DI to feed the PA or recording system.

6

180°

Reverses the polarity of the XLR out to phase align sound with PA or reduce feedback.

7

Lift

Lifts pin-1 on the XLR to help eliminate hum and buzz caused by ground loops.

8

Power

15VDC Power supply input connector.

9
1
2
3
4
5

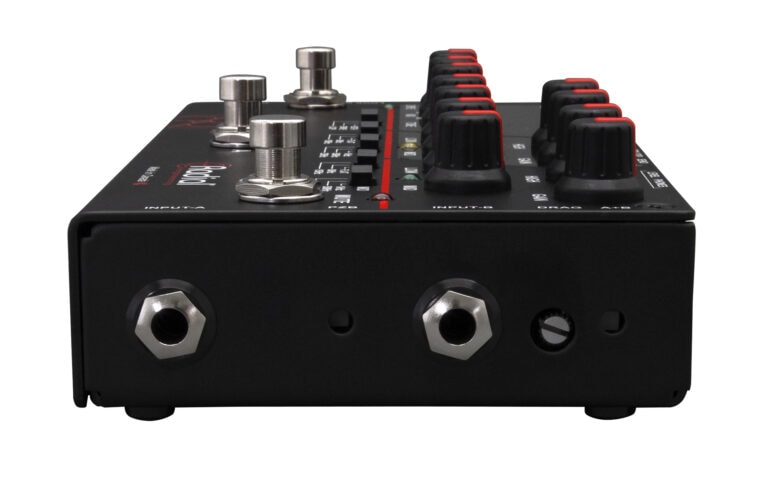

Input-A

Power supply input connector.

1

PZB

Boosts the signal and increases the impedance of input-A to 10 meg-ohms for piezo instruments.

2

Input-B

Instrument input with ¼” switching jack. Enables the bass connected to input-A to feed channel-B when not in use.

3

Drag

Adjusts the load on a magnetic pickup for a more natural sound.

4

Blend

Combines the two inputs so that they may be mixed together.

5
1
2
3

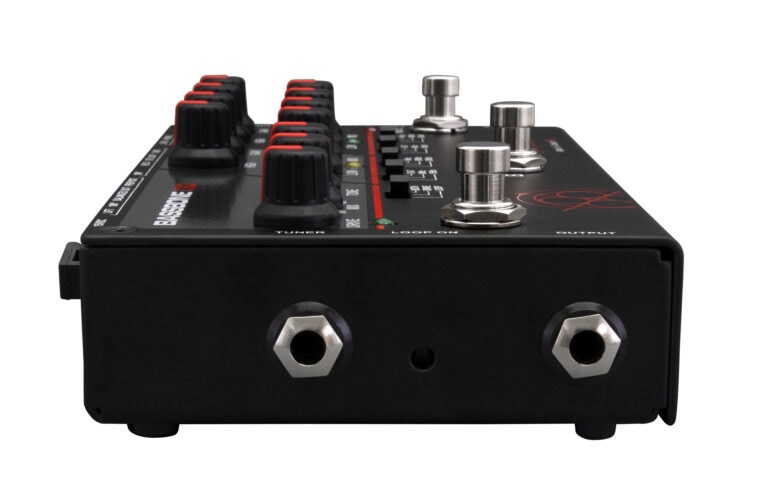

Tuner

Separately buffered, dedicated tuner output is always onsignal.

1

Loop On

Bypasses footswitch select function to keep effects loop in circuit at all times.

2

Output

¼” bass amp output used to feed the artist’s personal stage amplifier

3

Bassbone OD Resources

Part no: R800 7072 00
