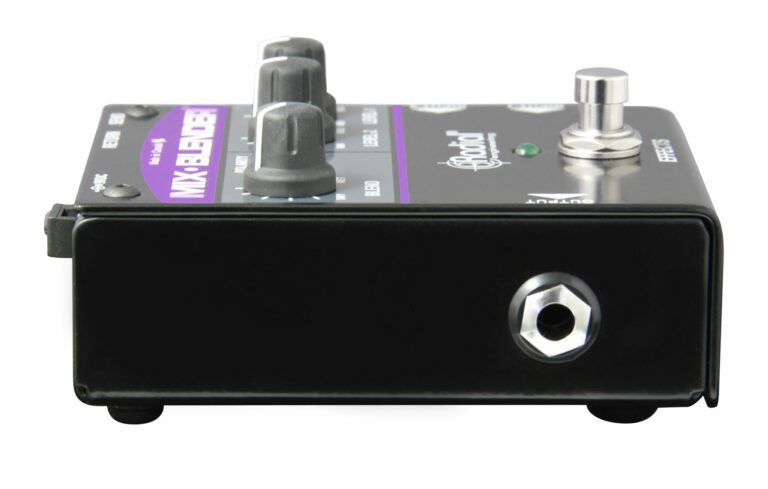

Standard ¼” guitar level output used to feed a stage amp or other pedals.
Wet-Dry blend control lets you blend in as much of the effects as you like into the signal path.
Toggles the effects Sends relative phase by 180⁰ to compensate for pedals that may be out of phase with the dry signal path.
Heavy-duty footswitch activates the Mix-Blender’s effects loop.
Super bright full-size LED indicator is easy to see on dark stages.
Level 1 & 2
Used to adjust the relative levels between the two instruments.

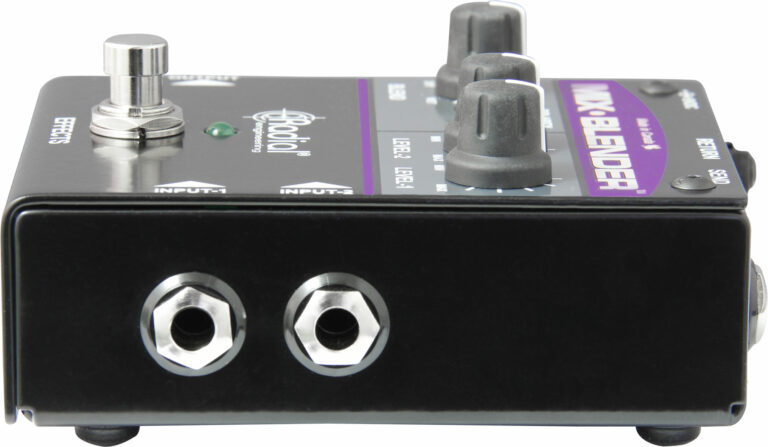

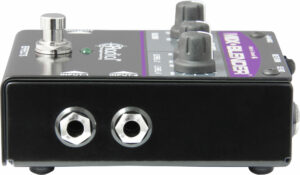

Input 1 & 2
Standard ¼” guitar inputs for two instruments or effects.

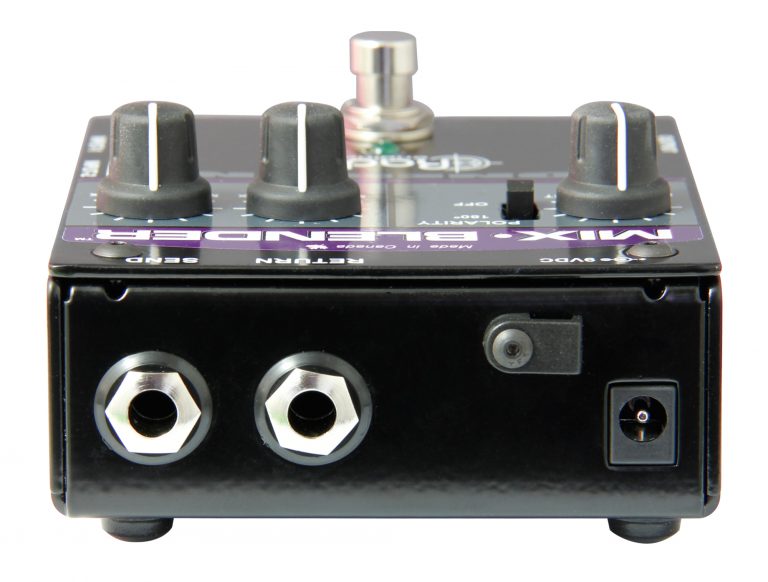

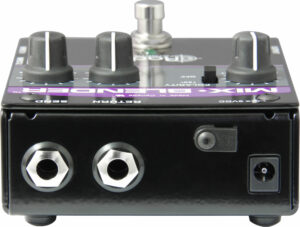

¼” jack is used to feed the effects pedal chain or a tuner.
¼” jack brings the effects pedals back into the Mix-Blender.
Used to retain the power supply cable and eliminate accidental disconnect.
Typical 9V power supply connection used to power the Mix-Blender from an optional supply or power brick.
