PowerStrip Features

1
2
3
4

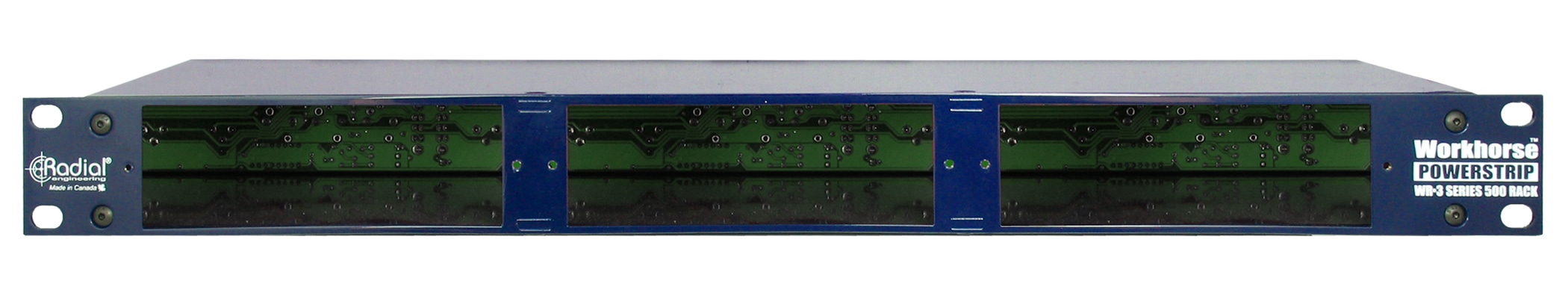

3 Space Power Rack

Lets you fit in any three 500 series modules. Backwards compatible with older API modules.

1

14-Gauge Steel

Heavy duty construction for added durability and improved shielding.

2

EDAC 15 Pin

Dual sided gold contacts to ensure connectivity. Employs original API spec to ensure compatibility.

3

Slide In Tray

Makes it much easier to align modules when swapping in and out.

4
1
2
3
4
5
6

Power Supply

External supply provides nearly 600 milliamps of current to the three modules.

1

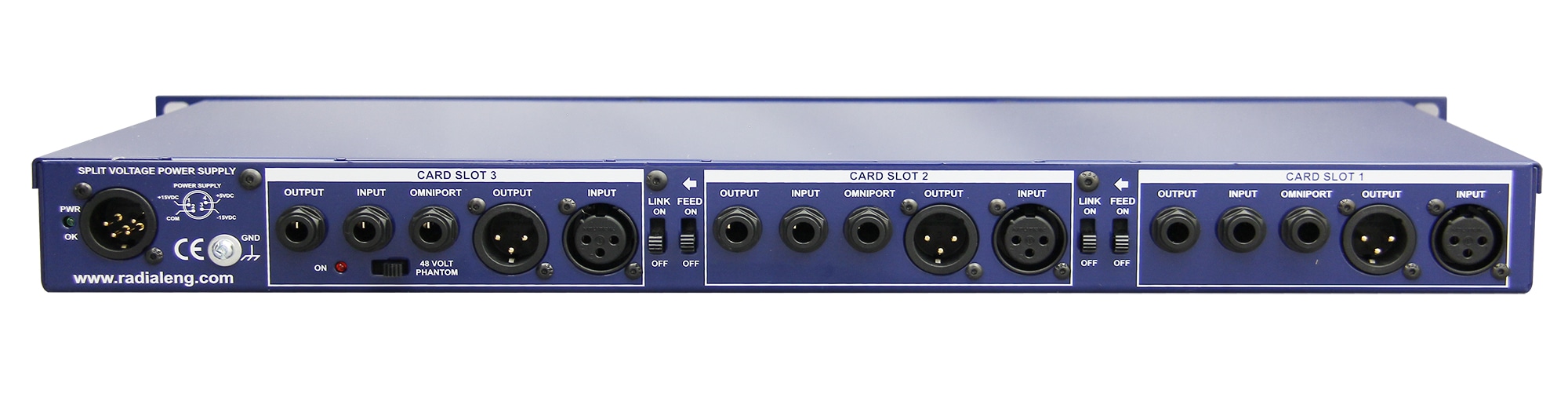

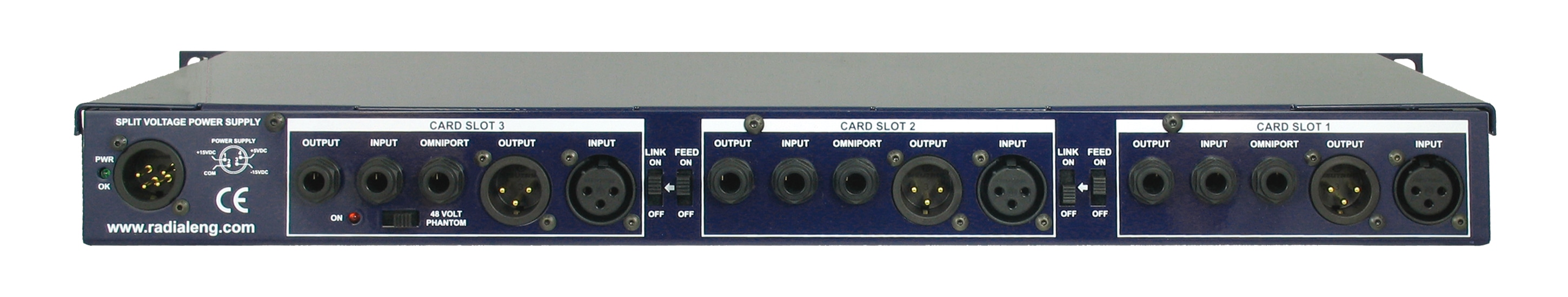

Rear Panel

Full complement of connectors for series and parallel signal processing.

2

Link Switch

Used to stereo link two modules when formatted for stereo use.

3

Male & Female XLRs

Used to connect signal to and from each of the three modules.

4

Feed Switch

Sends the output from one module into the next without requiring a cable.

5

Omniport

Works with Radial modules and others to provide extra functionality.

6

PowerStrip Resources

Part no: R700 0105 00
