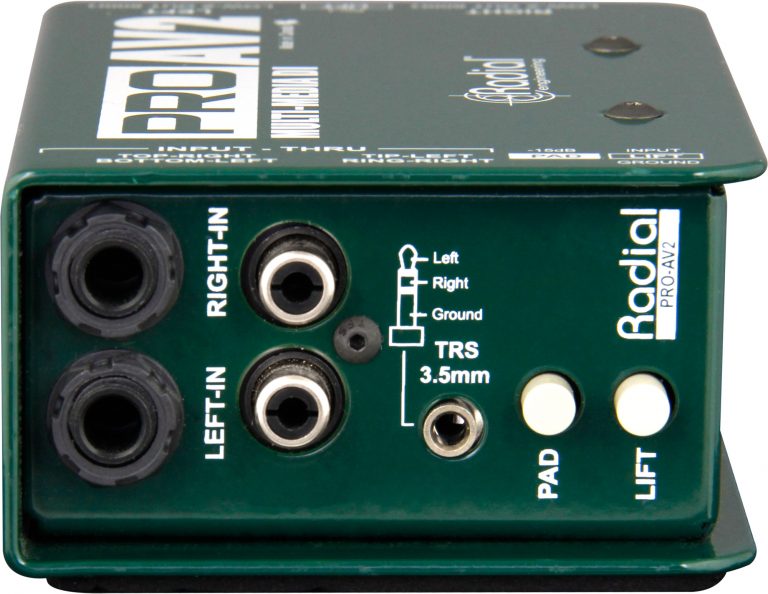

1/4" Input
Instrument input connection to the ProAV2.
1
RCA Input
Stereo input can be used with CD players, tape decks, VCRs, etc. A second set of RCA jacks can be used as a thru-put.
2
3.5mm TRS
-10dB stereo input connects PC sound cards and headphone jacks.
3
-10dB Pad
Reduces input level from high output devices like CD players and headphone outputs.
4
Ground Lift
Disconnects the ground path at the input.
5
1
2

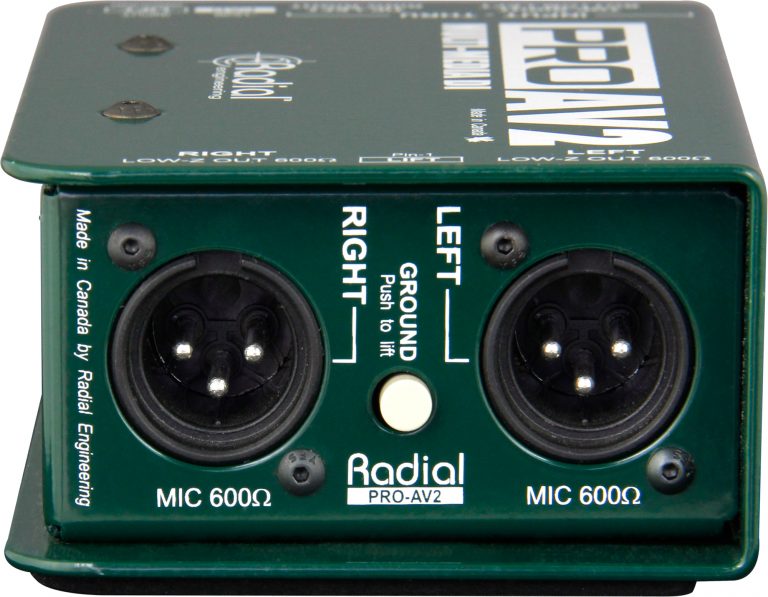

XLR Output
Balanced 600Ω mic level output, feeds mixer or mic preamp.
1
Ground Lift
Disconnects the ground path at the XLR output.
2
