If you don't see the question you had in mind here, feel free to enter in the form provided along with your email address so we may send the reply directly to you. Thanks for your participation!
Can I use the SAT-2 with speaker level signals?
No, the SAT-2 is designed to work with line level signals only, as speaker levels will damage the circuitry inside the unit.
Will I damage the SAT-2 if I send phantom power to it?
No, the SAT-2 features blocking capacitors on the XLR outputs that prevent phantom power from damaging the unit or passing through to your source device.

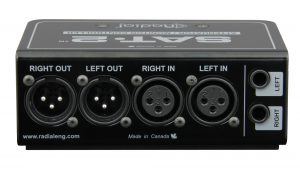

Can I use the 1/4″ inputs at the same time as the XLR inputs?
We recommend using only one connector type at a time for each channel.
Can I use the SAT-2 to output to a pair of unbalanced inputs?
Yes, you can connect the SAT-2 outputs to unbalanced inputs using an adaptor cable. Start with the volume turned down low, as you can easily overload some consumer-level input devices.
Will the SAT-2 color the sound in any way?
The SAT-2 is designed to be completely transparent, with no transformers or ICs that might color the audio signal.
Can I use the SAT-2 to convert a signal from unbalanced to balanced?
No, the SAT-2 doesn’t have balancing circuitry or transformers. You can connect an unbalanced input to the SAT-2, but keep in mind that the output will also be unbalanced and you may experience signal loss if you use cables longer than 20ft (6m) in length.

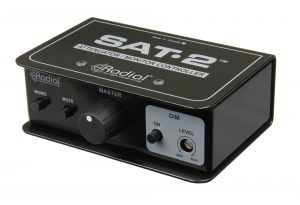

Can I use a single mono input with the SAT-2?
Yes, you can use the SAT-2 to attenuate just the left or right channel. You can also use it to split a mono signal to two destinations; just hit the mono switch and your signal will be present on both the left and right outputs.
