Indicates the SGI-TX is active when power supply is connected.

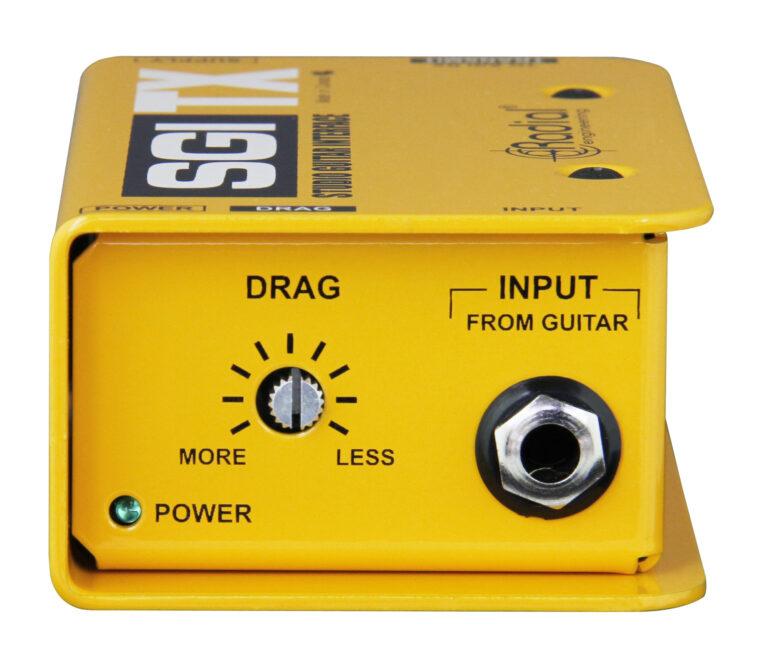

Load correction allows you to dial-in the proper load for your pickups.
1/4" jack used to connect the instrument

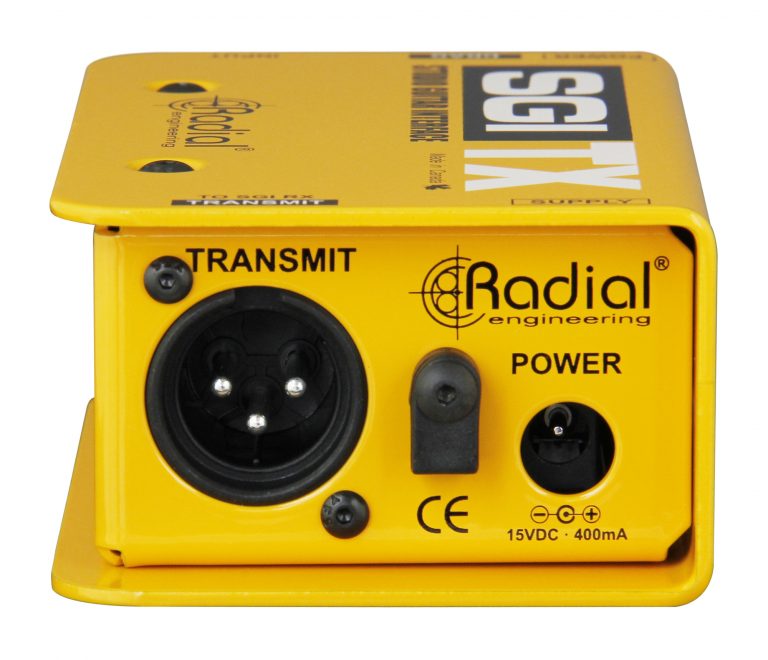

Transmits balanced signal to the SGI-RX recieve module via standard XLR cable.
Connection for included 15VDC power supply

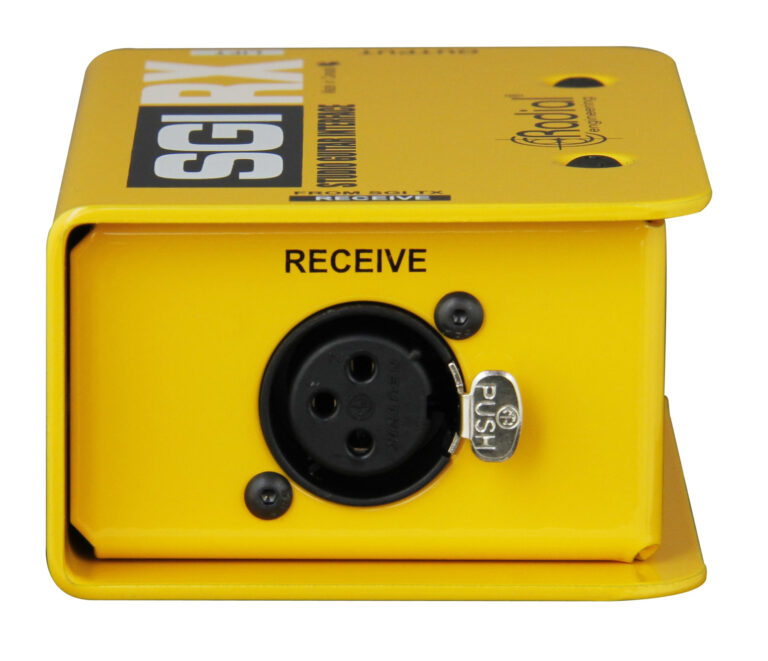

Receives balanced signal from the SGI-TX module using standard XLR cable.
1/4" jack outputs guitar signal to the amplifier.
Reduces ground loop hum by disconnecting the ground path from pin-1 on the XLR jack.
