JDI Features

1
2
3
4

-15dB PAD

Reduces the input sensitivity for active basses and high output keyboards.

1

Merge

Turns the input & thru jacks into a passive mixer to sum stereo signals to mono.

2

Input

1/4" input jack for instrument and line-level sources.

3

Thru

1/4" thru-put jack passes instrument's signal to stage amp. Converts to an input when "Merge" function is engaged.

4
1
2
3
4

XLR Out

Balanced 150Ω mic-level output wired to the AES standard with pin-1 ground and pin-2 hot.

1

180°

Polarity reverse used to correct the phase on old gear and reduce feedback on stage.

2

Ground

Disconnects pin-1 at XLR output to reduce hum and buzz caused by ground loops

3

Speaker

Inserts a -30dB pad and speaker emulation filter that allows the JDI to be connected in parallel with a speaker cab

4
1
2
3
4

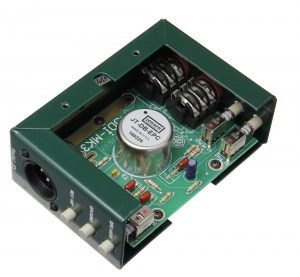

Jensen Transformer

Nickel core for the best signal transfer and MuMETAL® shield for protection against EMI.

1

14-Gauge Steel

I-Beam construction prevents circuit board from torque which could lead to part failure.

2

MIL-Spec PCB

Full ground plane for noise-free performance, double sided for durability.

3

Metal Switches

Rated at over 20,000 cycles for added durability and years of use.

4
