Elevator

Multi-Level Booster

Variable Clean Boost with Impedance Control

The Elevatorâ„¢ is a unique boost pedal with a high level of customization to match your playing style with any guitar, amplifier or pedal chain.

  • Delivers up to 18dB of ultra-clean power boost
  • 100% discrete, class-A audio circuit
  • Drag control load correction for natural tone
  • Switchable midrange boost for greater sustain

The last boost pedal you'll ever need

The Elevator doesn't just provide a clean boost, it also features a host of useful controls that provide the ability to customize your tone. Drag Control load correction on the input helps retain the natural tone of the instrument, and replicates the feeling of being connected directly to a guitar amp. When the boost switch is not engaged, the pedal can be set to true-bypass for tone purists, or a pre-boost gain stage can be activated to drive the front end of your amp harder, reserving the main boost function for soloing. The Elevator delivers 18dB of clean boost with incredibly low distortion and phase deviation, and a mid-boost switch can be simultaneously activated for added sustain.

Elevator Applications

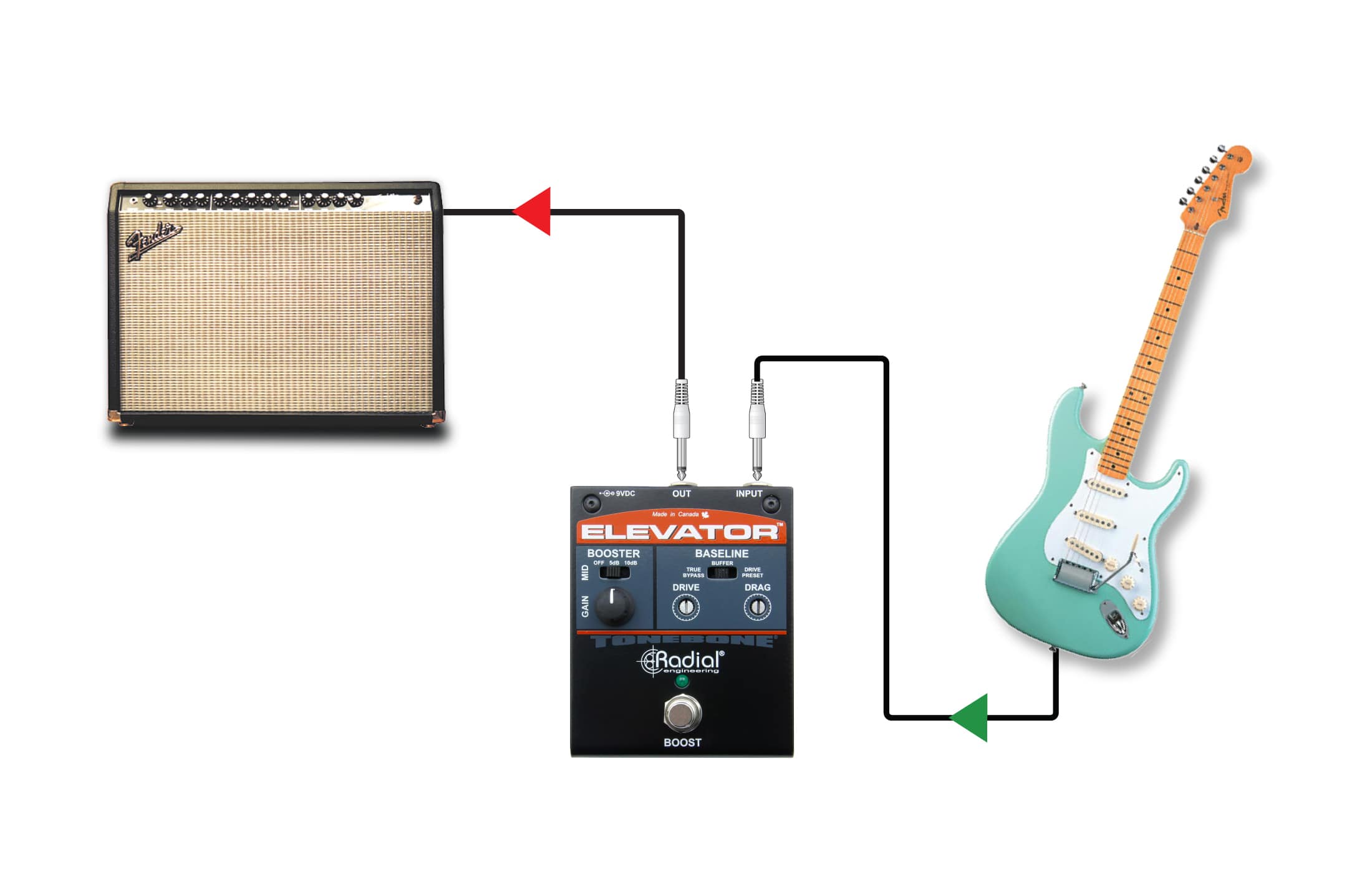

Using the Elevator with a vintage amp

Set the Elevator's baseline drive with a bit of extra boost to drive the front end of your vintage amp for more harmonics and bite. Hit your amp hard with the booster with mids for soloing.

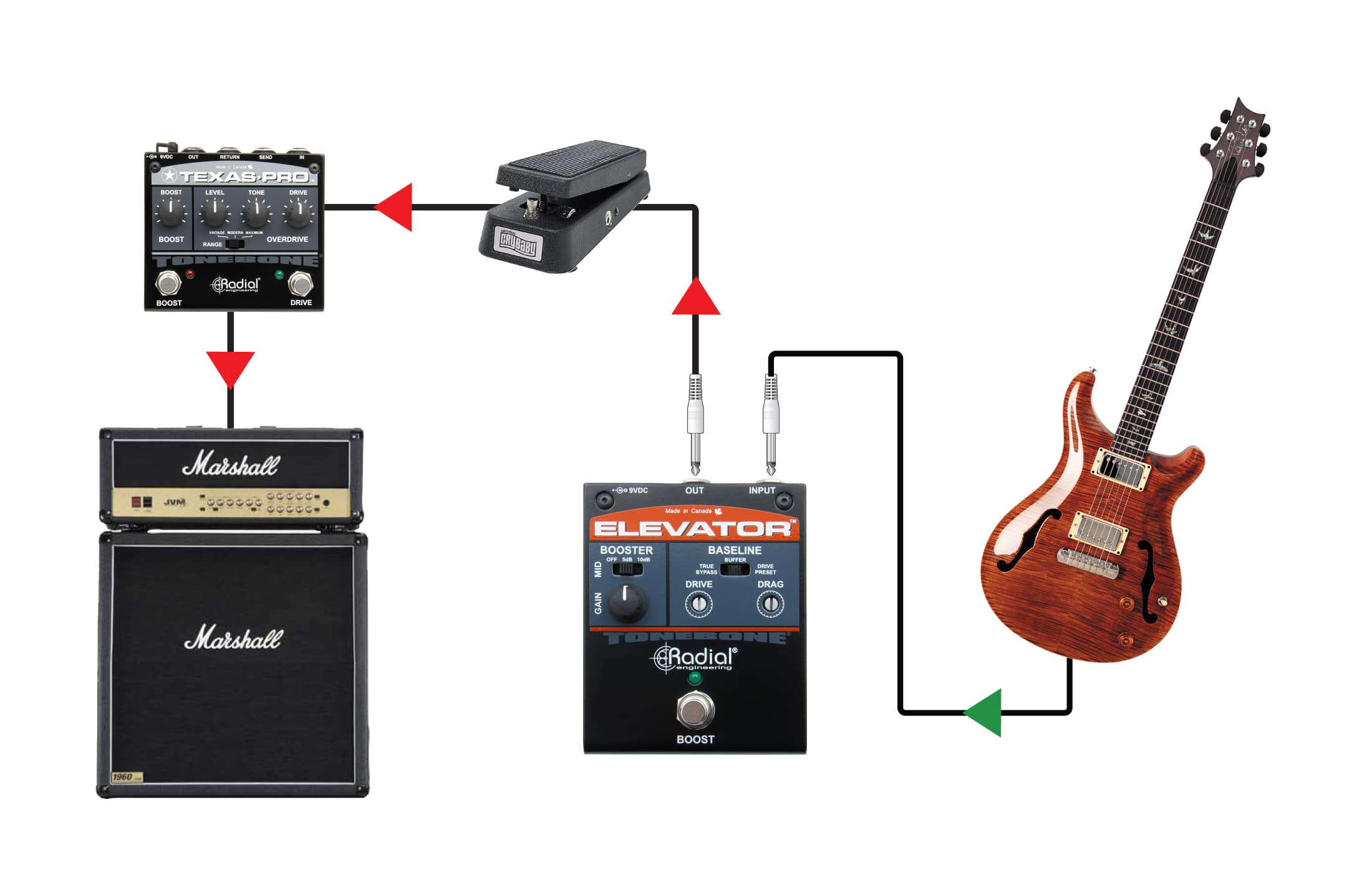

Using the Elevator with pedals

Set your overdrive pedal to your favorite crunch tone and then use the Elevator to hit it harder for more drive. Add mid range or combine with a wah set half-way to approach Bryan May's unique tone.

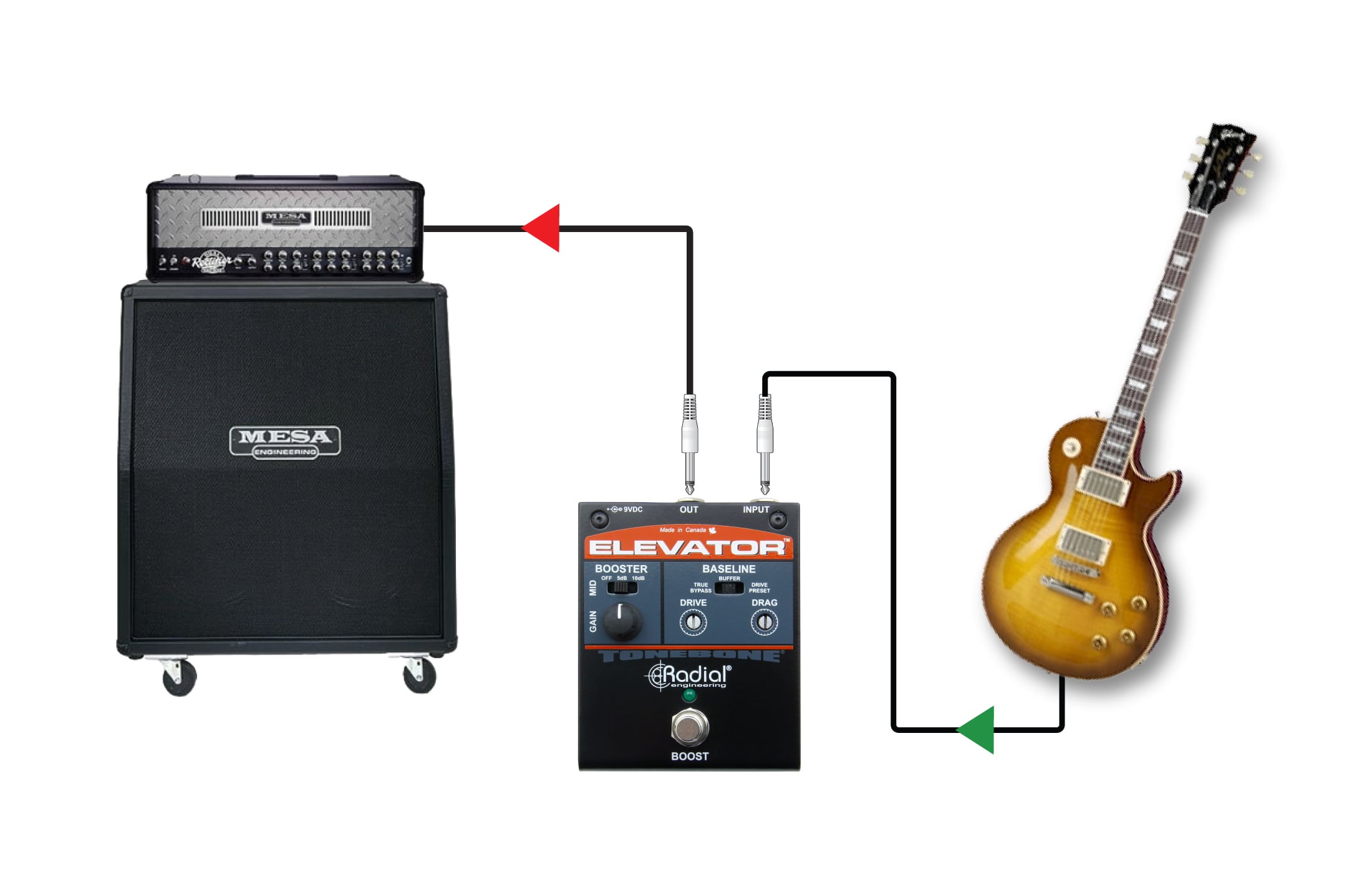

Using the Elevator with a high-gain amp

Set your amp with distortion and then add sustain and controlled feedback by using the Elevator's power booster and extra mid boost when you need it. The clean boost will retain better note clarity.

Videos

  • Now Playing
    Booster/Buffer for your pedal board | Pete Thorn
  • Now Playing
    Radial Engineering, Peter Janis explains the Elevator multi-level booster
  • Now Playing
    Brian Paulson and Peter Janis demonstrate the Radial Elevator
  • Now Playing
    Michael Thompson Tests out the Radial Elevator

Reviews

Artists

Elevator Resources

Part no: R800 7225 00
