Bassbone V2 Features

1
2
3
4
5
6
7
8
9
10

Boost

Controls the amount of signal boost from unity-gain to +8dB.

1

Boost Footswitch

Activates power booster or the mute function. Large, easy to see LED indicator.

2

Loop Wet/Dry

Rotary control lets you mix the original ‘dry’ bass sound with the ‘wet’ effects loop.

3

Loop Assign

Three position switch used to assign the effects loop to one or both channels.

4

3 Band EQ

Passive interactive EQ on channel-2 lets you carve your tone to suit any playing style or instrument.

5

HPF-2

High pass filter on channel-2 rolls-off excessive low frequency resonance and cleans up signal. Choose between 80Hz, 150Hz and off.

6

Loop Footswitch

Turns the effects loop on and off.

7

EQ-1

Three position switch selects between flat and two preset EQ contour curves on channel-1.

8

Level-1 and Level-2

Adjusts instrument level for each channel.

9

Select Footswitch

Selects between channels when used with one bass. Selects between instruments when used with two basses.

10
1
2
3
4
5
6
7

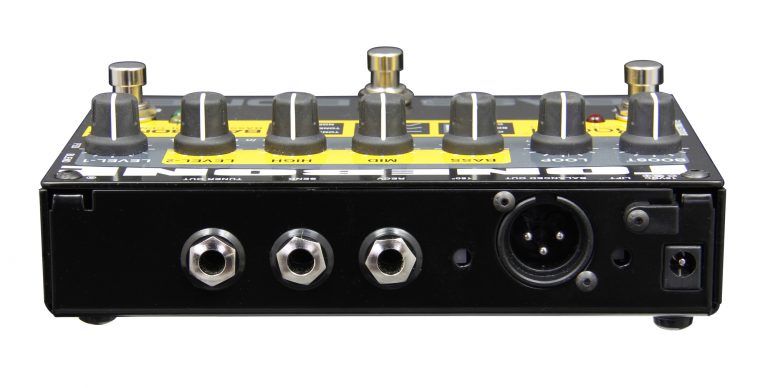

Tuner Out

Always on for tuning on the fly or used in conjunction with the mute footswitch for silent tuning.

1

Send & Recv

Send and receive ¼” jacks for the effects loop.

2

180° (XLR)

Recessed switch reverses pins-2 and 3 at the balanced XLR output to phase align sound with PA or to reduce feedback.

3

Balanced Out

Direct XLR output sends the 'post-EQ' Bassbone sound to the PA or recording console.

4

Ground Lift

Recessed ground lift switch disconnects pin-1 on the XLR output to help eliminate hum and buzz caused by ground loops.

5

Cable Clamp

Prevents accidental power disconnection by locking down the AC adapter cable.

6

15VDC

Connection for the Radial 15VDC/400mA power supply (included).

7
1
2
3
4

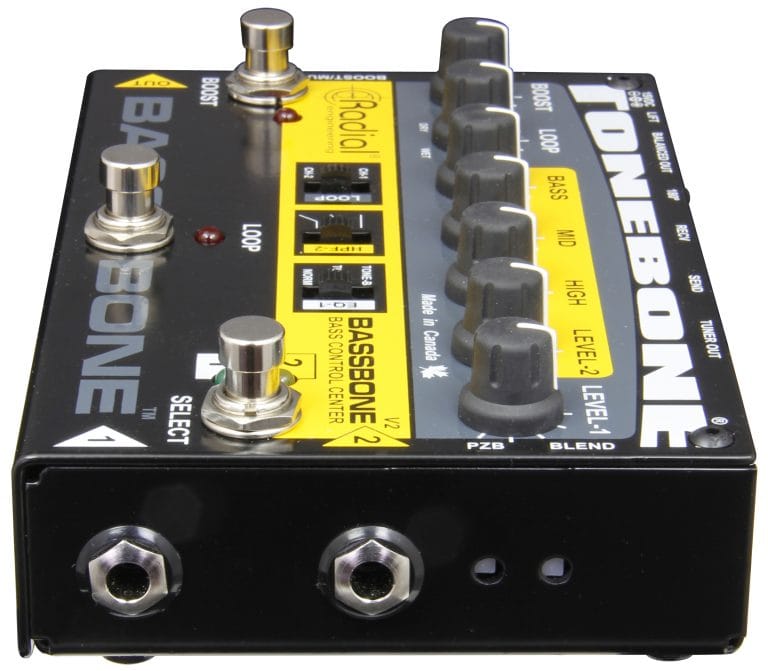

Input-1

Primary ¼” instrument input. The signal is also automatically sent to channel-2 when no instrument is connected to the input-2 jack.

1

Input-2

¼” instrument input jack for a second bass.

2

PZB (Input-2)

Recessed switch turns on the piezo booster and increases impedance to 10 meg-ohms and gain by 10dB.

3

Blend

Recessed switch turns on both channels for instruments with dual electric/acoustic pickup systems.

4
1
2
3

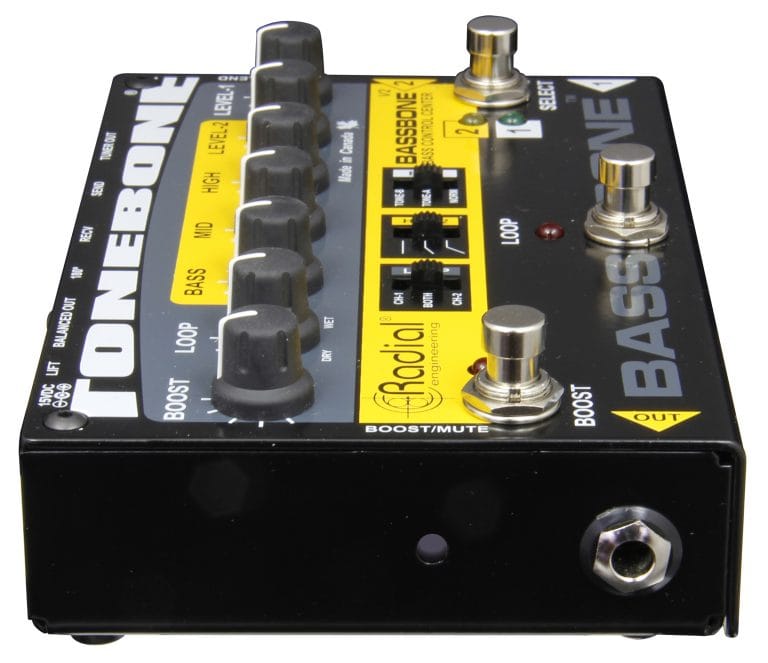

Boost/Mute

Recessed switch assigns the BOOST footswitch to either the power booster or mute.

1

Out

¼” instrument output jack connects to your bass amplifier.

2

Powder Coat Finish

Keeps your Tonebone Bassbone V2 looking good for years.

3

Bassbone V2 Resources

Part no: R800 7071 00
