BigShot EFX Specifications

Specifications

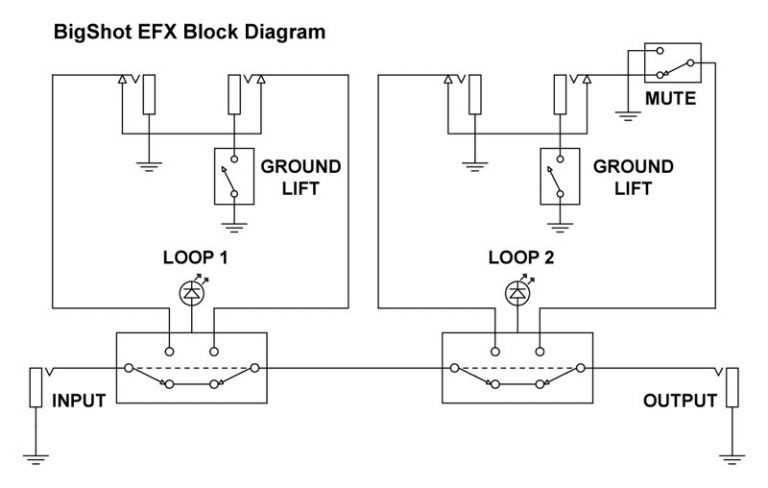

Audio circuit type: Passive, true-bypass

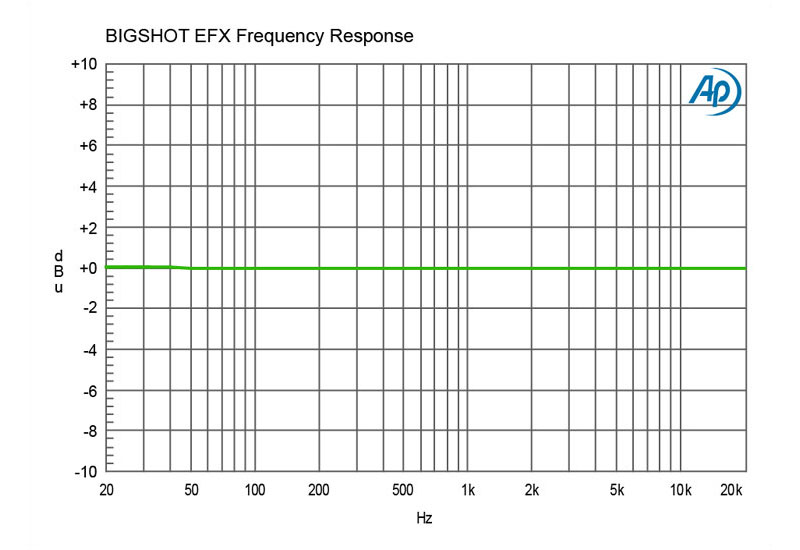

Frequency response: 20Hz – 20kHz
Gain: -0.3dB
Features
Ground lift
Input Connectors: Two 1/4" inputs
Output Connectors: Two 1/4" outputs
Extras: Mute turns Footswitch 2 to a mute switch for silent tuning through Loop-2
General
Construction: 14-gauge steel
Finish: Durable powder coat
Size (L x W x D): 3.9" x 3.6" x 2" (99 x 91.4 x 50.8mm)
Weight: 1.25 lb (0.56 kg)
Shipping size (L x W x D): 6.25" x 4.25" x 3" (158.7 x 108 x 76.2mm)
Shipping weight: 1.55 lb (0.70 kg)
Power: 9VDC, center pole negative
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable

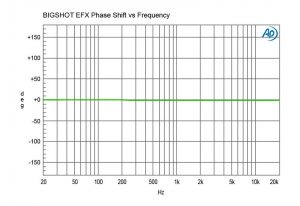

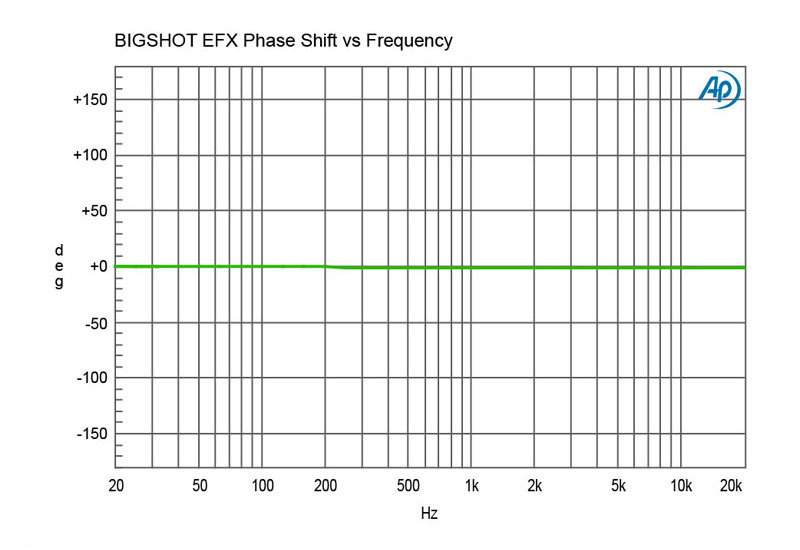

What do these graphs mean? Learn what to look for and why it matters.

Learn More

BigShot EFX Resources

Part no: R800 7214 00
