ChainDrive Specifications

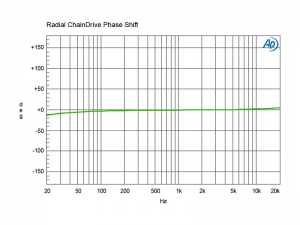

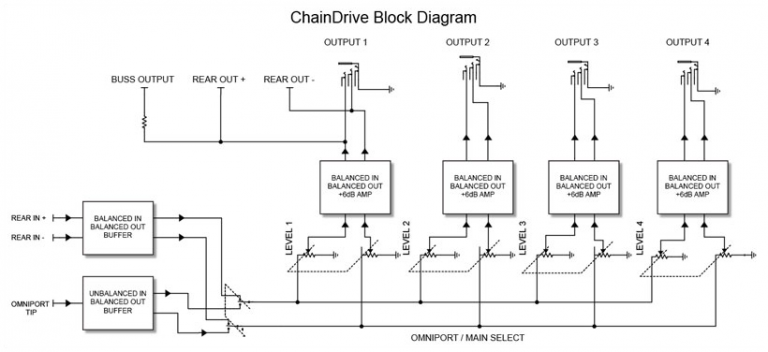

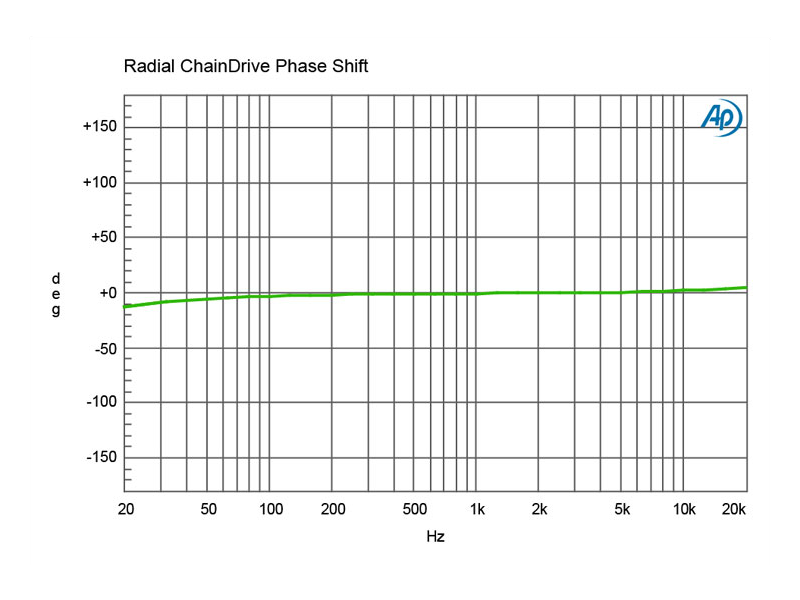

The ChainDrive is a 500 series module designed to distribute an audio signal to four destinations. The circuit is able to handle extreme signal levels in excess of +24dB with less than 0.002% distortion at all frequencies. The simplicity of the design further advantages with exceptionally low phase distortion and noise below the 120dB mark. This makes the ChainDrive the perfect ‘distro’ for routing all types of signals in the studio or other more demanding audio installations.

Audio circuit type: High performance audio op-amps

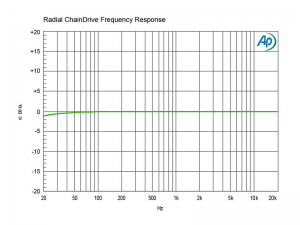

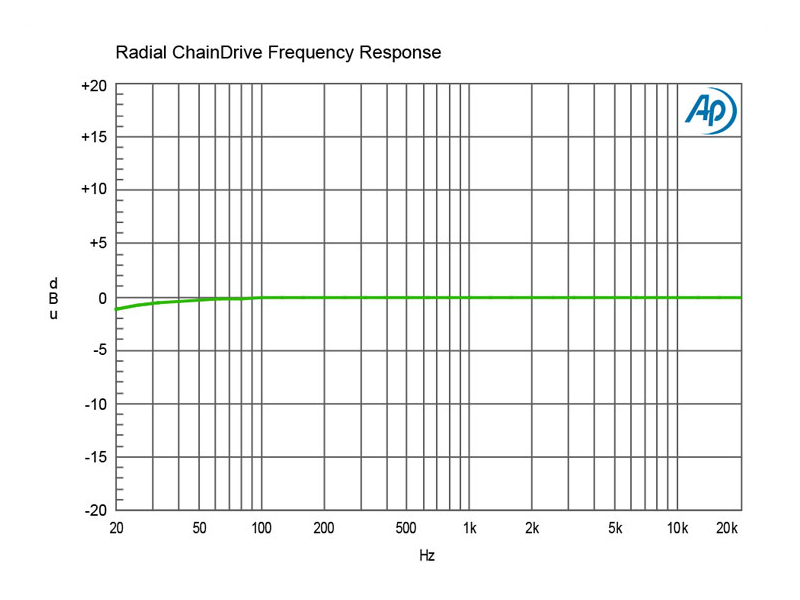

Frequency response: 20Hz to 20KHz
Dynamic range: 124dB
Gain: +4dB

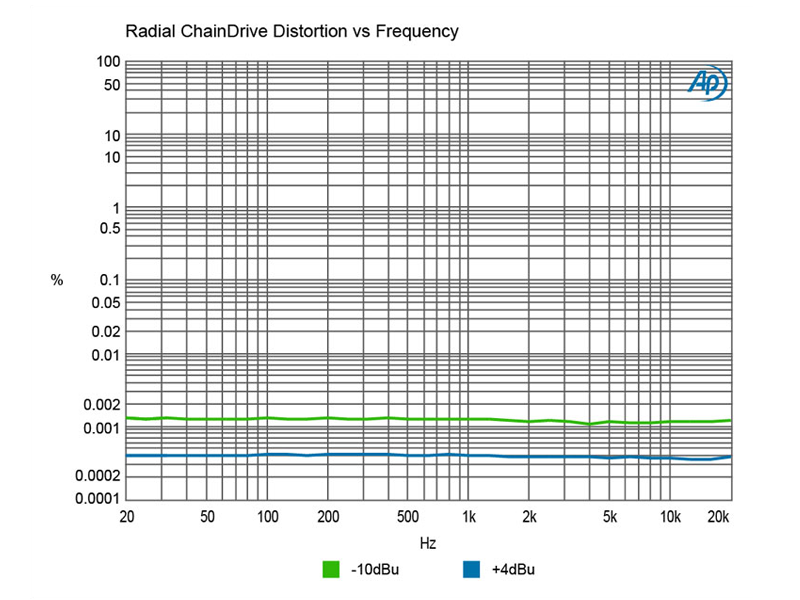

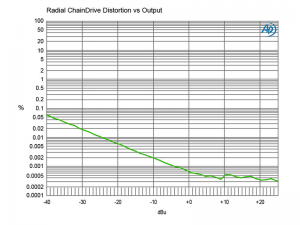

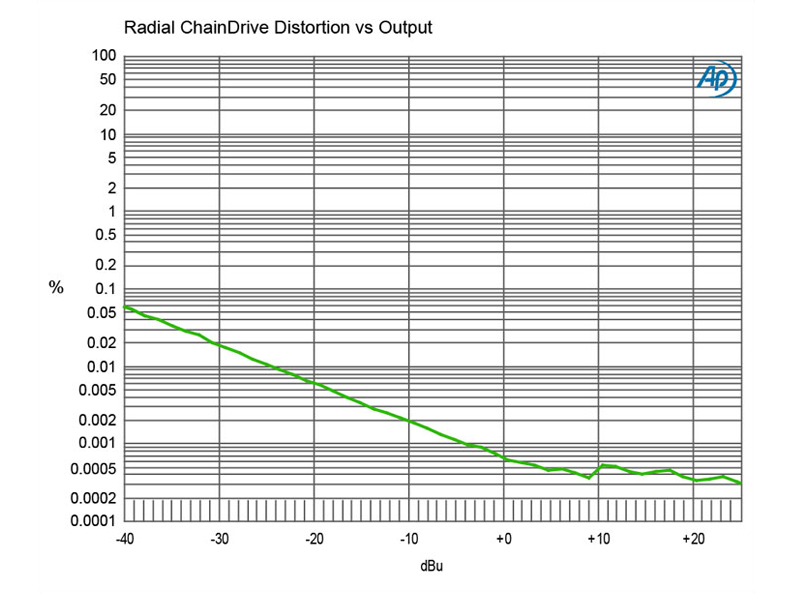

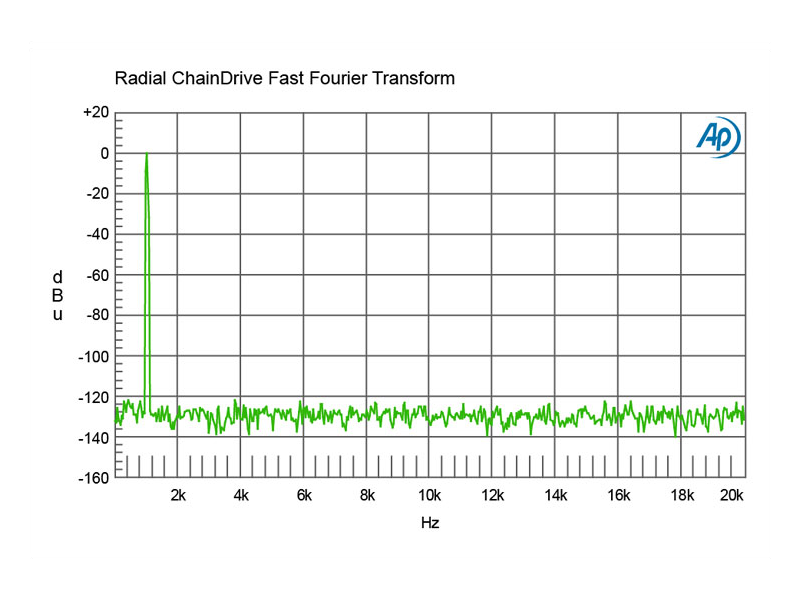

Total harmonic distortion: <0.001%

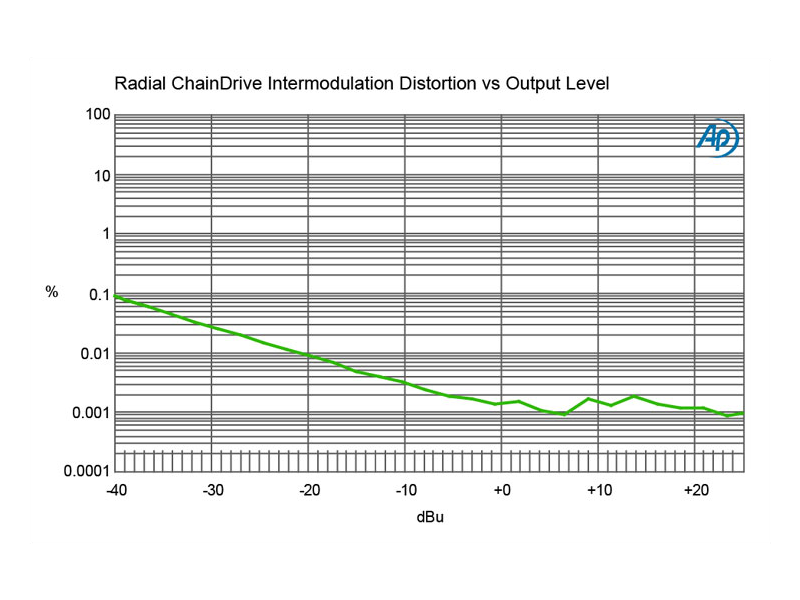

Intermodulation Distortion: <0.002%
Input Impedance: 10K-ohms
Common Mode Rejection Ratio: 53dB

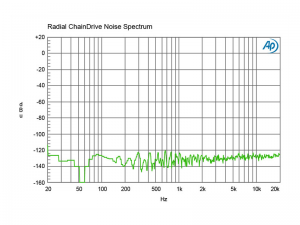

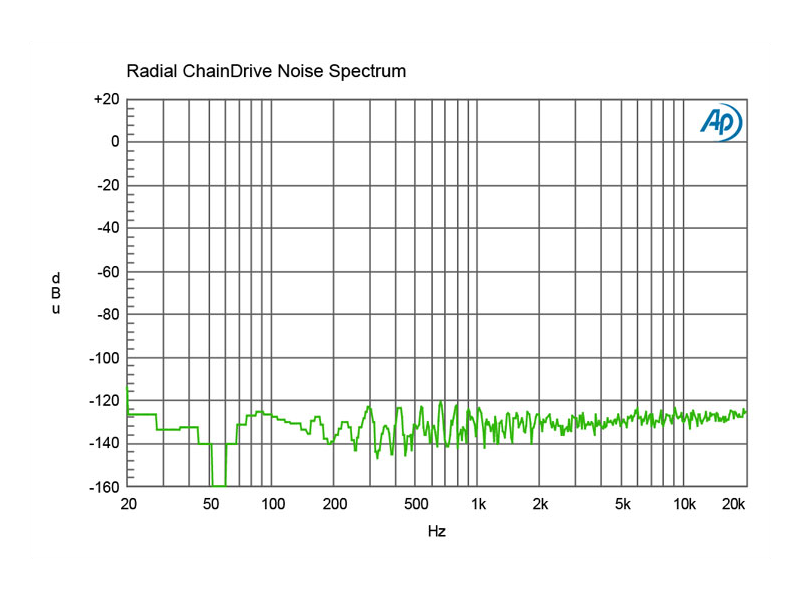

Equivalent Input Noise: -104dBu
Maximum Input: +24dBu
Maximum Output: +28dBu
Current Draw: +/- 16V @ 33 mA
Level Control
Input Connectors: 500 series connection
Output Connectors: 1/4"
Weight: 1.5 lbs. (0.7 kg)
Shipping size (L x W x D): 9 x 6.5 x 2 (inches) 229mm x 165mm x 51mm
Power: +/- 16V @ 33 mA
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable

ChainDrive Resources

Part no: R700 0172 00
