DiNET DAN-RX Features

1
2
3
4
5

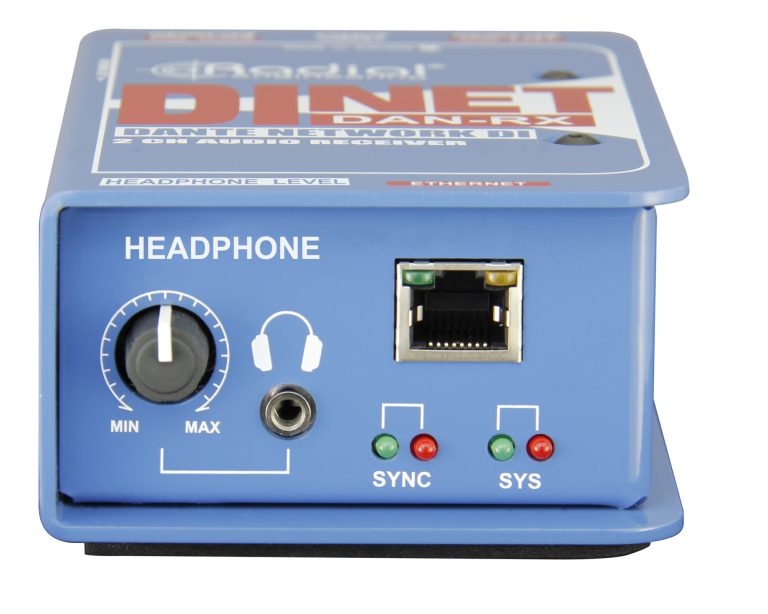

Headphone Level

Volume control for the headphone output. Provides level adjustment independent from main outputs.

1

3.5mm Headphone Jack

Connection for earbud style headphones for local monitoring.

2

Sync LEDs

Red LED is illuminated when unit is powered, but Ethernet cable is not connected. Green LED will illuminate once connected. Flashing LED indicated that the DAN-RX is in slave mode, solid LED indicates that it is in master mode.

3

Ethernet

Used to connect to the Dante™ enabled network via CAT5 or CAT6 cable.

4

SYS LEDs

Red LED illuminates when power is first applied. Switches to green LED once Dante™ processor starts.

5
1
2
3

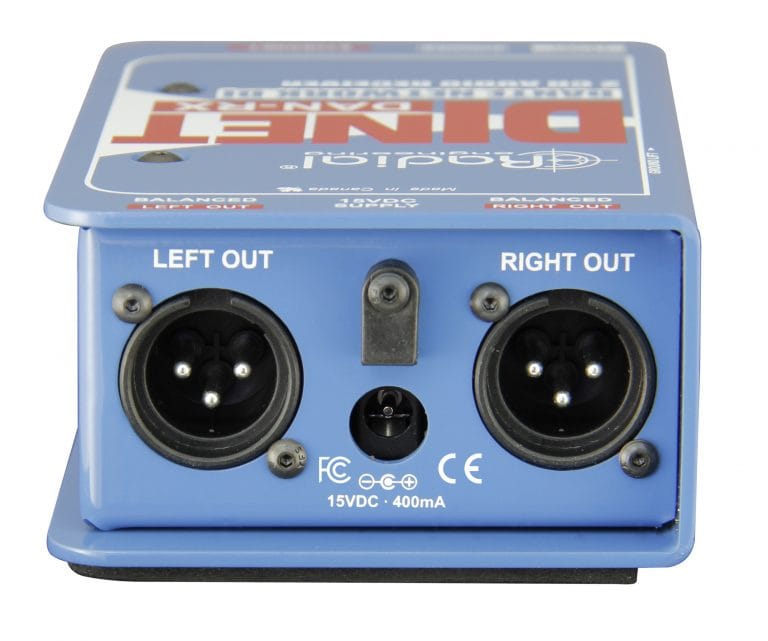

XLR Outputs

Balanced left and right XLR outputs for connection to a mic or line level inputs.

1

Power

15VDC connection for use with included Radial power adaptor when PoE is not available.

2

No-Slip Pad

Provides electrical & mechanical isolation and keeps the DAN-RX from sliding around.

3
1
2

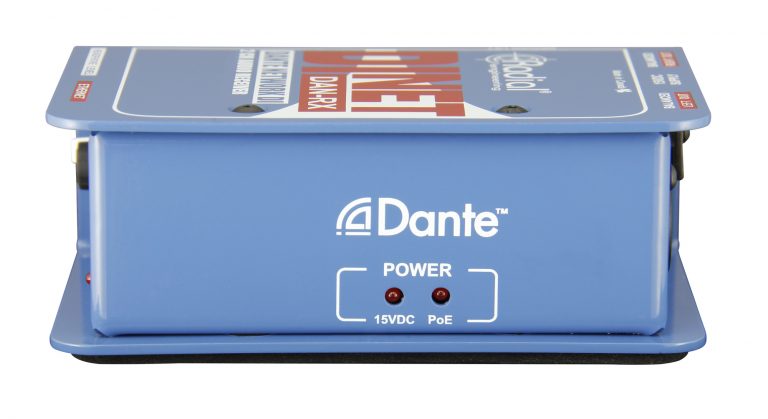

+15V LED

Will illuminate when the DAN-RX is connected to the included DC power adaptor. A cable lock is provided to prevent accidental power loss.

1

PoE

Will illuminate when Power over Ethernet is available.

2
1
2
3

14-Gauge Steel

I-beam enclosure prevents circuit board from being torqued which could lead to part failure.

1

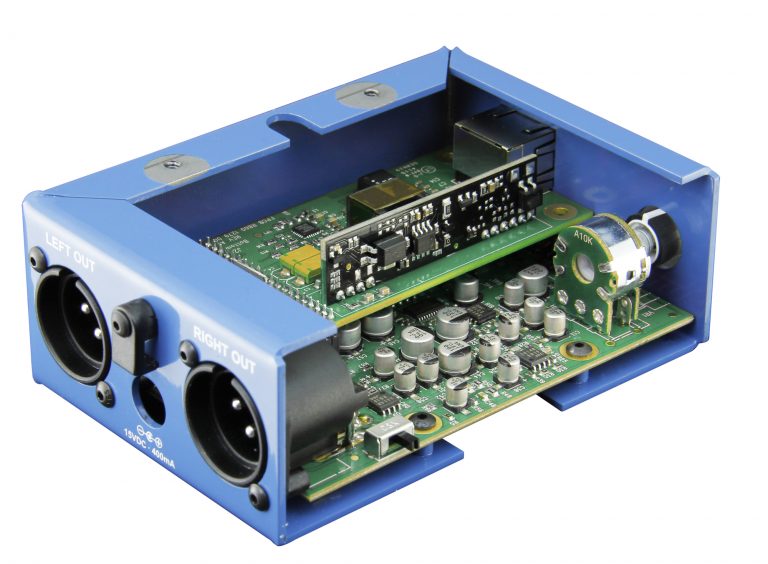

Mil-Spec PCB

Full ground plane for noise-free performance, double sided for durability.

2

Powder Coat

Durable finish keeps your DAN-RX looking great for years.

3
