Provided for connection to CD/DVD players and other consumer level playback devices. Wired in parallel with the ¼” and 3.5mm inputs.
Stereo TRS input for use with laptops, tablets and phones. Wired in parallel with the ¼” and RCA inputs.
Adjustable trim control to set input levels, with unity gain at 12 o’clock. Provides -10dB of cut or +10dB of gain at the min/max settings.
Will illuminate when the DAN-TX is connected to the included DC power adapter.
15VDC connection for use with included Radial power adapter when PoE is not available.
Will illuminate when input signal is detected. LED color will change to red when clipping is detected.
Red LED illuminates when unit is powered. Green LED illuminates once connected to an Ethernet network. Flashing green LED indicates that the DAN-TX is in slave mode, solid green LED indicates it is in master clock mode.
Used to connect to the Dante™ enabled network via CAT5 or CAT6 cable.
Red LED illuminates when power is first applied. Switches to green LED once Dante processor becomes active.
Used to select between line level or instrument level inputs. When set to INST the ¼” stereo inputs are reconfigured as a mono instrument input with a thru output.
Enables a -18dB input pad for high output line level sources.
Enables a high-pass filter to roll off frequencies below 80Hz.

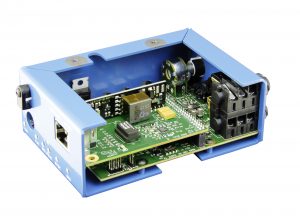

I-beam enclosure prevents circuit board from being torqued which could lead to part failure.
Full ground plane for noise-free performance, double sided for durability. Full ground plane for noise-free performance, double sided for durability.
Durable finish keeps your DAN-TX looking great for years.
