EXTC-SA Features

1
2
3
4

Send & Receive

These controls are used to set the send level to the pedals and return path level back into the EXTC. These are normally set to optimize the signal-to-noise ratio.

1

Polarity Reverse

Lets you adjust the polarity of the wet signal path and bring it into phase with the dry signal when they are being mixed together.

2

Blend Control

Adjusts the wet-dry mix between the original unprocessed signal and the EXTC’s effects loop.

3

EFX Loop A & B

Used to select between loop-A or Loop-b. Combine them together in series for added fun!

4
1
2
3
4
5

Power

15VDC power connection for the external power supply.

1

1/4" Jacks

Separate send and receive ¼ jacks used to connect guitar pedals to the EXTC.

2

XLR Output

Balanced line-level output for runs to 1000' (300m) without noise.

3

XLR Input

Balance input, connects from output to your recording system to the EXTC-SA.

4

1/4" TRS Connectors

Parallel connectors with XLRs also enable the EXTC to be used with unbalanced sources.

5
1
2
3

Transformer

Provides isolated send path to the effects to help eliminate hum and buzz caused by ground loops.

1

Class-A Buffer

100% discrete class-A buffers for optimal signal flow and natural tone.

2

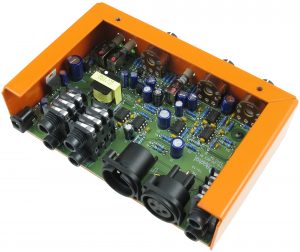

Mil-Spec PCB

Full ground plane for noise-free performance, double-sided for durability.

3
