Headlight Features

1
2
3
4
5
6

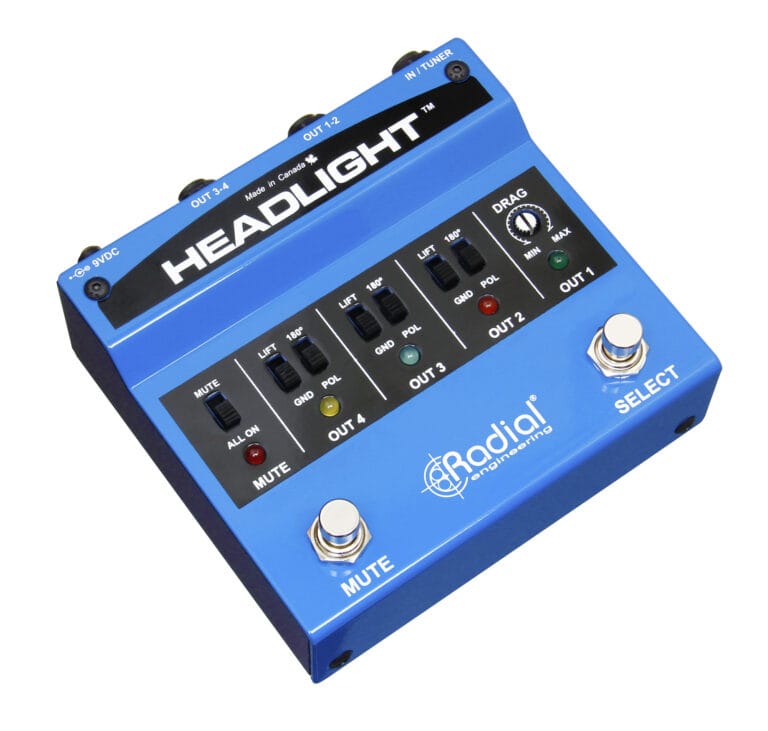

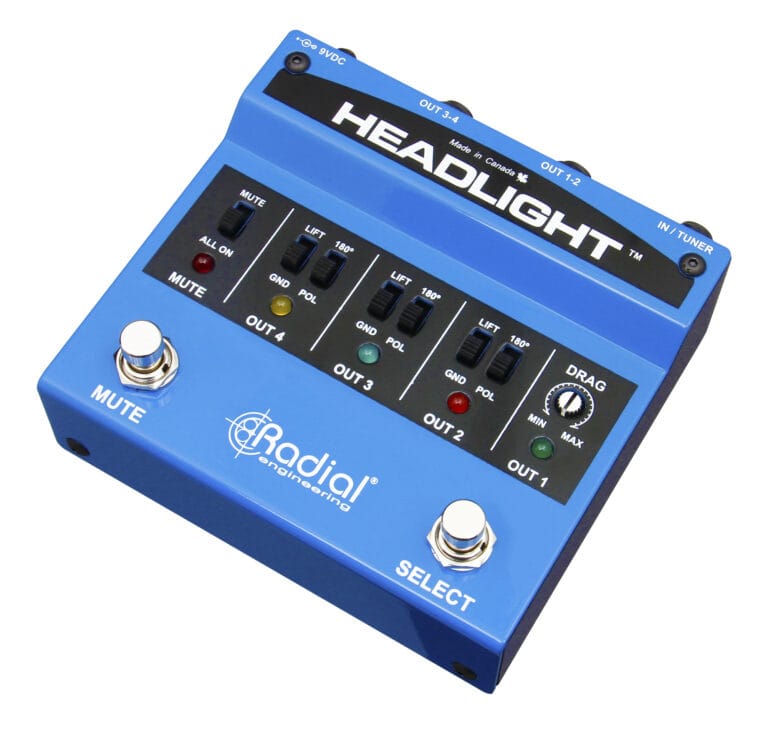

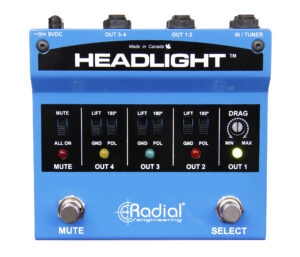

All On

changes the MUTE footswitch function to ALL-ON when activated.

1

180°

Corrects the relative phase of one amp to another.

2

Lift

Used to help reduce hum and buzz caused by ground loops

3

Drag

Lets you adjust the load on the pickup for the most natural tone.

4

Mute / All On

Footswith used to mute the amps for tuning or can be set to turn all outputs on at the same time.

5

Select

Heavy duty footswitch used to cycle through outputs 1 - 4 using radio-button style functionality brick.

6
1
2
3
4
5

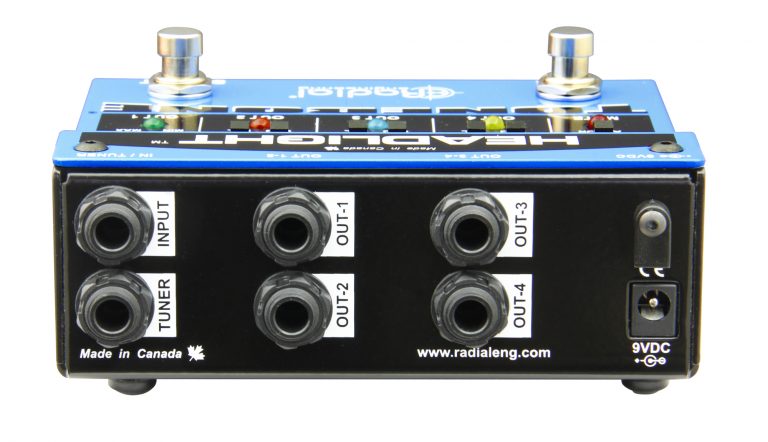

Input

¼” input used to connect guitar or bass to the Headlight.

1

Outputs 2-4

Isolated ¼” outputs used to send signal to different amps or effects.

2

Output 1

Is the default output and should always be used as it provides a safety ground path to the instrument.

3

Switching Jacks

Sets the rotation of the output select footswitch depending on which outputs are connected.

4

Tuner

Dedicated separately buffered ¼” output is always on - connects to tuner.

5
1
2
3

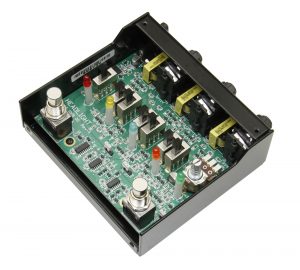

Transformers

Custom Radial Transformers for distortion-free signal transfer.

1

Class-A Circuit

100% discrete Class-A circuitry for minimal negative feedback and the most natural tone.

2

Jumpers

Let you set which amps will be on when in the all-on mode and the mute footswitch is engaged.

3

Headlight Resources

Part no: R800 7096 00
