Headlight Specifications
Specifications

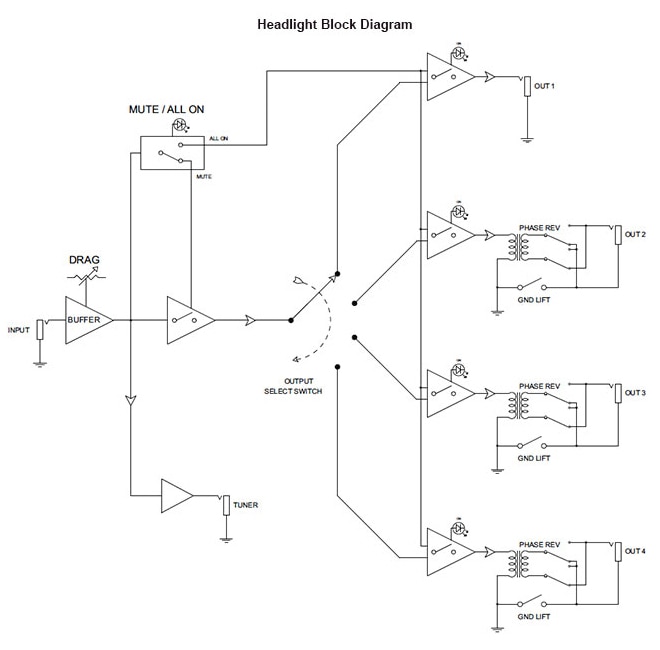

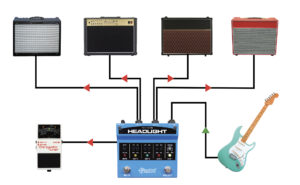

Block Diagram

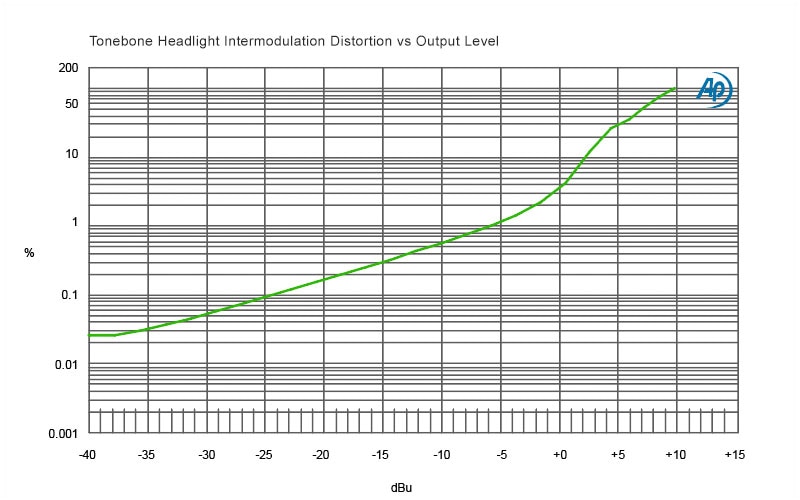

Graphs
| Specifications | ||
|---|---|---|
| Audio circuit type: | Classic Class-A FET | |
| Frequency response: | 30Hz - 30kHz | |
| Dynamic range: | 116dBu | |
| Gain: | -0.5dBu | |
| Clip Level: | +7dB | |
| Total harmonic distortion: | 0.01% | |
| Intermodulation Distortion: | 0.02% | |
| Phase Deviation: | -1.35° @ -20dBu / 1kHz | |
| Input Impedance: | 20k to 1MΩ | |
| Output Impedance: | 1kΩ | |
| Noise Floor: | -112dBu | |
| Maximum Input: | +8dB | |
| Features | ||
| 180° polarity reverse, Ground lift, Drag Control | ||
| Input Connectors: | 1/4" | |
| Output Connectors: | 1/4" | |
| General | ||
| Construction: | 14-Gauge Steel | |
| Size (L x W x D): | 5" x 4.7" x 2" | |
| Weight: | 2lb | |
| Shipping size (L x W x D): | 6.5" x 5.1" x 2.5" | |
| Shipping weight: | 2.4lb | |
| Power: | 9V adaptor / 80mA (Center Pin Negative) | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |

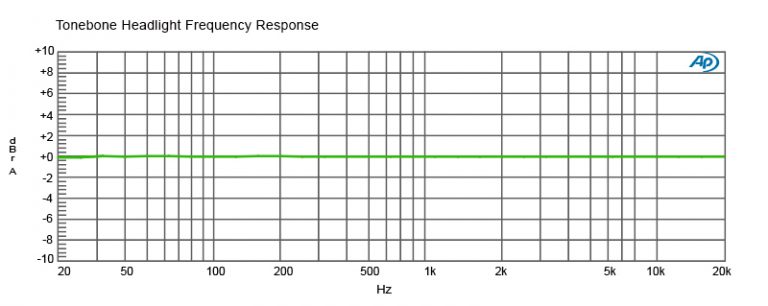

Frequency Response
What do these graphs mean? Learn what to look for and why it matters.
Learn More
