HotShot ABo Specifications

Specifications

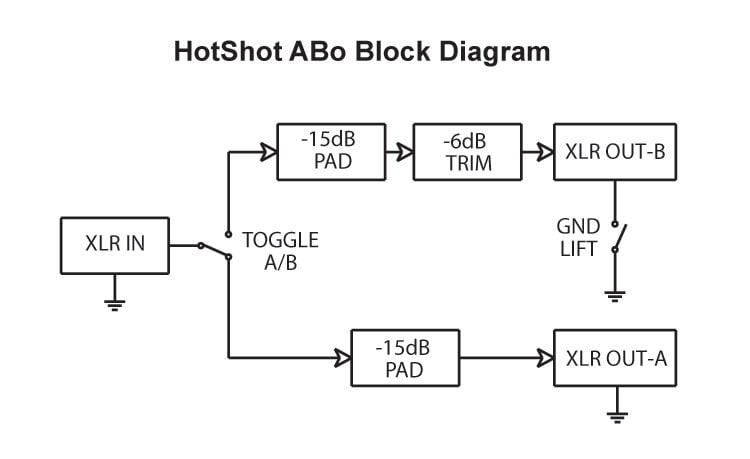

Block Diagram

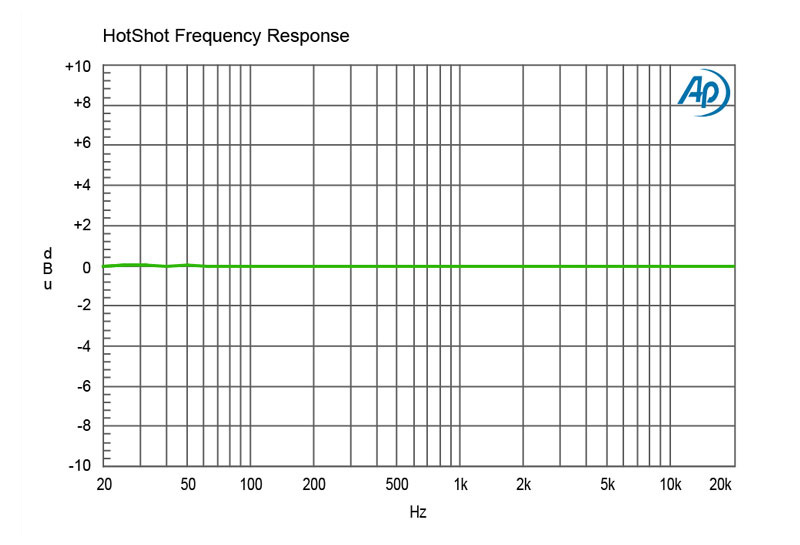

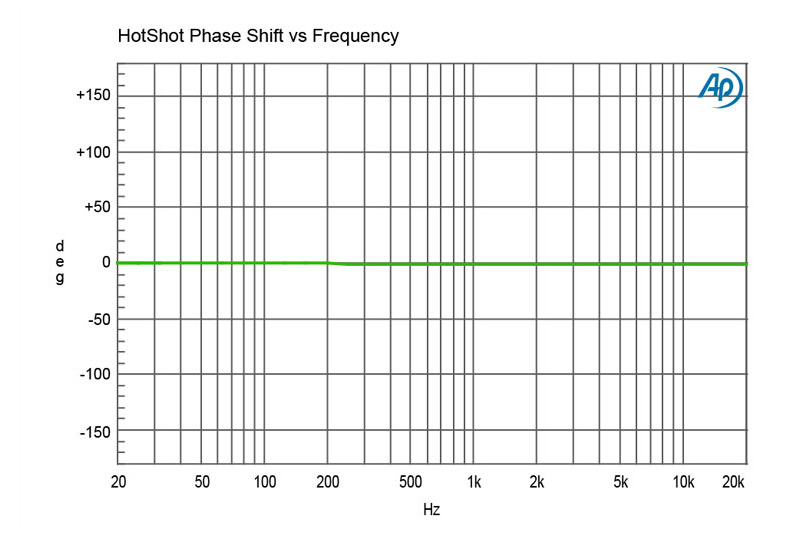

Graphs

Specifications
Audio circuit type:	Passive, true-bypass
Frequency response:	20Hz ~ 20kHz
Dynamic range:	Unlimited
Features
Input pad, Ground lift

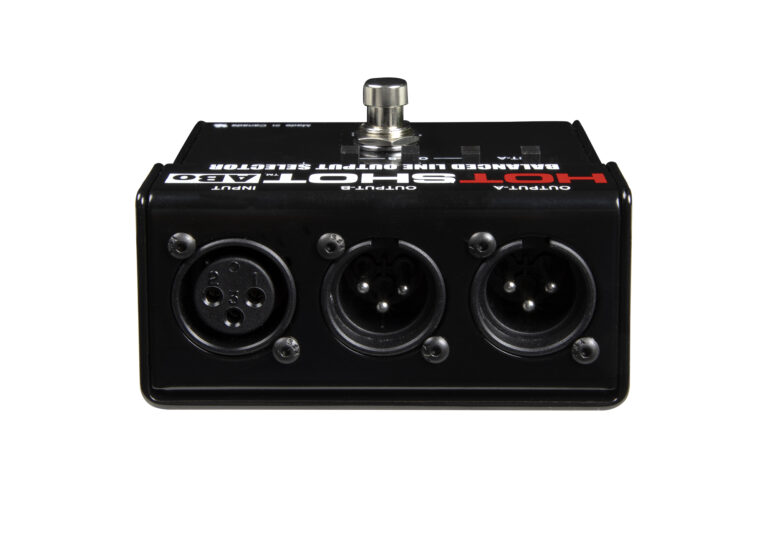

Input Connectors:	One XLR input
Output Connectors:	Two XLR outputs
General
Construction:	14-Gauge Steel
Size (L x W x D):	3.9" x 3.6" x 2" (99 x 92 x 51mm)
Weight:	1.25 lb (0.56 kg)
Conditions:	For use in dry locations only between 5°C and 40°C
Warranty:	Radial 3-year, transferable
