J48 Stereo Specifications

The Radial J48 has gained a tremendous following through the professional audio community. With significantly more headroom, lower distortion and unmatched durability, it is no wonder that the J48 has become the most specified direct box on stages around the world and there is no doubt that the J48 Stereo will follow suit. As you will note, the J48 Stereo is exceptionally linear with a frequency response that exceeds 40kHz. Just as impressive, it produces a wonderful cascade of even order harmonics reminiscent of the finest studio equipment. Amazing signal handling, great sound and low noise… The J48 Stereo rules!

Specifications
Audio circuit type: Proprietary analog circuit with low-noise op-amp
Number of channels: 2
Frequency response: 20Hz ~ 20kHz
Dynamic range: 109dB

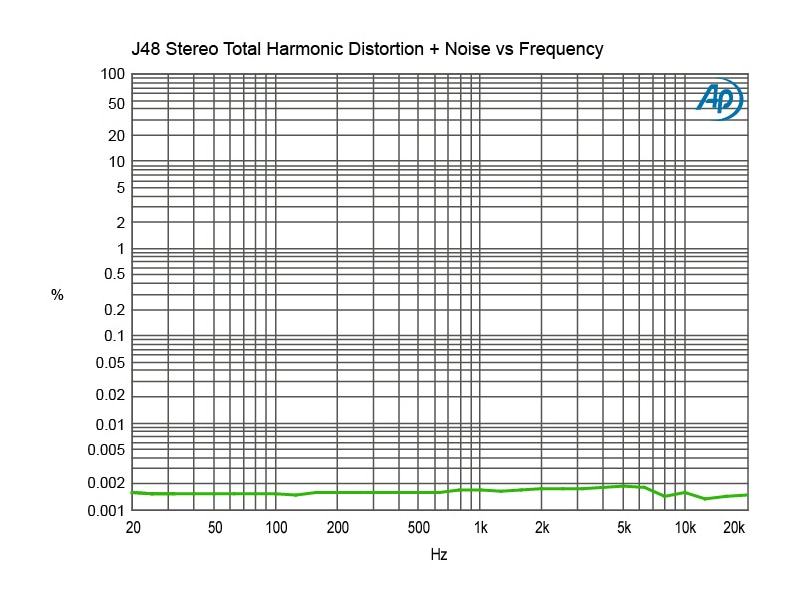

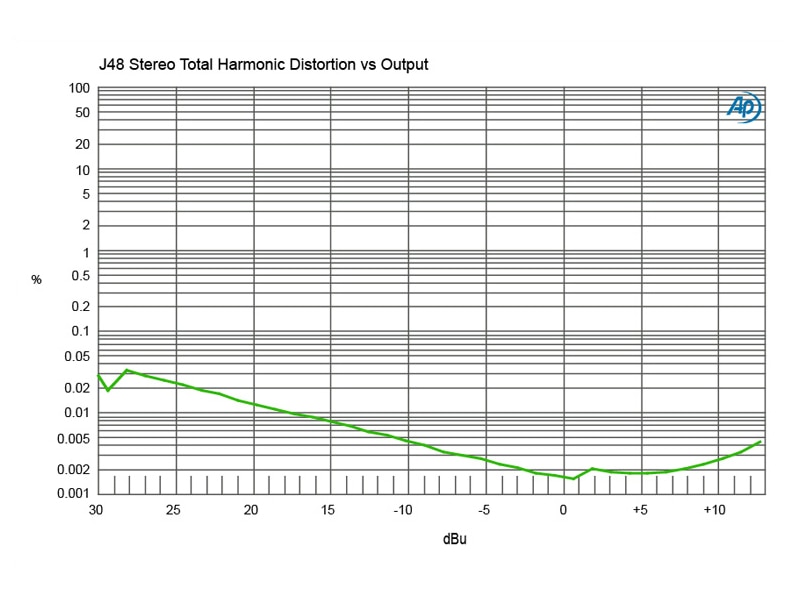

Total harmonic distortion: 0.002% @ -5dBu
Intermodulation Distortion: 0.003% @ -3dBu

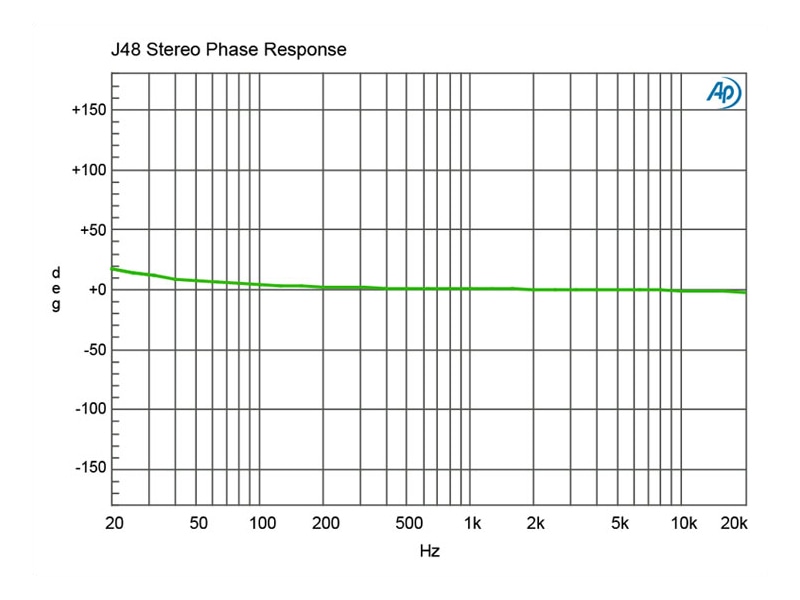

Phase Deviation: +10º at 20Hz | 0º at 1kHz | -1º at 20kHz
Input Impedance: 220kΩ - ¼" input
Output Impedance: 600Ω - XLR output
Equivalent Input Noise: -103dBu

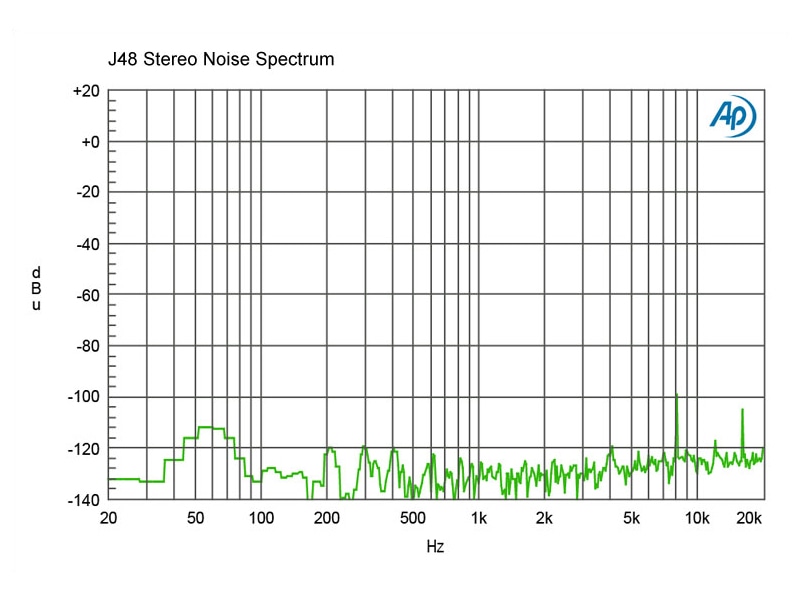

Noise: -99dB below 0dBu
Maximum Input: +10dBu
Features
Input pad, 180° polarity reverse, Ground lift, HPF
Input Connectors: 2x 1/4" in and thru
Output Connectors: 2x XLR
General
Construction: 14 gauge steel chassis and outer shell
Size (L x W x D): 3.3" x 5.0" x 2" (84 x 127 x 48mm)
Weight: 1.55 lb (720 g)
Power: 48V phantom - proprietary digital switching
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable

J48 Stereo Resources

Part no: R800 3002 00
