reduces the input sensitivity for active basses and high output keyboards.
flashes once when the 80Hz filter is depressed to confirm 48V phantom power is present.
changes the input and thru-put to two LR inputs and mixes the output to mono at the XLR.
instrument input connection to the J48.
throughput from the J48 to the amp. Hi impedance will not load instrument down.
balanced 600Ω mic level output, use to feed mixer or mic preamp.
polarity reverse use to correct the phase on old gear and reduce feedback on stage.
80Hz high pass filter cleans up bottom end and reduces resonant feedback.
ground lift switch disconnects the ground from the audio signal path and help eliminate hum and buzz caused by ground loops.
nylon XLR connector with extra large nickel-silver pin contacts. Tougher than steel!

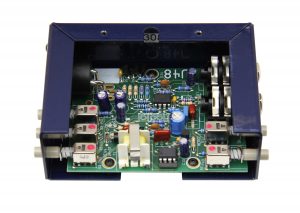

combination discrete & IC circuitry for exceptional signal handling & low noise.
Internal Switching Supply
increases rail voltage for more headroom and lower distortion.
located inside the J48 circuitry (not at the XLR) to ensure phantom power isn’t dropped when the switch is engaged.
