JDI Stereo Specifications

The Radial JDI Stereo is a two channel passive direct box that is equipped with two Jensen audio transformers. These amazing devices not only balance the signal, but also lower the impedance to allow long cable runs without noise. Each transformer features a unique nickel core stack, proprietary winding technique, dual faraday shields to eliminate high frequency noise, and a protective outer MuMETAL® can to protect against external fields. This results in exceptionally low distortion of all types while being able to handle extreme transients at all frequencies. With its heavy-duty steel shell and internal I-beam construction, the JDI Stereo is designed to work dependably for years in even the harshest of touring environments. The JDI Stereo is quite simply the world’s finest passive stereo direct box.

Green Report

The Radial Green Report is a comparison report that looks at four popular direct boxes in professional touring, studio and broadcast.

View PDF
Specifications
Audio circuit type: Passive, transformer based
Transformer: Jensen JT-DBE
Number of channels: Two channels (dual mono)
Frequency response: 20Hz ~ 20KHz (± 0.2dB)
Dynamic range: 135dB

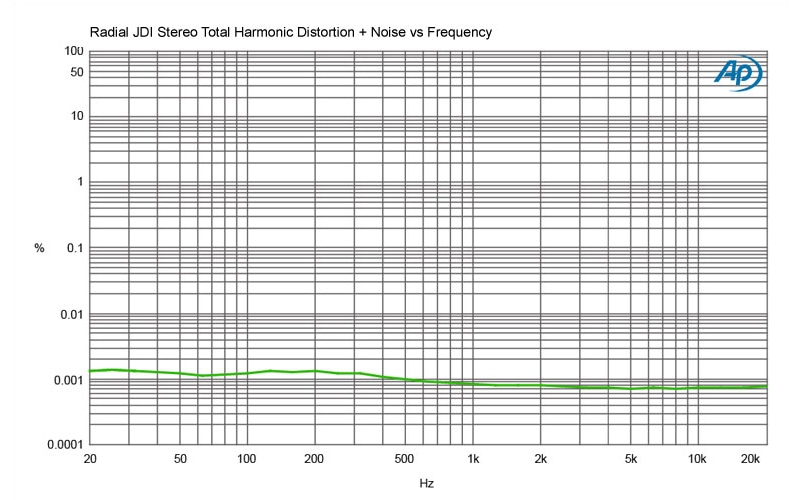

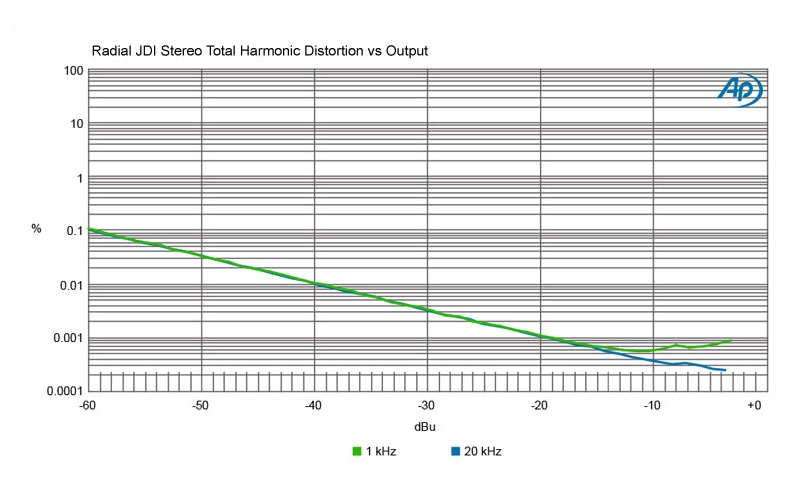

Total harmonic distortion: 0.05% from 20Hz ~ 20kHz @-10dB
Phase Deviation: 0.3° @ 100Hz; 3° @ 20Hz
Input Impedance: 140k Ohms, unbalanced
Output Impedance: 150 Ohms, balanced
Maximum Input: +21dB @ 20Hz ~ 20kHz
Features
Input pad, Ground lift
Input Connectors: Unbalanced 1/4"
Output Connectors: XLR out, 1/4" thru
General
Construction: 14 gauge steel chassis & outer shell
Size (L x W x D): 5" x 3.3" x 1.8" (127mm x 84.1mm x 45.5mm)
Weight: 1.55 lbs (703 grams)
Shipping size (L x W x D): 6.5" x 4" x 3" (165mm x 102mm x 76mm)
Shipping weight: 1.92 lbs (870.9 grams)
Power: Passive, no power required
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable

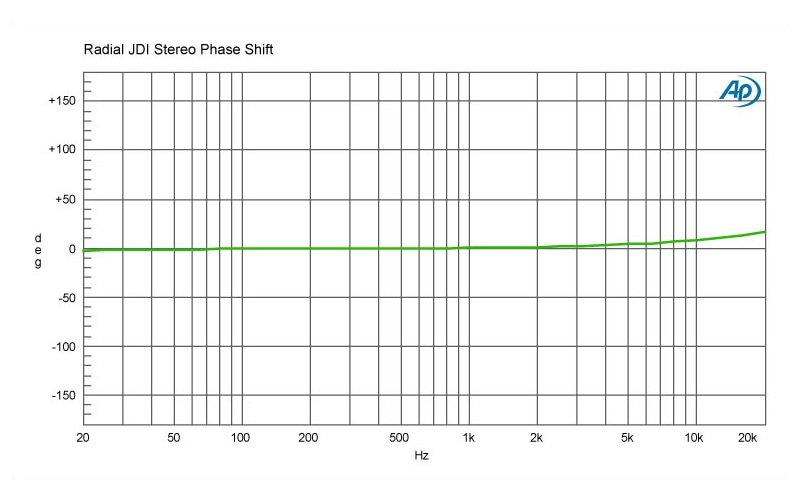

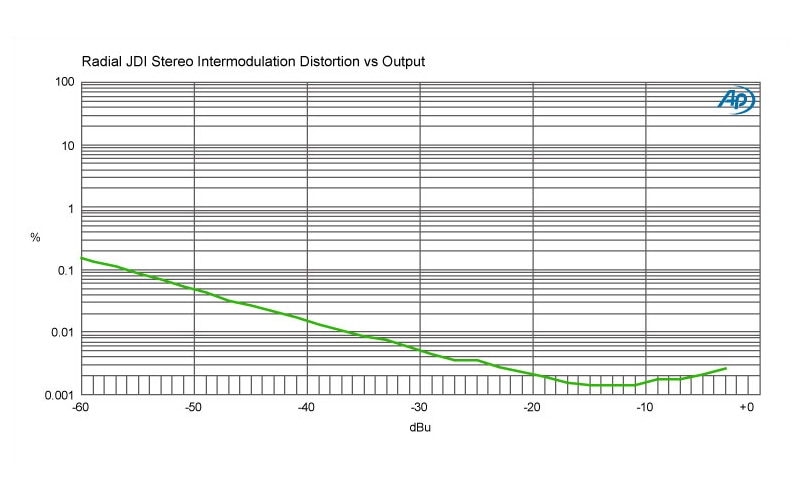

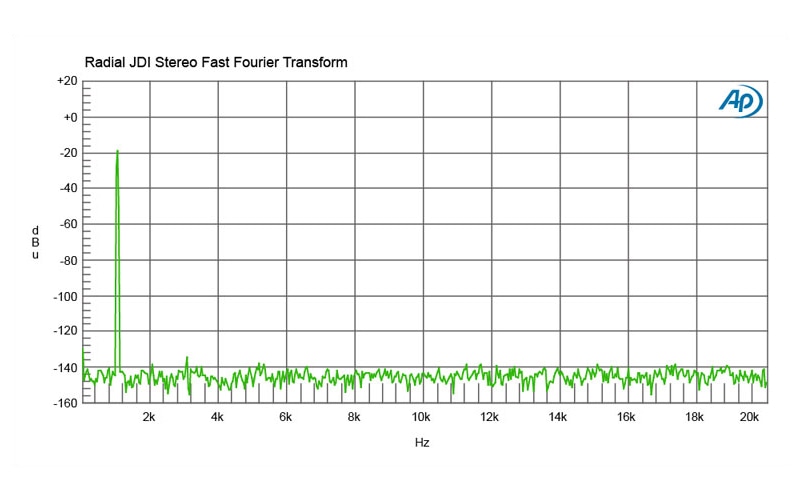

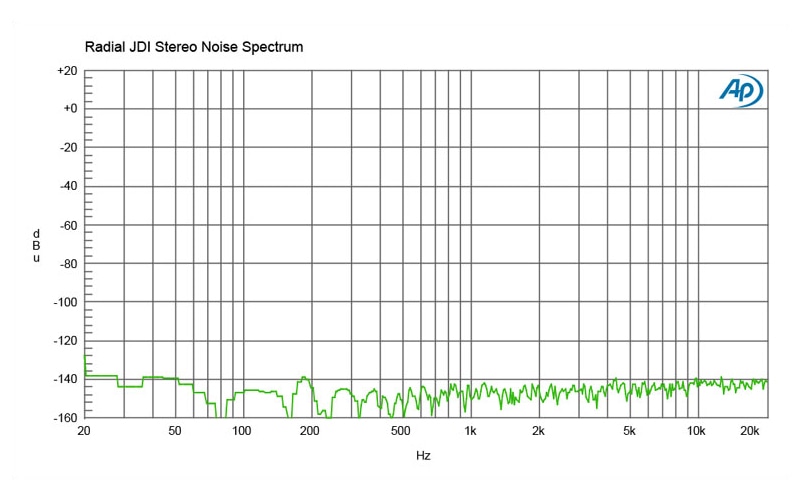

Frequency Response

What do these graphs mean? Learn what to look for and why it matters.

Learn More

JDI Stereo Resources

Part no: R800 1012 00
