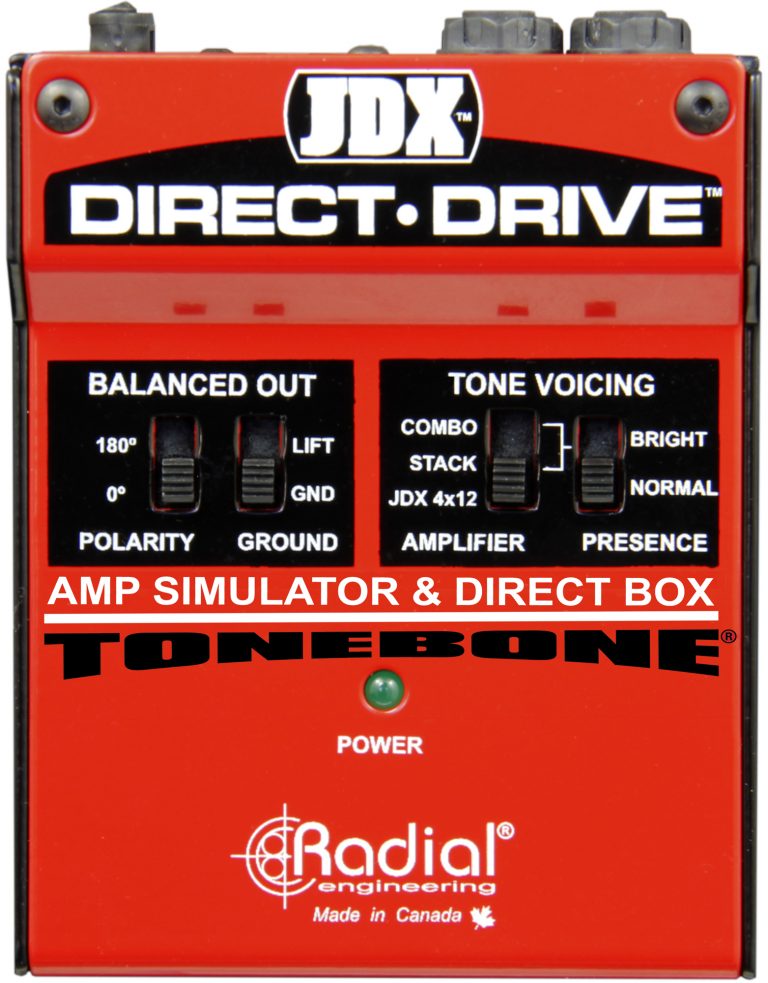

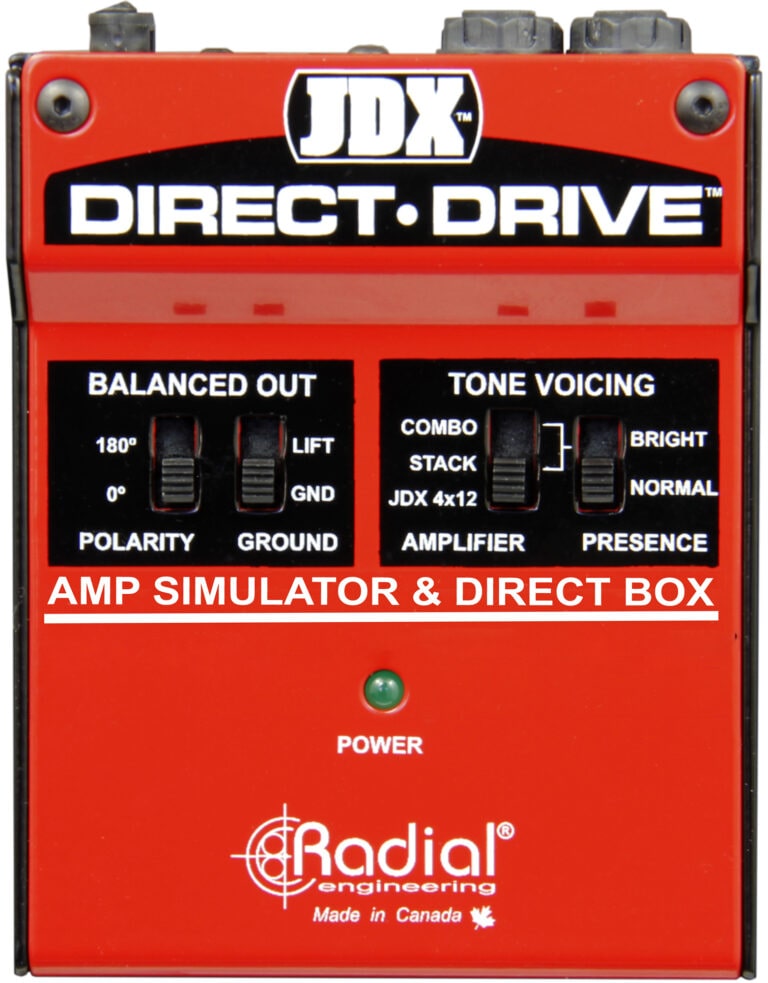

JDX Direct-Drive Features

1
2
3
4

Polarity

Toggles pin-2 and pin-3 on the XLR out to phase-align your amp with the stage monitors.

1

Ground

Lifts pin-1 on the balanced XLR output to help reduce hum and buzz caused by ground loops.

2

Amplifier

3-position switch with amp voicings for Combo, Stack and JDX.

3

Presence

2-position switch with bypass and on for extra sparkle on the STACK & COMBO settings.

4
1
2
3
4
5
6

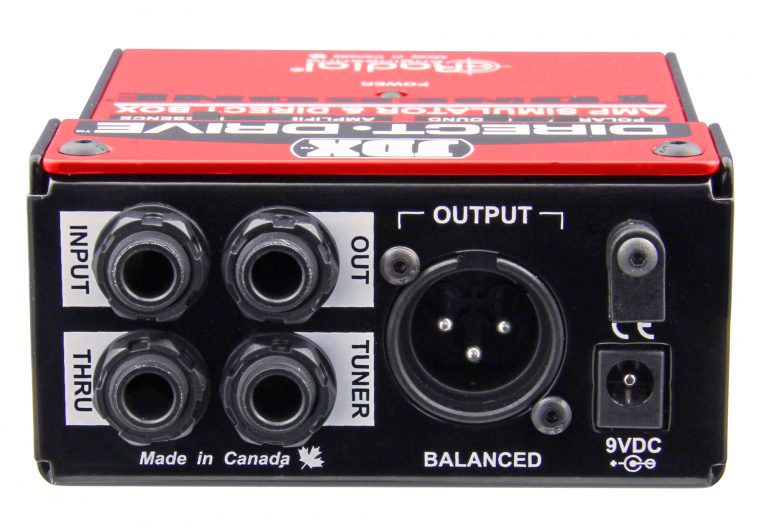

Input

¼” input jack for your guitar.

1

Thru

Used to feed the on-stage amplifier.

2

Out

¼” ‘amp tone’ output used to feed a processor or second amp.

3

Tuner

Hi-Z always on output used to connect an electronic tuner.

4

XLR output

Balanced output used to feed the PA system or recorder.

5

9VDC

Standard Boss-style power supply connection, 200 milliamp draw.

6
