JPC Features

1
2
3
4
5

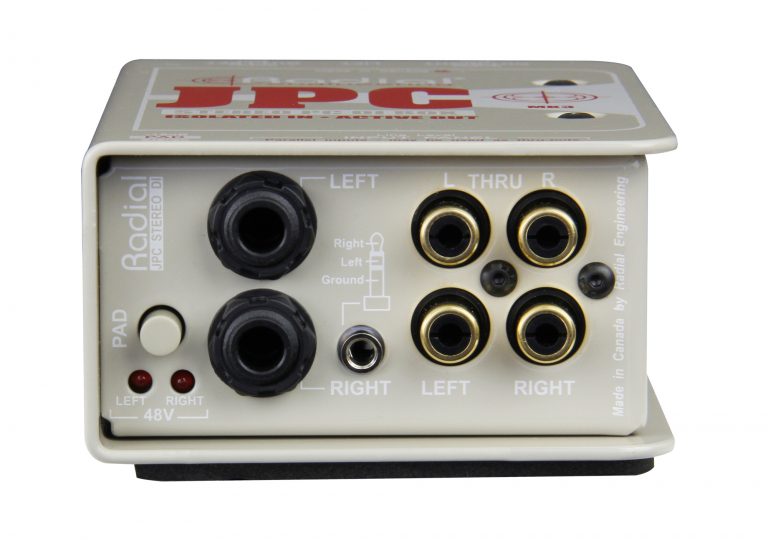

-10dB Pad

Reduces the input level from extra loud sources to prevent overload distortion. When depressed, the pad is inserted on both channels.

1

48V LED

Individual LEDs let you know that phantom power is active on left and right channels.

2

1/4" Inputs

Stereo inputs accommodate drum machines, samplers and keyboards and are wired in parallel with RCA and 3.5mm (1/8" TRS) connectors.

3

3.5mm TRS Input

Wired stereo for easy interface with laptops PCs and iPods. TRS connection follows convention with tip-left, ring-right and sleeve-common ground.

4

RCA Inputs

Ideally suited for connecting DVD/CD players and video machines to the JPC. RCA thru-puts add extra flexibility to allow aconnectivity to other equipment.

5
1
2

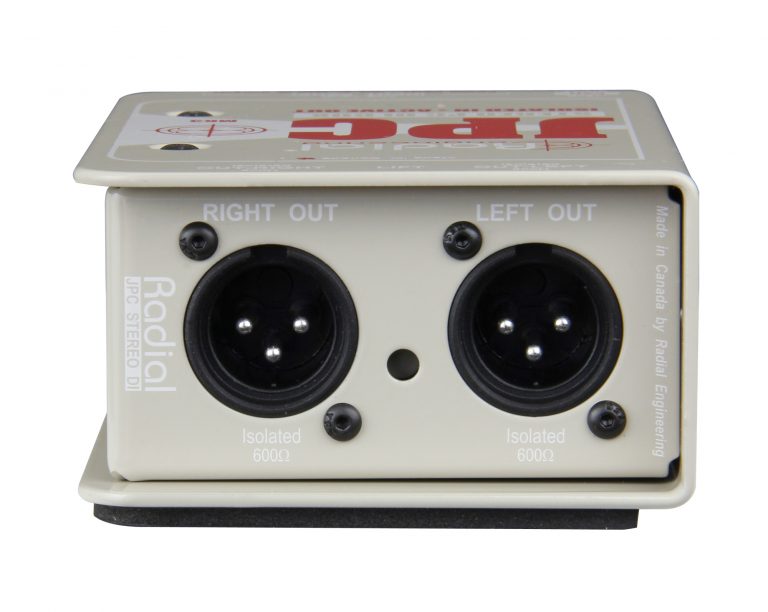

XLR Outputs

Balanced 600Ω mic level output, feeds mixer or mic preamp.

1

Ground Lift

Lifts pin 1 at XLR to reduce hum and buzz caused by ground loops.

2

JPC Resources

Part no: R800 1026 00
