JS2 Specifications

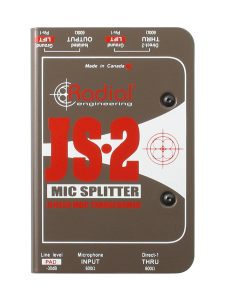

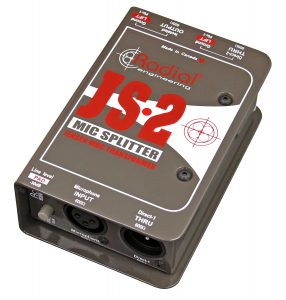

The Radial JS2 mic splitter is a passive device that employs a Jensen transformer to perform the mic bridging and as such, all technical specifications show the isolated output. It is important to note that the JS2 has been optimized for use at mic levels and each device is supplemented with MuMETAL® shielding and a solid steel enclosure to ensure minimal pollution from outside magnetic interference.

Audio circuit type: Passive mic/line splitter, transformer based
Transformer: JT-MB-CPC, 1:1 ratio

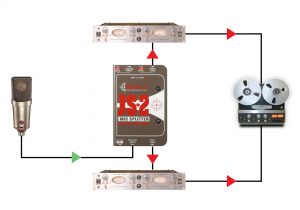

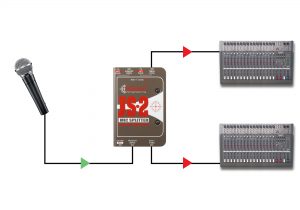

Number of channels: Three-way splitter (one in/three out)
Frequency response: 20Hz ~ 20KHz (+0dB/ -2dB)

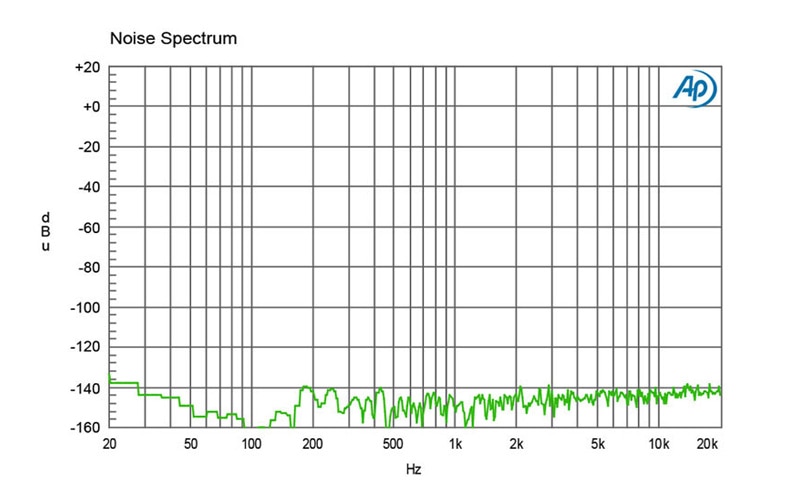

Dynamic range: 140dB

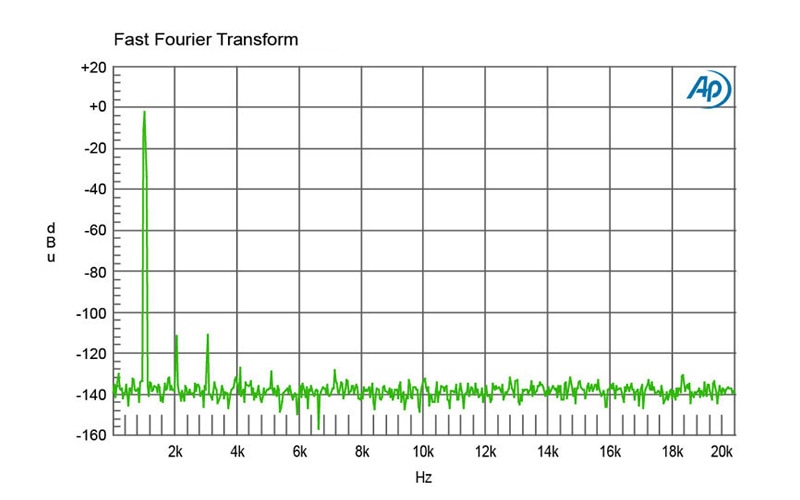

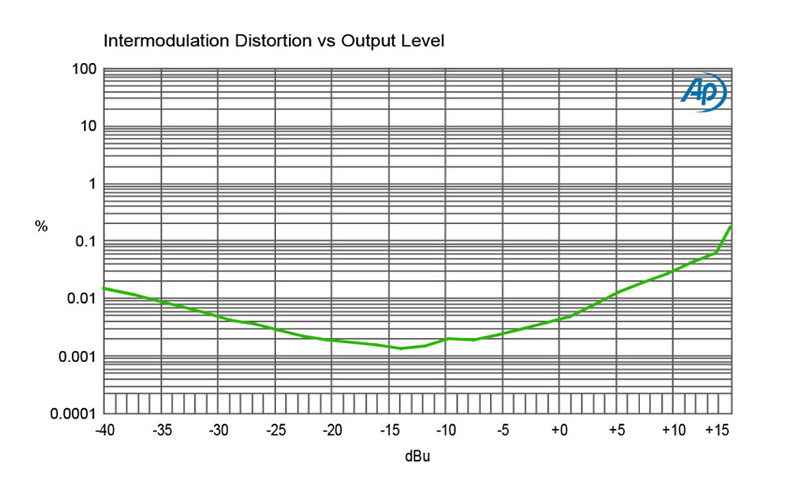

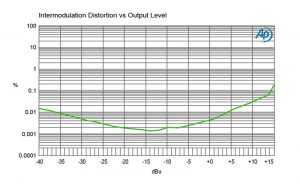

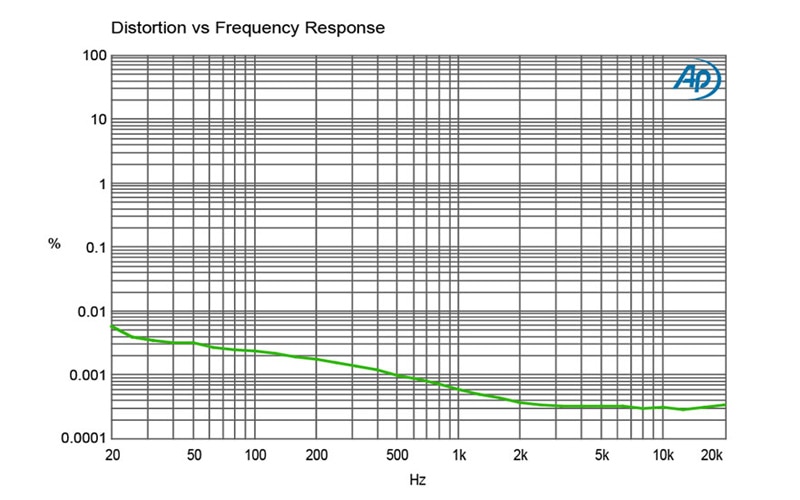

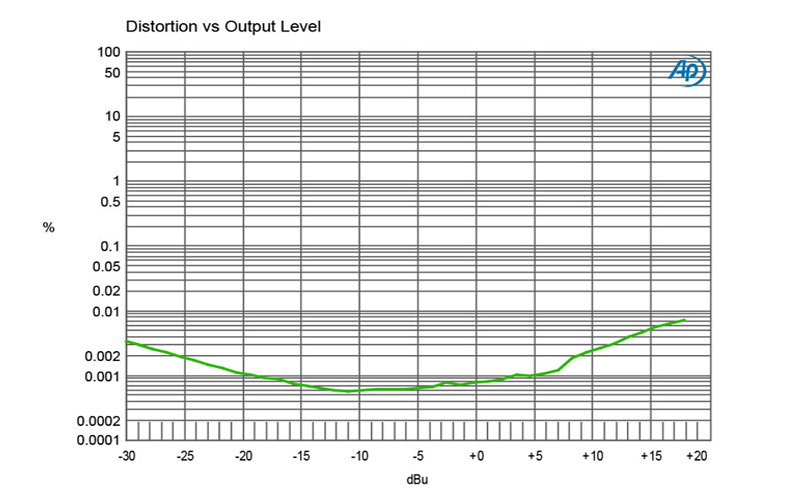

Total harmonic distortion: 0.0005% @ 1kHz

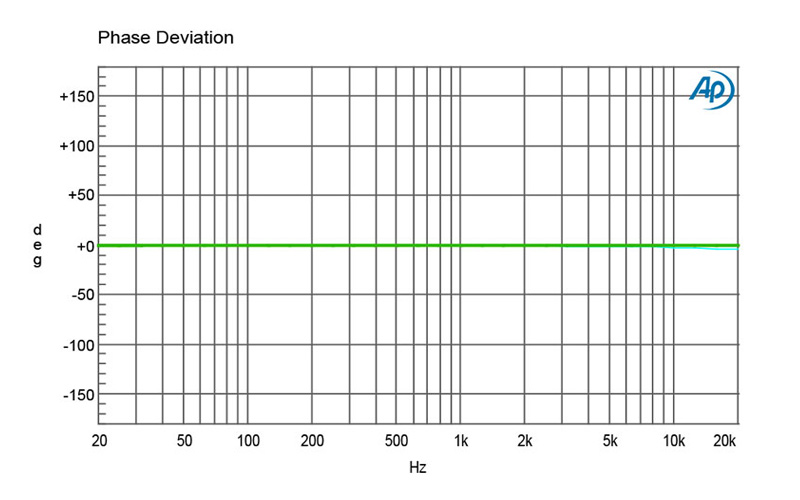

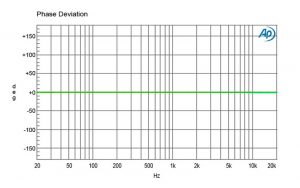

Phase Deviation: 0.7° @ 100Hz; 2.8° @ 20Hz
Input Impedance: Source dependent
Output Impedance: Source dependent
Maximum Input: +25dBu @ 1kHz
Input pad, Ground lift

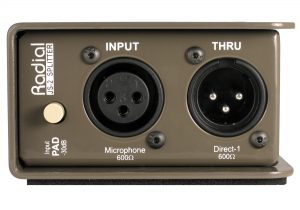

Input Connectors: XLR-F in

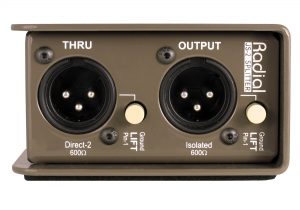

Output Connectors: Isolated output
Construction: 14-gauge steel chassis & outer shell
Size (L x W x D): 3.3" x 5.0" x 2" (84 x 127 x 48mm)
Weight: 1.55lb (0.7kg)
Shipping size (L x W x D): 4" x 3" x 6.5" (102 x 76 x 165mm)
Shipping weight: 1.92lb (0.87kg)
Power: Passive, no power required
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable

JS2 Resources

Part no: R800 1022 00
