Reduces input by 30dB to allow +4dB line-level devices to be connected.
XLR Mic Input
Standard 600Ω main input.
600Ω connects to main PA with phantom-power return path to microphone.
No Slip Pad
Provides electrical & mechanical isolation and keeps the unit from sliding around.
Book End Design
Creates a protective zone around the jacks and switches.

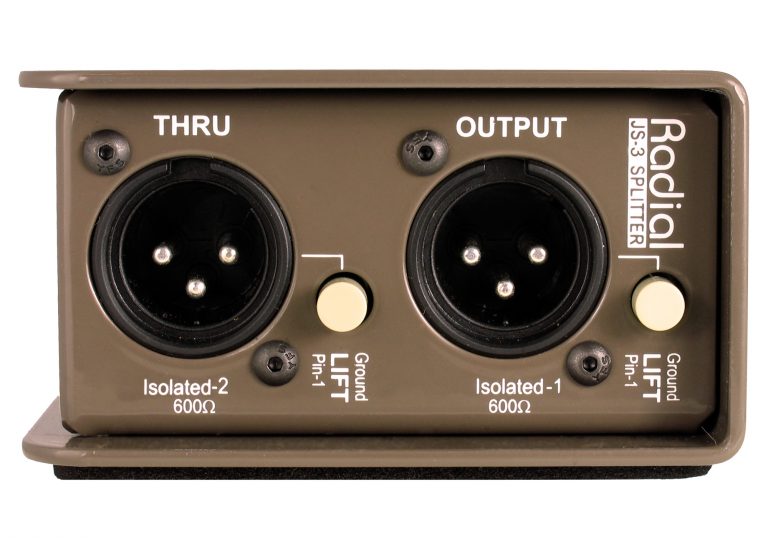

Disconnects the ground path at the XLR output.

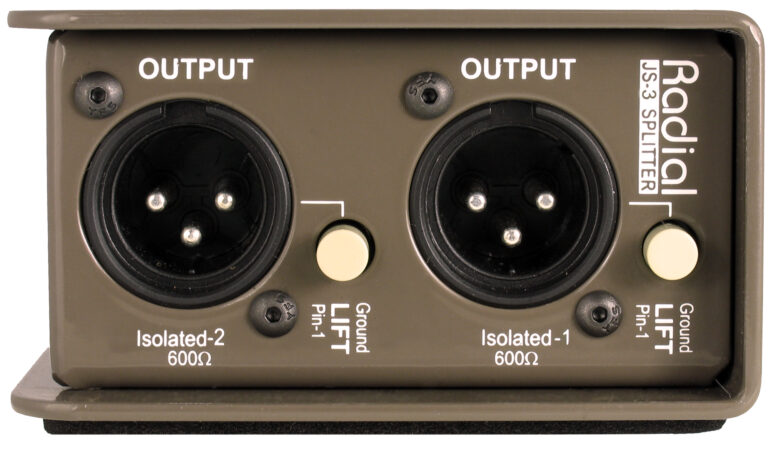

Isolated 600Ω connects to a recording or broadcast system without noise.
I-beam enclosure makes it imposible to torque the PC board; eliminates cold solder joints.
