The Radial JS3 mic splitter is a passive device that employs a Jensen transformer to perform the mic bridging and as such, all technical specifications show the isolated output. It is important to note that the JS3 has been optimized for use at mic levels and each device is supplemented with MuMETAL® shielding and a solid steel enclosure to ensure minimal pollution from outside magnetic interference.
Specifications

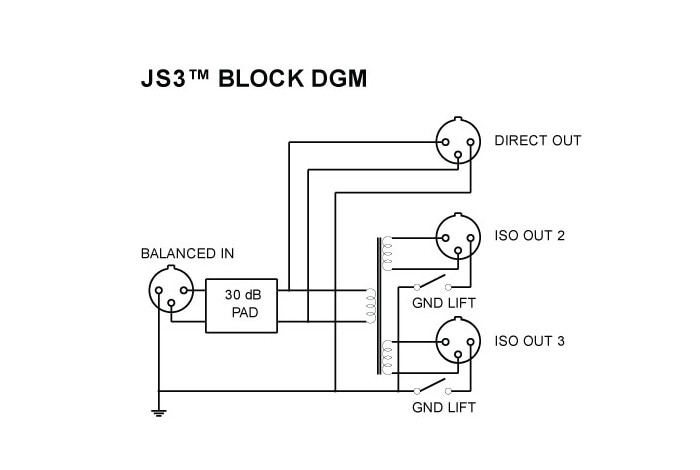

Block Diagram
Graphs
| Specifications | ||
|---|---|---|
| Audio circuit type: | Passive mic/line splitter, transformer based | |
| Transformer: | JT-MB-DPC, 1:1:1 ratio | |
| Number of channels: | Three-way splitter (one in/three out) | |
| Frequency response: | 20Hz ~ 20KHz (+0dB/ -2dB) | |
| Dynamic range: | 140dB | |
| Total harmonic distortion: | 0.0005% @ 1kHz | |
| Phase Deviation: | 0.7° @ 100Hz; 2.8° @ 20Hz | |
| Input Impedance: | Source dependent | |
| Output Impedance: | Source dependent | |
| Maximum Input: | +25dBu @ 1kHz | |
| Features | ||
| Input pad, Ground lift | ||
| Input Connectors: | XLR-F in | |
| Output Connectors: | Two isolated outputs | |
| General | ||
| Construction: | 14-gauge steel chassis & outer shell | |
| Size (L x W x D): | 3.3" x 5.0" x 2" (84 x 127 x 48mm) | |
| Weight: | 1.55lb (0.7kg) | |
| Shipping size (L x W x D): | 4" x 3" x 6.5" (102 x 76 x 165mm) | |
| Shipping weight: | 1.92lb (0.87kg) | |
| Power: | Passive, no power required | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |
