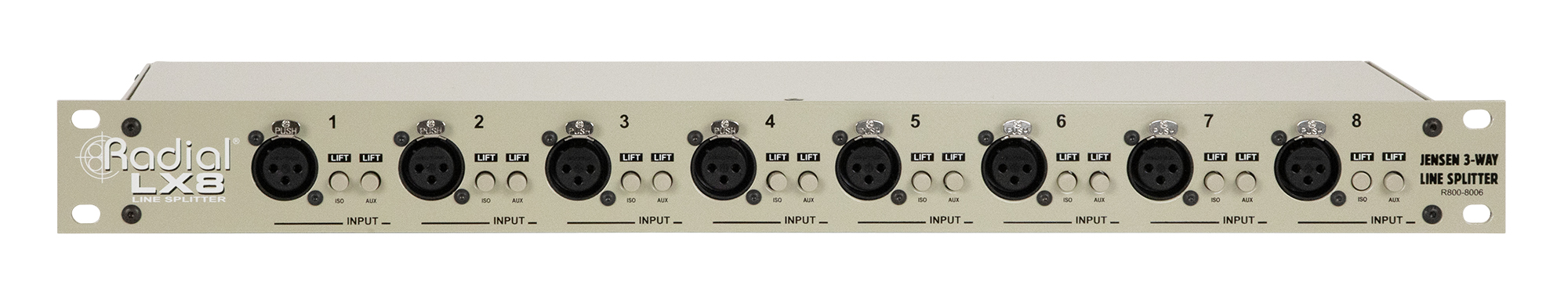

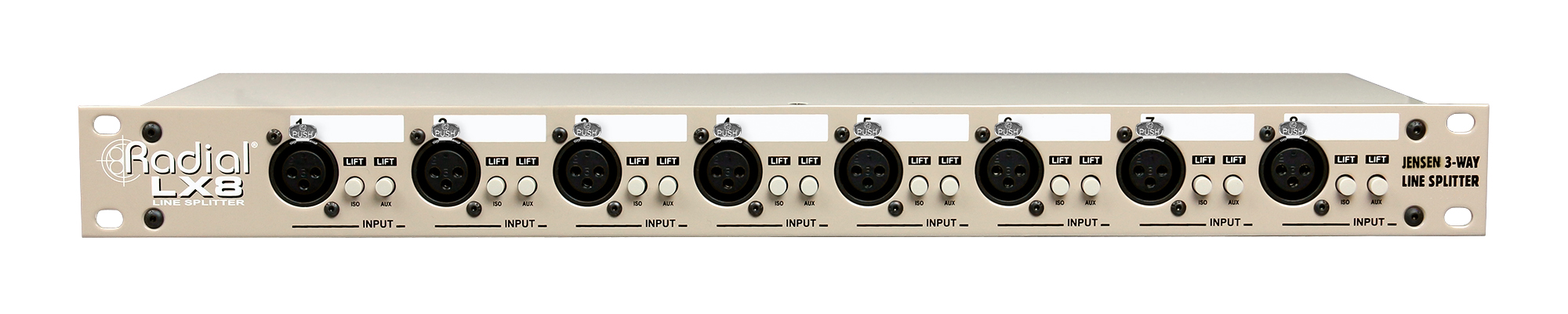

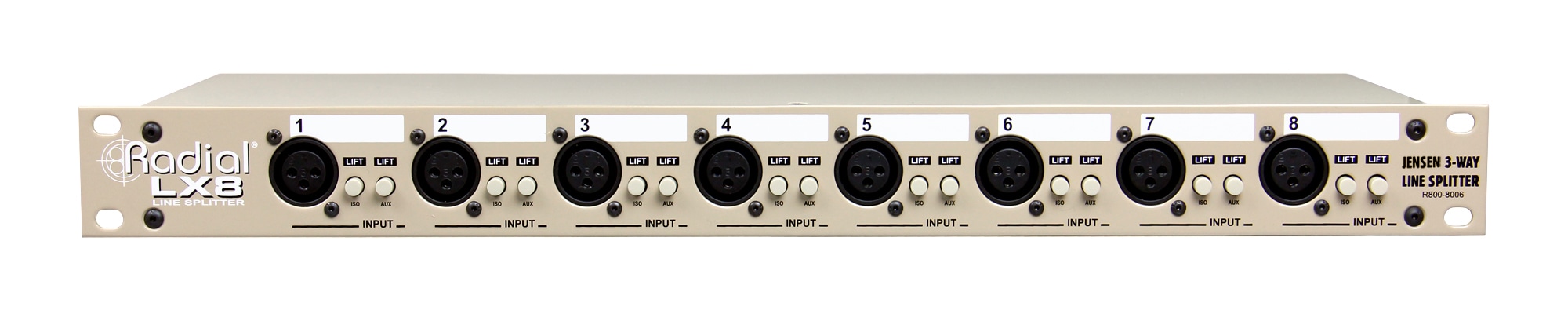

XLR Line Input
Balanced 600Ohm input wired in parallel with rear panel D-sub.
1
ID Labels
For wax pencil. Makes setups easy. A great help when troubleshooting!
2
ISO Ground Lift
Disconnects the ground on the isolated D-sub output to help eliminate ground loops.
3
AUX Ground Lift
Disconnects the ground on the auxilirary D-sub output to help eliminate ground loops.
4

1
2
3
4

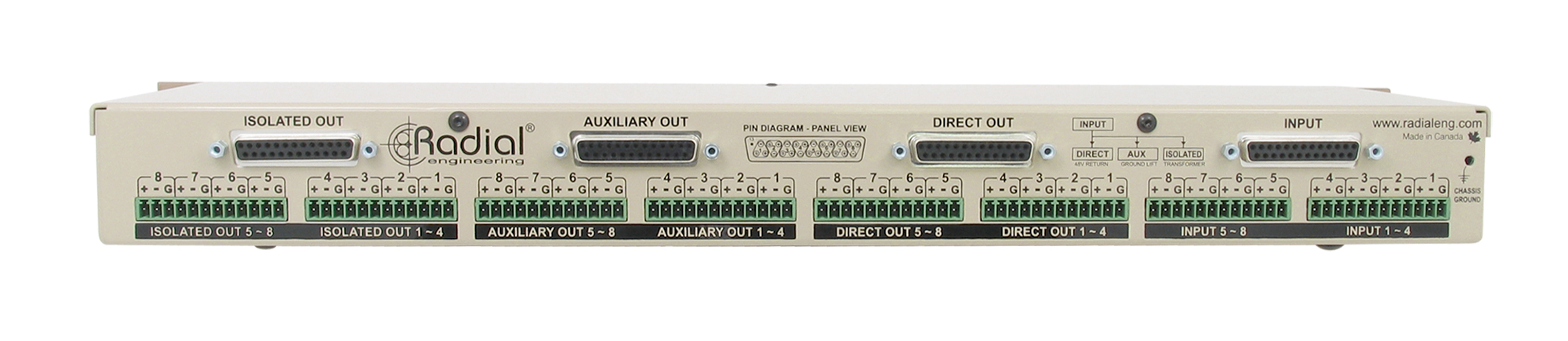

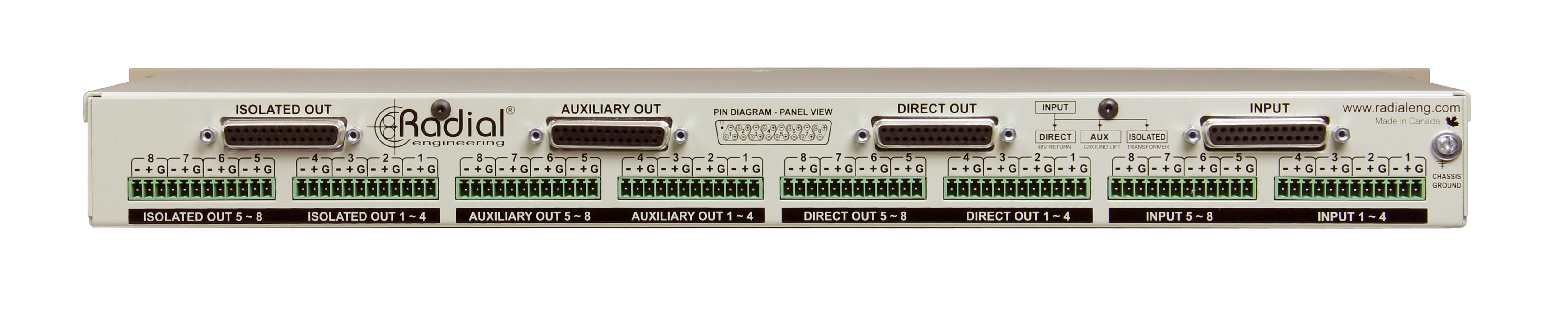

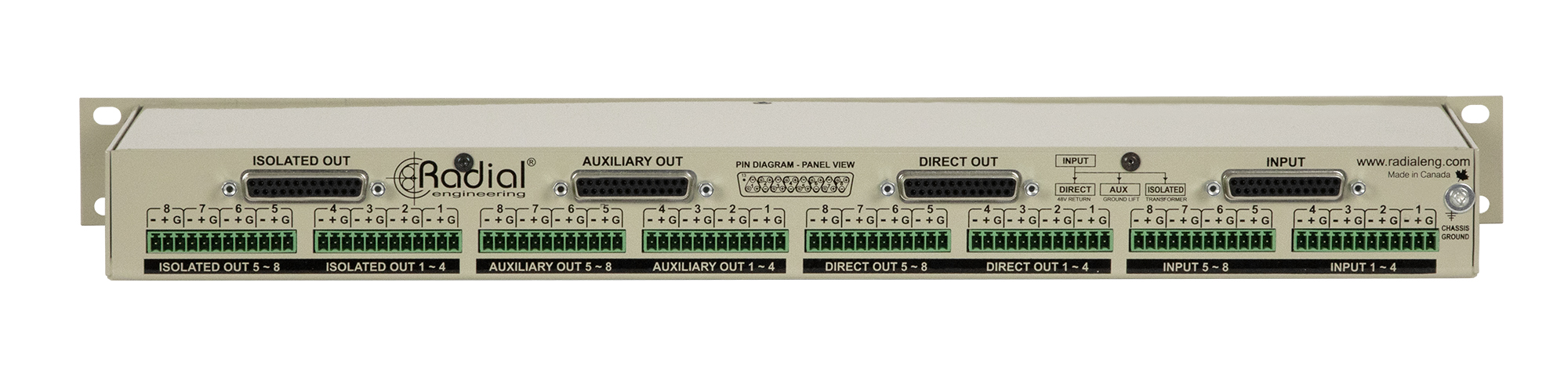

ISO Output
output set offers choice of 25-pin D-sub connector for 8 channel cable harness or Phoenix Euroblock connection for permanent installation.
1
AUX Output
Direct ouput with front-panel ground lift switch allows hard-wire passive split for monitors, broadcasts, or second PA.
2
Direct Output
This output is coupled directly with the input for direct feed through.
3
Input
Balanced input with choice of 25 pin D-sub, Phoenix Euroblock, or front panel XLR connections.
4
