McBoost Specifications
Specifications

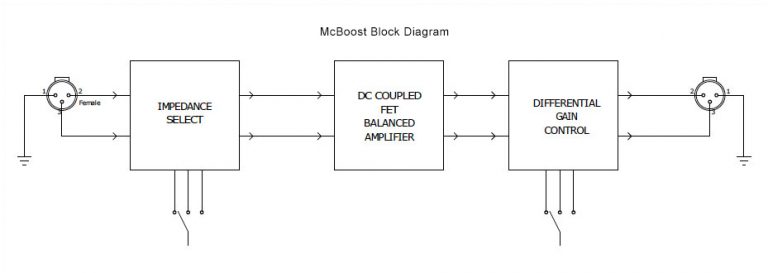

Block Diagram

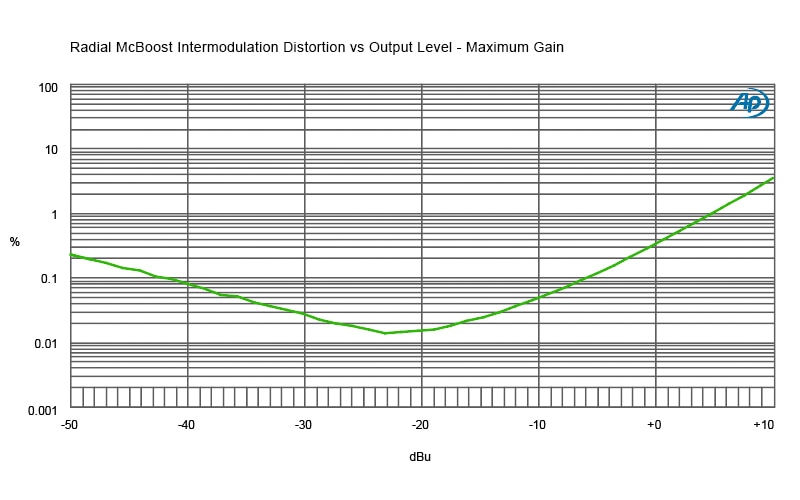

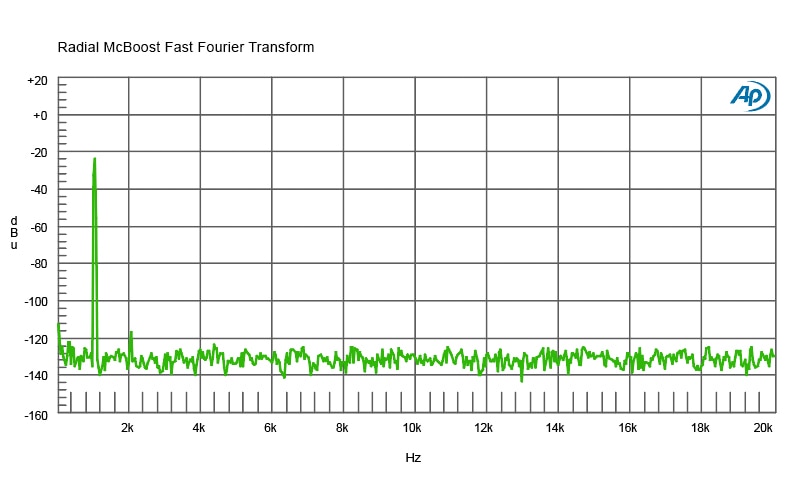

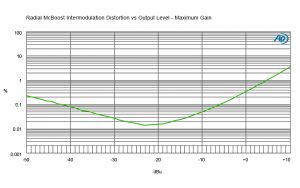

Graphs
| Specifications | ||
|---|---|---|
| Audio circuit type: | Class-A Differential DC Coupled FET | |
| Frequency response: | <7Hz to >30kHz | |
| Dynamic range: | 116dB | |
| Gain: | +26dB Full Gain, +20dB Half Gain, +4dB to +25dB Variable Gain | |
| Clip Level: | +16dBu (output) | |

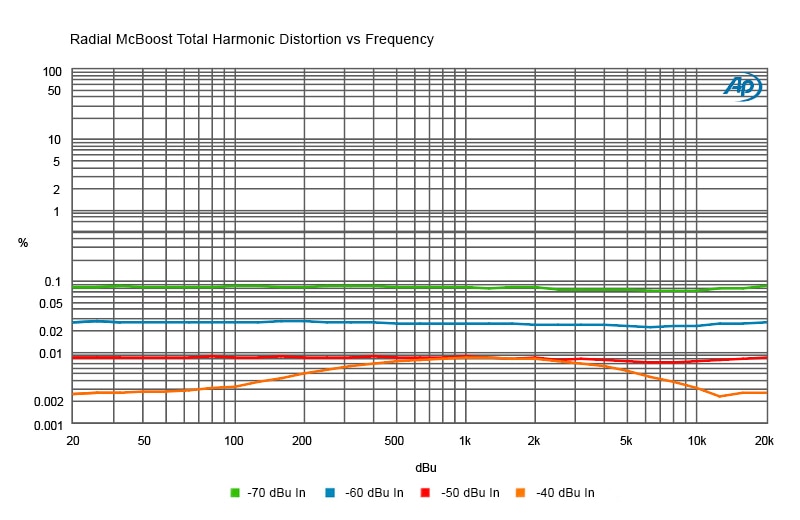

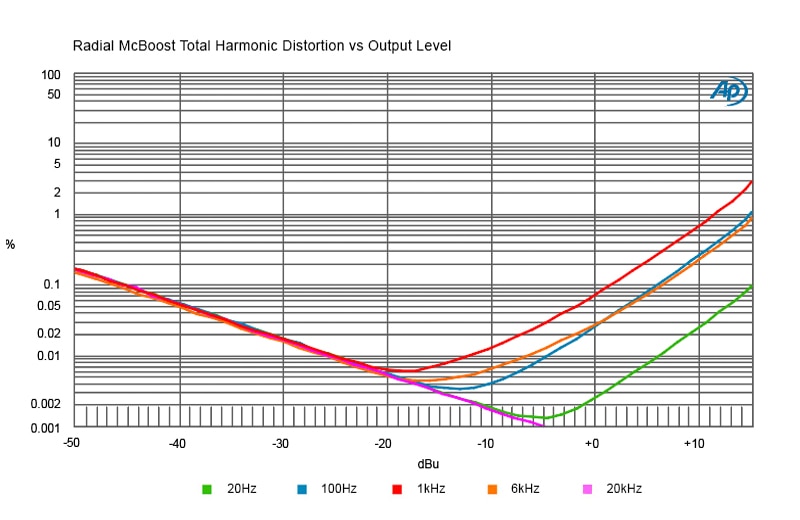

| Total harmonic distortion: | 0.006% | |
| Intermodulation Distortion: | 0.01% | |

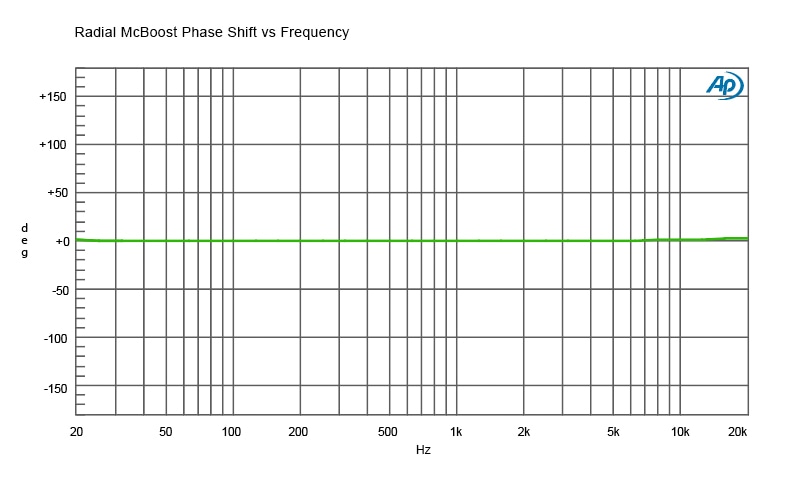

| Phase Deviation: | <10° | |
| Input Impedance: | 600Ω / 2.7kΩ / 30kΩ | |
| Output Impedance: | 220Ω | |
| Common Mode Rejection Ratio: | >50dB | |
| Equivalent Input Noise: | -125dBu | |

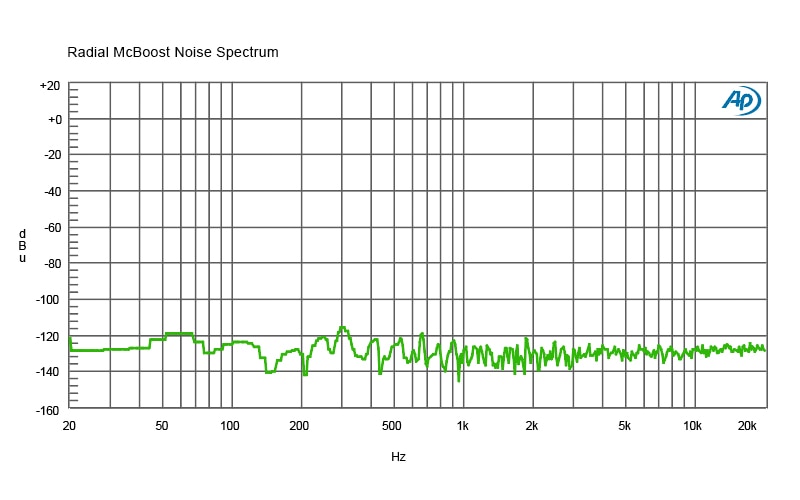

| Noise Floor: | -100dBu / -110dBu | |
| Features | ||
| Input Connectors: | XLR female output | |
| Output Connectors: | XLR male output | |
| General | ||
| Construction: | Cold Rolled Steel | |
| Power: | Phantom Power - 48V | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |

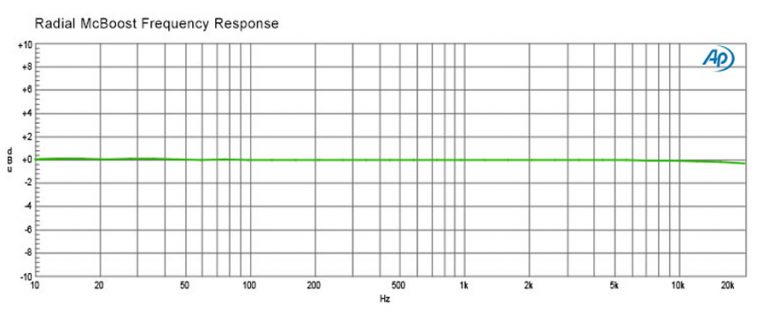

Frequency Response
What do these graphs mean? Learn what to look for and why it matters.
