Mix-Blender Specifications

Specifications

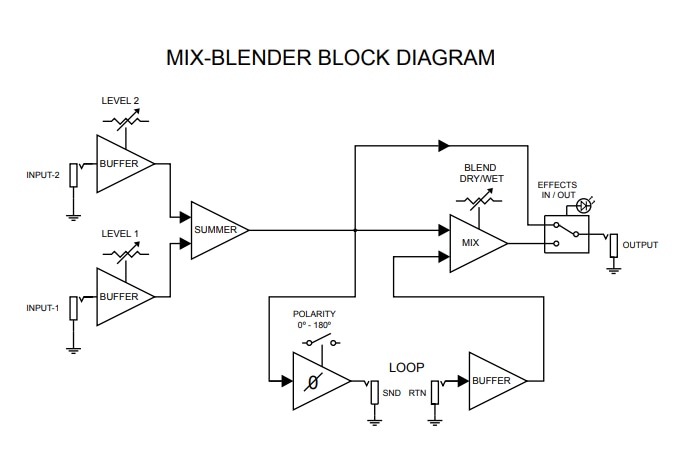

Audio circuit type: Discrete Class-A main audio path Audio Grade IC send-return loop

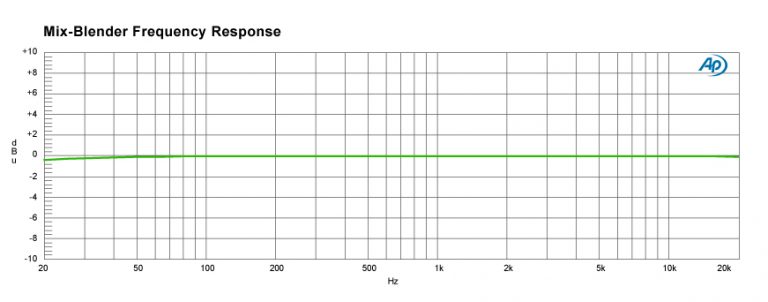

Frequency response: 20Hz - 20KHz +0/-2dB
Dynamic range: 104dB
Gain: -30dB maximum gain (FX Off), +2dB maximum gain (FX On)

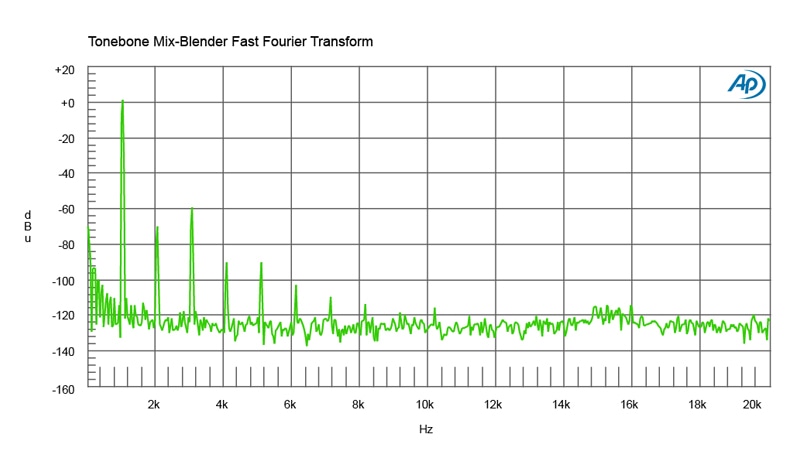

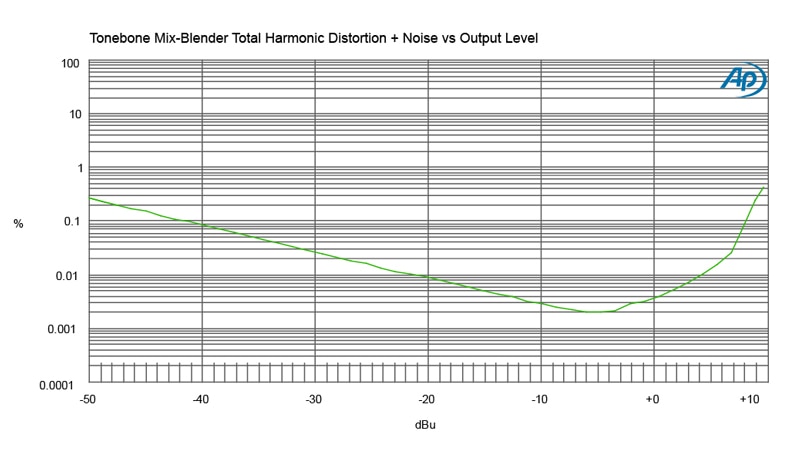

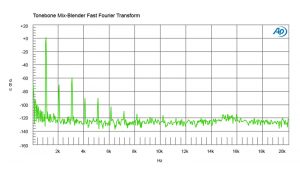

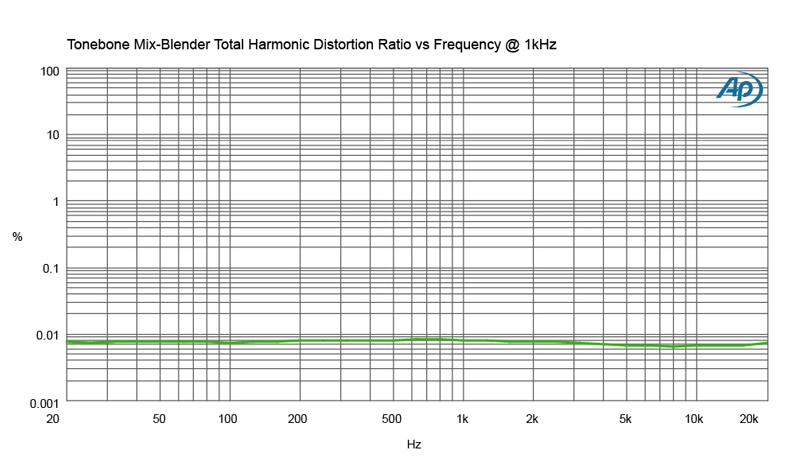

Total harmonic distortion: 0.01%
Intermodulation Distortion: 0.02%

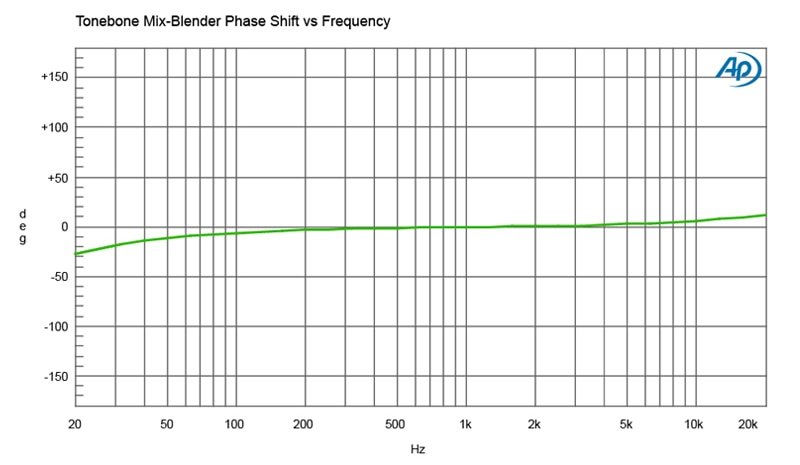

Phase Deviation: <10º at 100Hz
Input Impedance: -220k

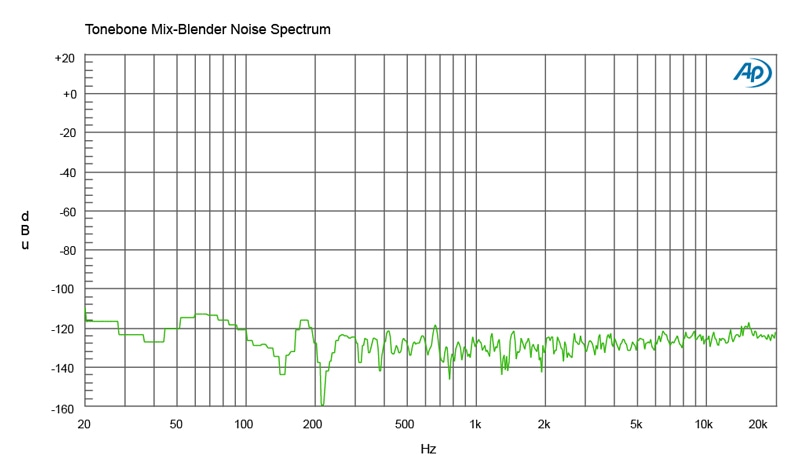

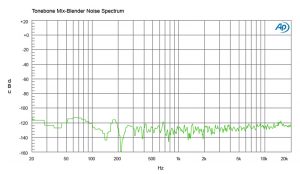

Equivalent Input Noise: -97dBu
Maximum Input: +10dBu
Features
General
Construction: 14-gauge steel chassis and outer shell
Size (L x W x D): 4.62" x 3.5" x 2" (117.3 x 88.9 x 50.8mm)
Weight: 1.35 lbs (0.61kg)
Shipping size (L x W x D): 6.5" x 4.1" x 3" (165.1 x 104.65 x 76.2mm)
Shipping weight: 1.6lb lbs (0.72kg)
Power: 9V / 100mA (or more) Adapter
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable

Mix-Blender Resources

Part no: R800 7207 00
