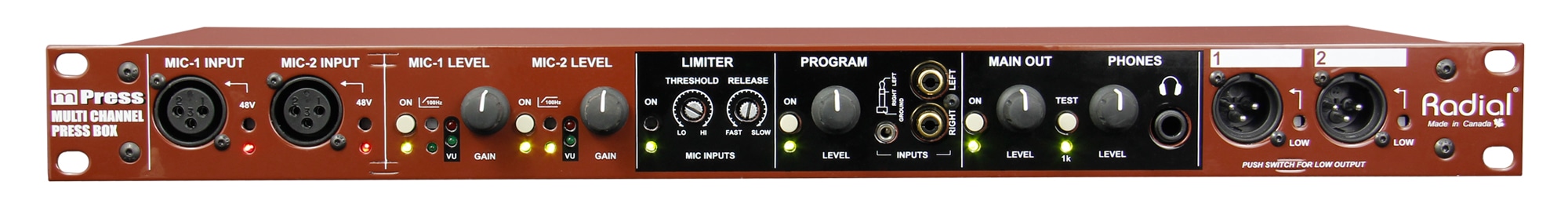

MIC 1/2
XLR-F inputs used to connect two microphones to the mPress.
48V
Recessed switch activates 48V phantom power.
On
Used to turn on each microphone.
HPF
High-pass filter eliminates excessive resonance and proximity build-up.
Gain
Control to set the microphone input level.
LEDs
Metering lets you know signal is active or overloading.
Limiter On
Used to control ballistics and reduce opportunity for distortion.
Threshold
Sets the input voltage level where the limiter begins to work.
Release
Used to set the speed at which the limiter resets itself.
Program
Activates the program inputs with adjustable level control for consumer devices.
Input
3.5mm and RCA consumer line level for laptop, tablet or iPod music playback.
Main Out
Activates the left and right main outputs with level control.
Test
Activates a 1kHz test tone to test recorder inputs.
Phones
¼" TRS headphone output with level control.
1-2 Gallery Outputs
First two dual level outputs with mic level and high setting to feed the Exo-Pods.

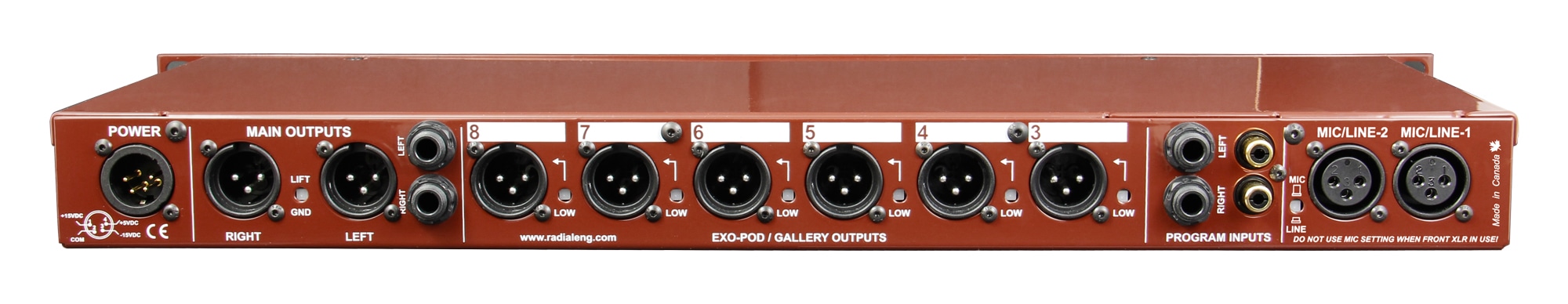

Power
100V to 240V input with secure XLR connection for the power supply.
XLR Main Outputs
Used to feed a pair of powered speakers to supply audio to the audience.
Ground Lift
Ground lift switch disconnects ground on pin-1 at the XLR program outputs.
1/4" Main Outs
Used to feed a pair of powered speakers to supply audio to the audience.
Low-High
Recessed switch sets the output for a recorder or the Exo-Pod.

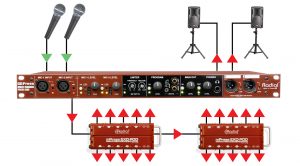

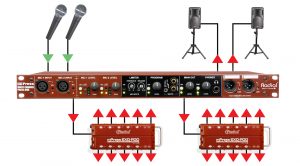

Exo-Pod Gallery Outputs
Dual level outputs with mic level and high setting to feed a recorder or Exo-Pods.
Program Inputs
¼" and RCA music playback inputs are wired in parallel with the 3.5mm front panel jack.
Mic/Line
Recessed switch sets both rear XLR inputs to mic level or line operation.
Mic/Line Inputs
hen set to MIC, these are wired in parallel with the front panel XLR inputs. When set to LINE, they bypass the mic preamps and directly feed the main and gallery outputs.
