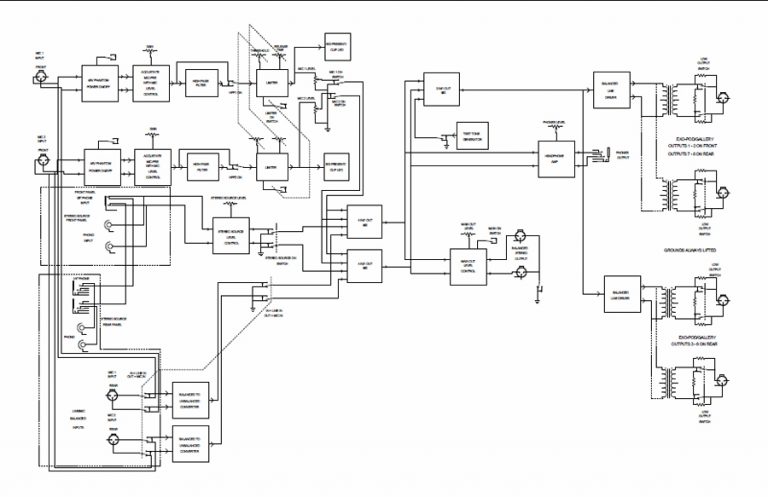

Block Diagram

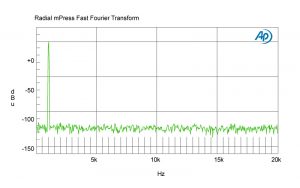

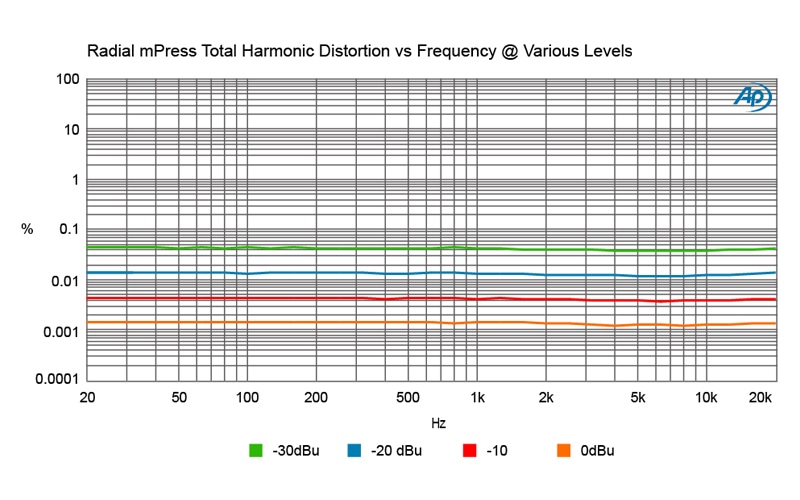

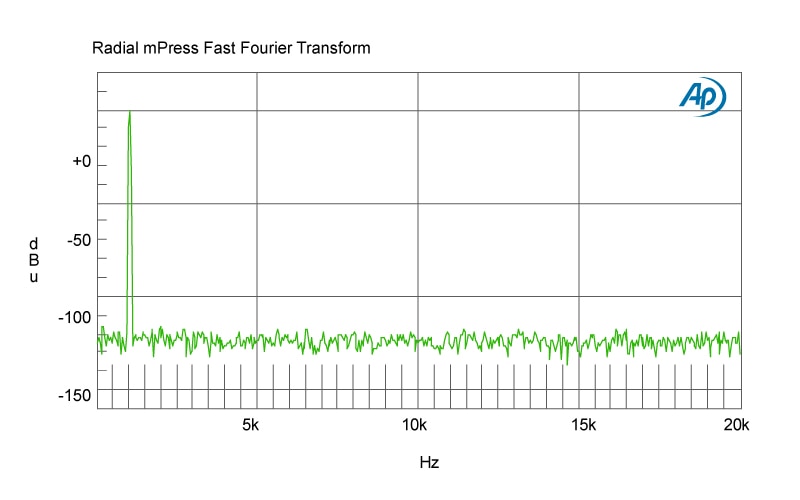

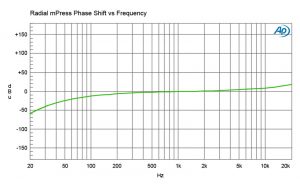

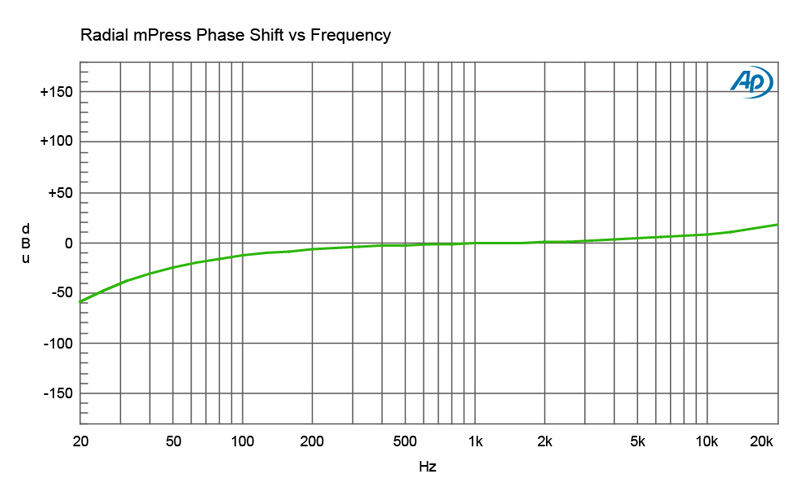

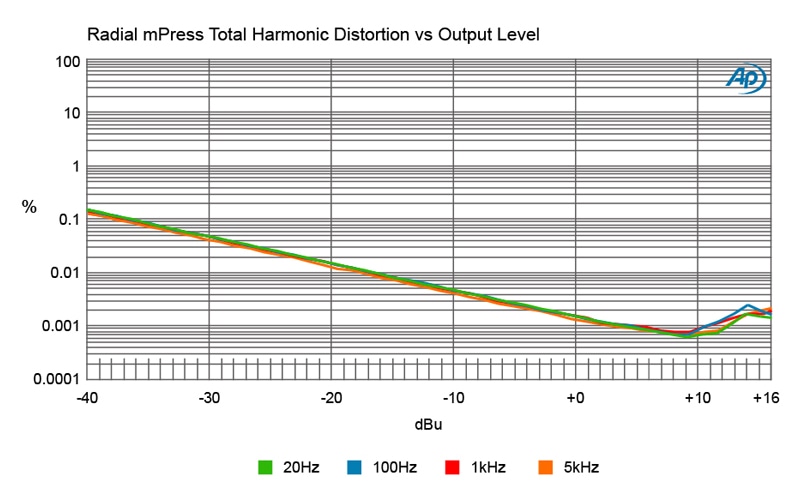

Graphs
Specifications | ||
---|---|---|
Audio circuit type: | Low Noise Active Buffer | |
Frequency response: | 20Hz to >20KHz +0/-1.5dB | |
Dynamic range: | >112dB | |
Gain: | +51dB (Microphone), 0dB (Line Input), +19dB (Program) | |
Clip Level: | +24dBu/+17dBu (Main Output) | |
Total harmonic distortion: | <0.001% @ +4dB | |
Intermodulation Distortion: | 0.002% (Main Output) | |
Phase Deviation: | ±15° (Exo-Pod Output) | |
Input Impedance: | 7k Ω (Microphone), 22K Ω (Program) | |
Output Impedance: | 880 Ω (Main Output), 115 Ω (Exo-Pod Output) | |
Equivalent Input Noise: | -111dBu (Main Output) | |

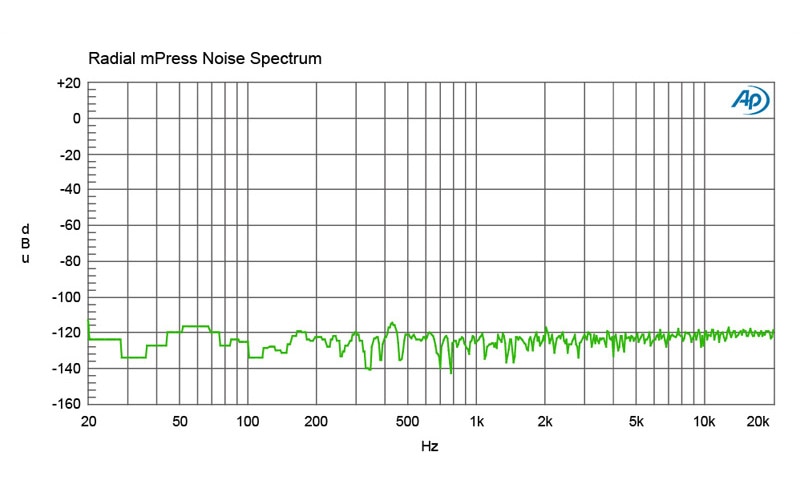

Noise Floor: | -94dBu (Microphone), -80/-92dBu (Exo-Pod Output - Program In to Main Out) | |
Features | ||
Input Connectors: | 4 XLR female inputs, 6 ¼" program inputs, XLR power supply input | |
Output Connectors: | 2 XLR male gallery outputs, 2 XLR male main outputs, 6 XLR male Exo-Pod/gallery outputs, 2 ¼" main outputs | |

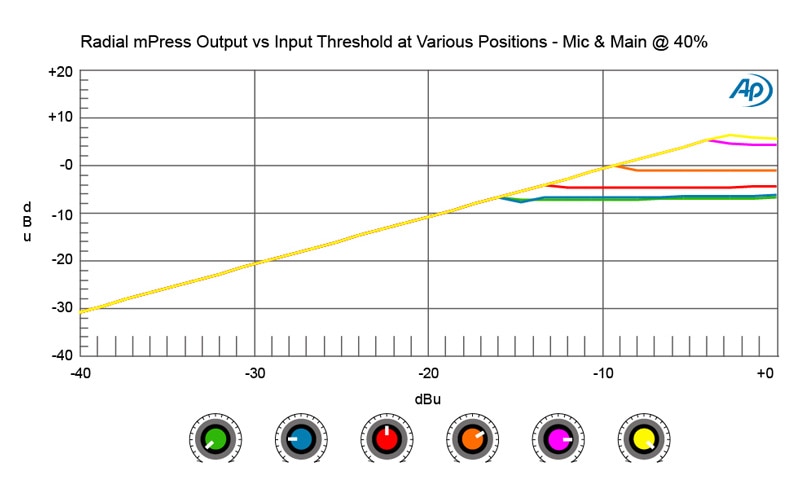

Extras: | Low-Cut Filter: 100Hz (12dB/Octave) (Microphone), Limiter Threshold: -10dBu to +5dBu Output (Microphone), Limiter Ratio (>20:1) (Microphone), Microphone Signal Present LED Threshold: -70dBu/-54dBu/-42dBu (Exo-Pod Output) | |
General | ||
Construction: | 14-gauge steel chassis & outer shell | |
Size (L x W x D): | 19" x 7" x 1.62" (48.26cm x 17.8cm x 4.13cm) | |
Weight: | 6.25lb (2.83kg) | |
Shipping size (L x W x D): | 22" x 10.375" x 4.5" (55.9cm x 26.4cm x 11.4cm) | |
Shipping weight: | 8.9lb (4.04kg) | |
Power: | ±15V/+5V custom power supply | |
Conditions: | For use in dry locations only between 5°C and 40°C | |
Warranty: | Radial 3-year, transferable |

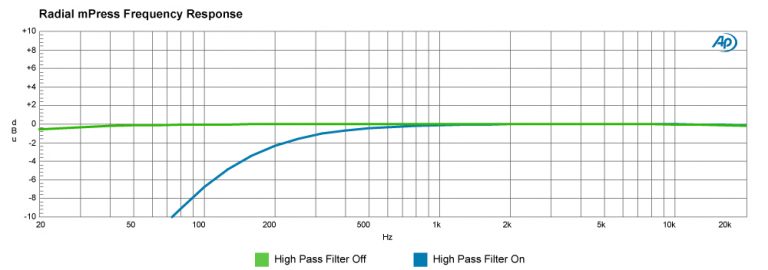

Frequency Response
