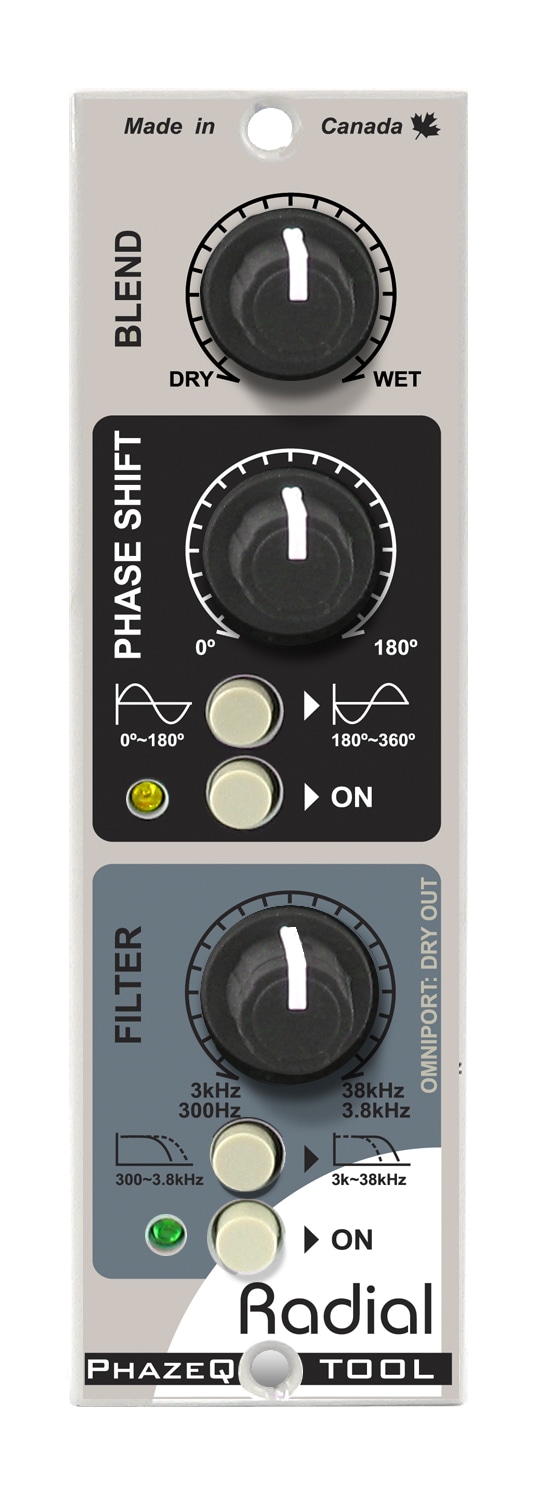

Blend
Used to control the mix between the original dry signal and the wet phased effect.
1
Phase Shift
Adjusts the analogue phase shift from 0º to 180º as you rotate the knob clockwise.
2
Invert
Reverses the polarity of the wet signal to extend the phase shift from 180º to 360º.
3
Phase On
Bypass with LED indicator lets you switch off the phase shift effect to compare sounds.
4
Filter
Lets you apply a low pass filter on the phased signal to focus the effect on the bass frequencies.
5
Shift
Extends the filter range from 3kHz ~ 38kHz to 300Hz ~ 3.8kHz to better focus the effect of the filter.
6
Shift On
Bypass with LED indicator lets you switch off the filter to compare the effect it has on the signal path.
7
Omniport
Dry track output used to feed other devices. Available when used with the Workhorse.
