Powerhouse Features

1
2
3
4
5

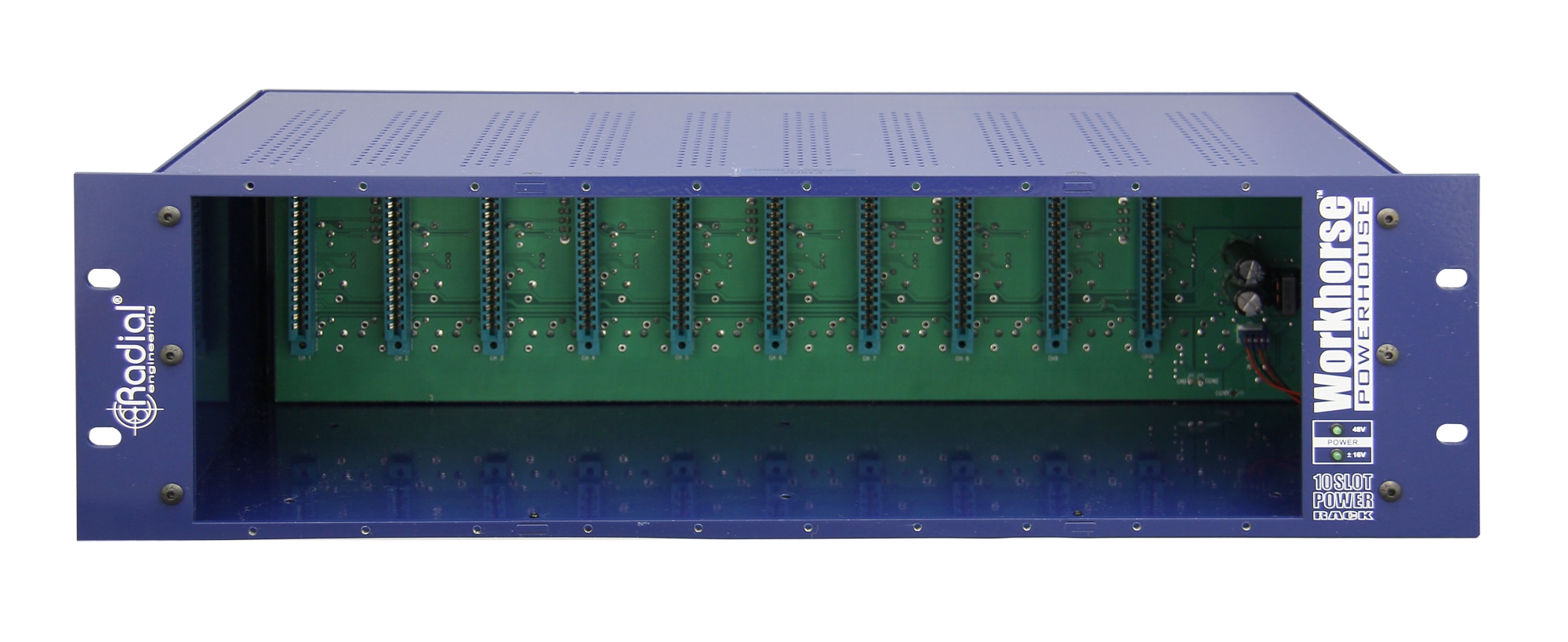

10 Space Rack

Fully compatible with older 500 series racks, the Powerhouse gives you 10 spaces for plenty of room to create the most elaborate signal chains.

1

Safety Circuit

Built inside all Workhorse racks are special safety circuits for each module to protect the rack and adjacent modules from mishap.

2

Standard 19" Rack

Suited for recording studios, broadcast stations and live touring, the Powerhouse fits all standard 19” racks using only three spaces. (3RU)

3

Mil-Spec PCB

Double sided military grade circuit board with through hole parts that are soldered on both sides for improved performance. Full ground plane to reduce noise.

4

Solid Steel

Like all Radial products the Powerhouse is made ‘road ready’ with 14 gauge steel construction and welded corners for greater durability and improved shielding.

5
1
2
3
4
5
6
7

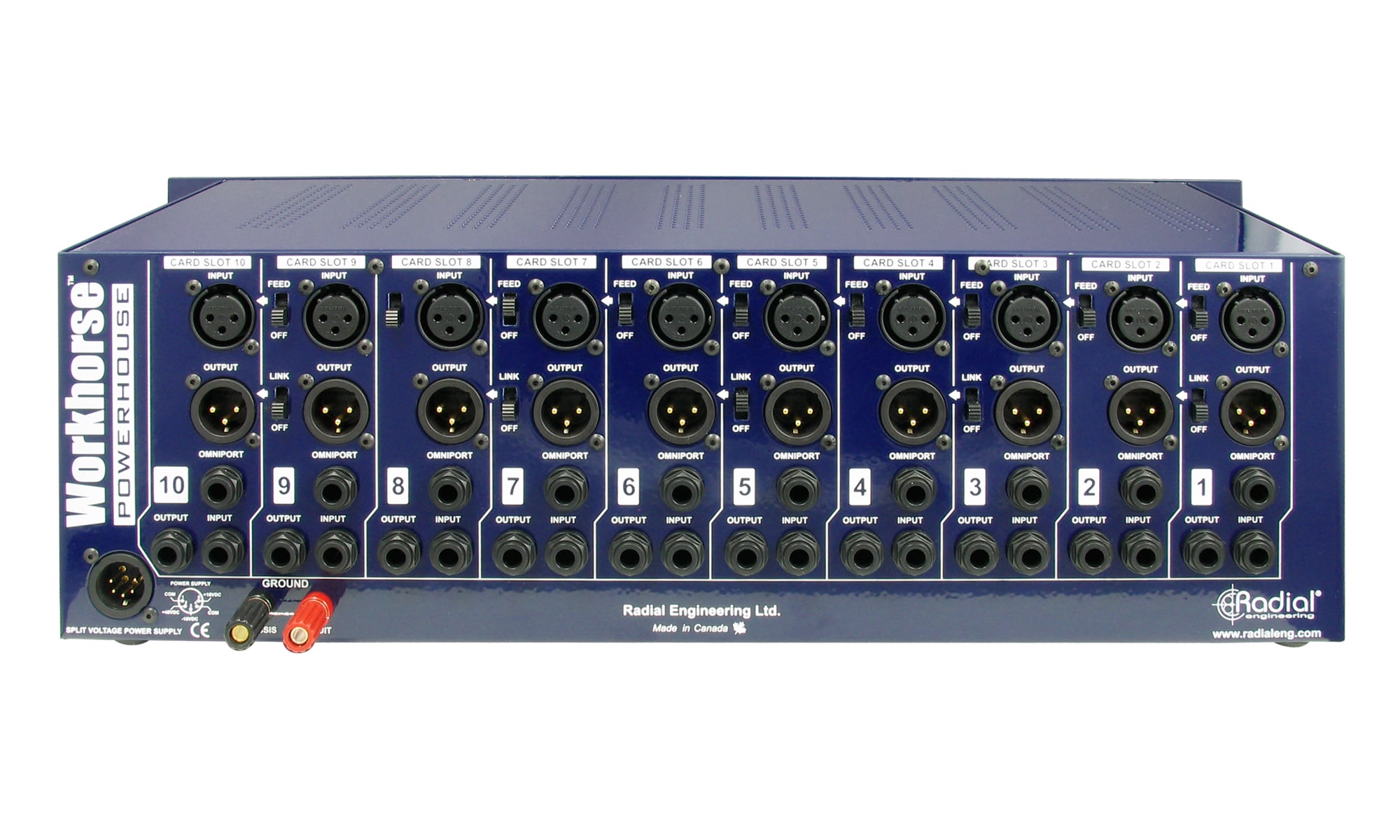

External Power

To keep noise out of the box, the Powerhouse employs an external supply just like full-size studio mixers. A 5-pin XLR is used to secure the power cable.

1

Ground Lugs

The Powerhouse is equipped separate chassis and earth ground lugs for studios with sophisticated grounding schemes. Rear panel mounted for easy access.

2

Stereo Link

Unlike older racks that require soldering, linking two channels in stereo is done by sliding the LINK switch in the up position.

3

TRS Connectors

¼” inputs and outputs on each slot are wired in parallel with the XLRs. Used to cross-patch modules using standard TRS cables for parallel processing.

4

XLR Connectors

Standard XLR connectors with large channel ID numbers on each slot make it quick & easy to patch with professional balanced line level gear.

5

Feed Function

The Powerhouse eliminates the need for inter-module patch cables with an innovative FEED function that sends the output from one module to the next.

6

Omniport

This ¼” TRS jack changes function depending on what module is connected. The function is determined by the manufacturer.

7

Powerhouse Resources

Part no: R700 0104 00
