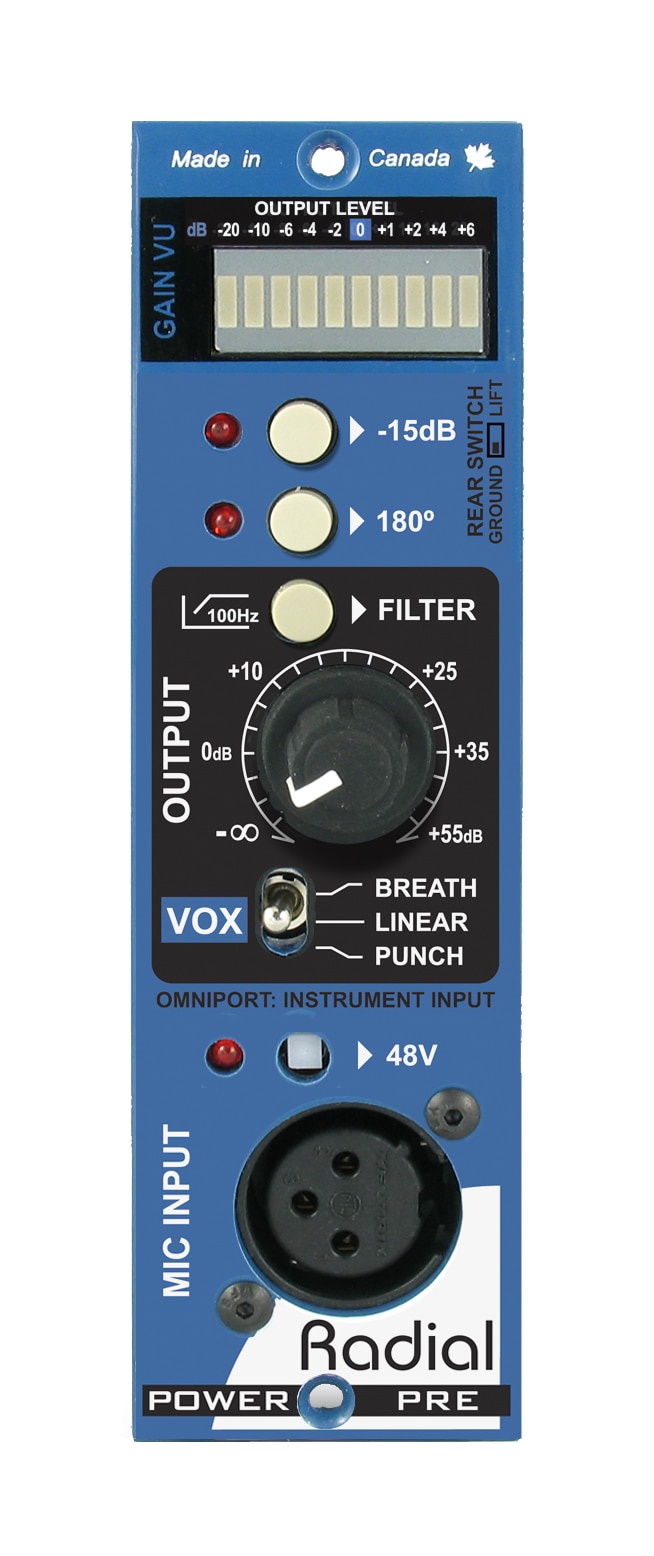

PowerPre Features

1
2
3
4
5
6
7
8
9
10

10 Segment LED

Provides visual signal status as it monitors average RMS peaks to deliver a clean, distortion-free signal to the mix buss and recording system.

1

-15dB Pad

Input pad expands the PowerPre's capabilities by allowing ultra hot signals from devices such as keyboards to be interfaced without distortion.

2

180┬░

Polarity reverse used to phase-align two signals for greater accuracy or as a creative element during the recording process.

3

Filter

100Hz high-pass filter removes low frequency to help eliminate excessive bass and is particularly useful when layering acoustic tracks.

4

Output

Fully adjustable gain control features dual taper Accustate drive circuit that keeps noise down. 55dB of gain for all types of microphones.

5

VOX

3-position switch lets you change the tonal character of the preamp. Breath adds 'air and clarity' to help vocals cut through; punch adds warmth to the bottom end to fatten up a track.

6

48V

Phantom power for condesers is equipped with power-on LED and recessed to prevent accidental use that could damage ribbon mics.

7

Mic Input

XLR female connectors is conveniently located on the front panel and placed at the bottom to keep the cables out of the way of controls.

8

XLR Output

Equipped with Hammond broadcast transformer for smooth, warm response while being able to handle extreme transients without choking.

9

OmniPort

Rear mounted 1/4" instrument input, allows guitar and bass to be recorded direct. Available when used with the Radial Workhorse.

10

PowerPre Resources

Part no: R700 0110 00
