PowerPre Specifications

The PowerPre has been optimized for sonic character while still delivering exceptional specifications. With 55dB of pure gain, yet measuring less than -122dBu of noise and greater than 97dB of dynamic handling, the PowerPre is more than capable of handling just about any microphone or source. During listening tests, the sound proves to be remarkably smooth yet astonishingly quiet. This is attributed to attention detail with respect to grounding and part placement along with use of the discrete electronics and the Hammond output transformer. The Vox control adds yet another dimension by introducing two carefully sculpted curves that will enhance and flatter most microphones.

Audio circuit type: 100% discrete, transformer coupled output
Frequency response: 20Hz ~ 20KHz +0/-1dB
Dynamic range: >97dB
Gain: +55dB

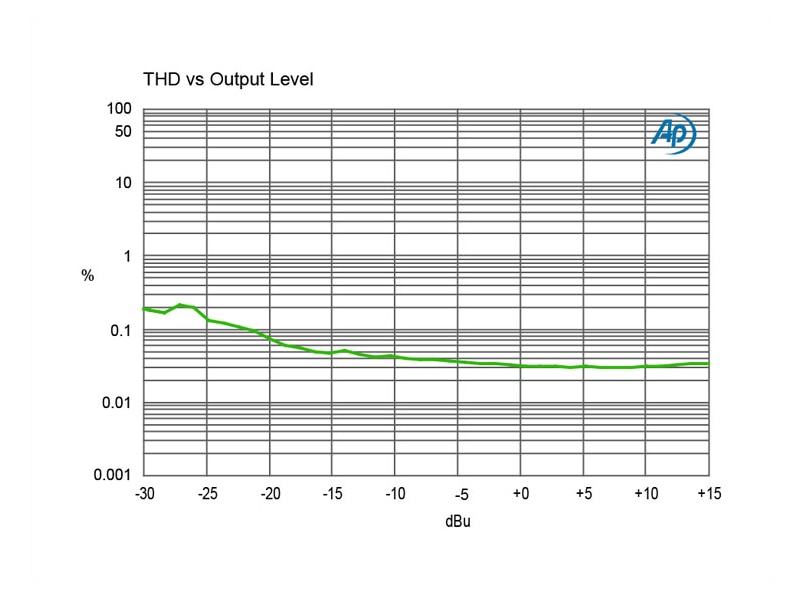

Total harmonic distortion: 0.03% @ mid gain with +10dBu output

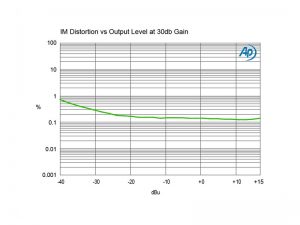

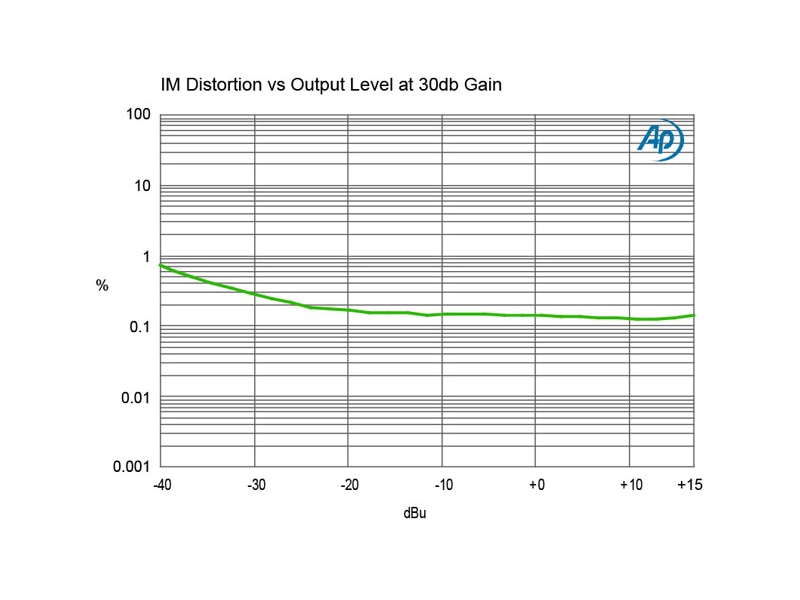

Intermodulation Distortion: 0.012% @ 50dB gain with +10dBu output
Input Impedance: 2.2kΩ (1.5kΩ with pad)
Output Impedance: 75Ω @ 1kHz
Common Mode Rejection Ratio: >75dB

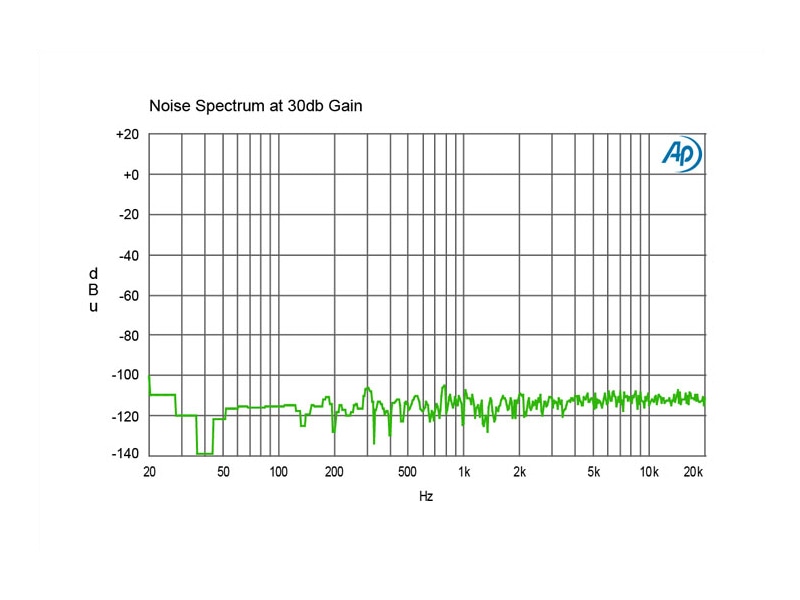

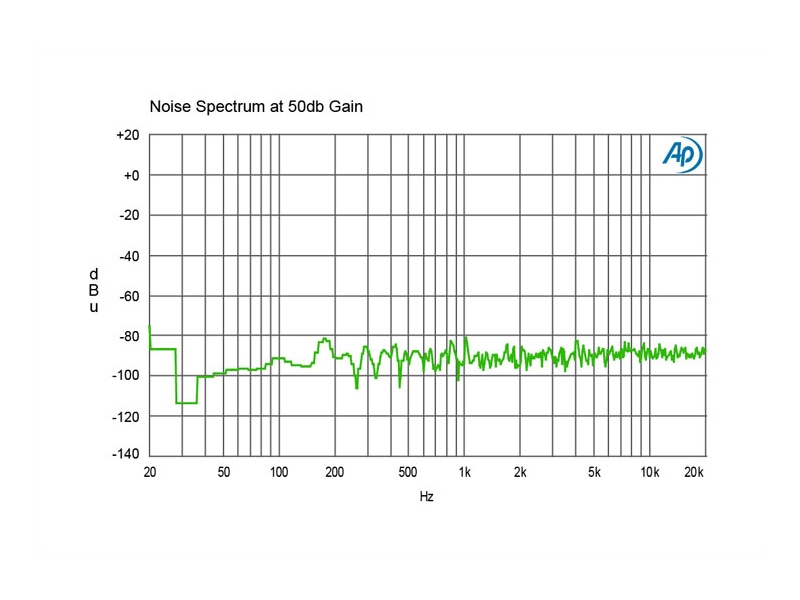

Equivalent Input Noise: -122dBu @ maximum gain
Maximum Input: +70dB when used with Workhorse*
Maximum Output: +22dBu
Maximum Power Rating: 130mA (maximum draw)

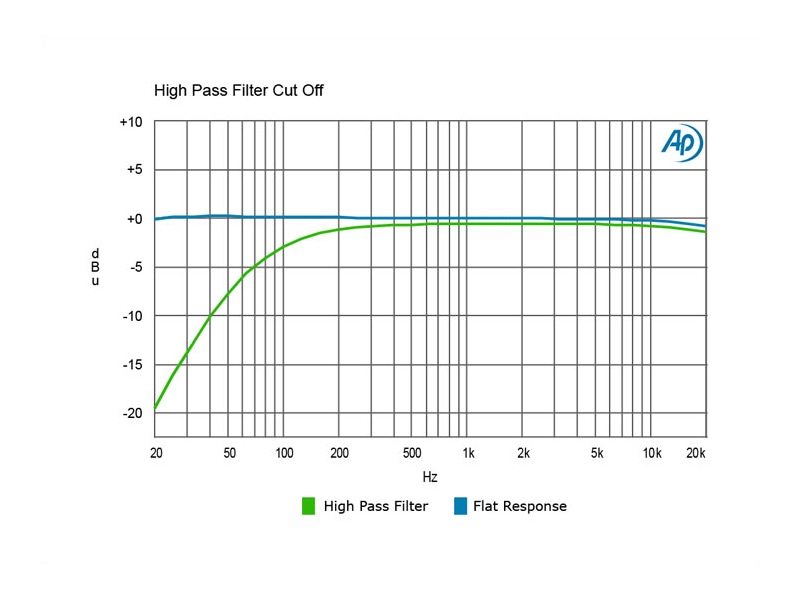

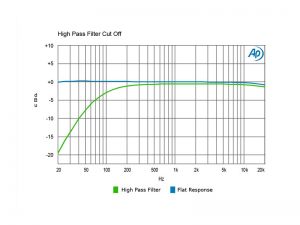

Input pad, 180° polarity reverse, Ground lift, HPF, Phantom Power
Input Connectors: XLR
Output Connectors: XLR
Weight: 1.5lbs (0.7Kg)
Shipping size (L x W x D): 9 x 6.5 x 2 (inches)
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable

PowerPre Resources

Part no: R700 0110 00
