PowerStrip Specifications

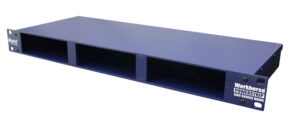

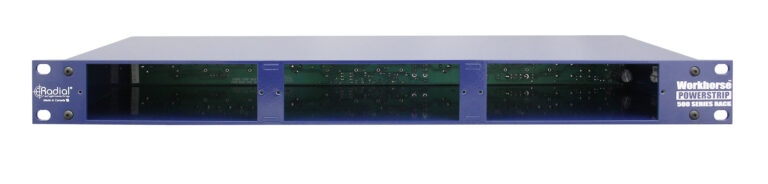

The Radial PowerStrip is a single space, 19″ 3-slot 500 series power rack that follows the guidelines set out in the Workhorse open-source document (Whos-Doc). This accommodates the very latest Radial modules while being backward compatible with older formats. Regarding the audio performance – there is no audio circuitry other than connectors. The Strip will not impart any color, distortion or artefact. The PowerStrip employs Edac gold plated 15-pin card-edge connectors on the inside and Neutrik connectors with non-tarnishing nickel-silver contacts on the back panel for excellent signal transfer. Each slot is equipped with an auto-resetting fuse to protect the system should a faulty module be employed. A 500 milliamp external supply provides plenty of current to feed the modules and 48V for phantom power.

Specifications
Audio circuit type: Connection buss from modules to connectors
Data Compression: Adheres to the Whos-Doc and VPR Alliance
Features
Phantom Power, OmniPort

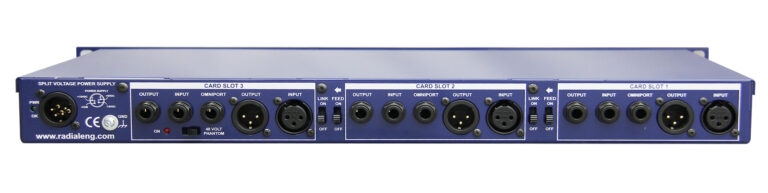

Input Connectors: 3 balanced XLR male, 3 ¼" TRS
Output Connectors: 3 balanced XLR female, 3 ¼" TRS
Extras: 500 milliamps available current; 166mA average current per slot
General
Construction: 14-gauge steel
Size (L x W x D): 19" x 7.25" x 1.25" (483 x 184 x 32mm)
Weight: 6.7lbs (3kg)
Shipping size (L x W x D): 22" x 10.4" x 4.5" (559 x 264 x 114mm)
Shipping weight: 8.9lbs (4kg)
Power: External 100V - 240V AC with 48V Phantom
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable

What do these graphs mean? Learn what to look for and why it matters.

Learn More

PowerStrip Resources

Part no: R700 0105 00
