PowerTube Specifications
The PowerTube is a microphone amplifier that takes on a traditional ‘vintage’ approach to generating gain. In other words, instead of using the latest technology, it goes back to the glory days of analog audio by employing a transformer coupled input, high voltage tube gain stage and class-A output. And although one can find mic preamps that ‘out-spec’ the PowerTube, there is no denying – once you give it a listen, you will find that it sounds spectacular.
Specifications
Block Diagram

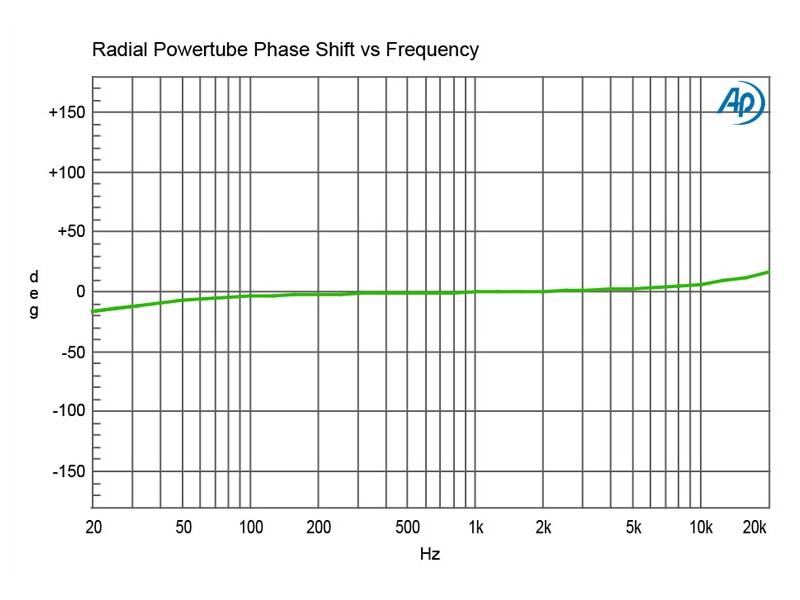

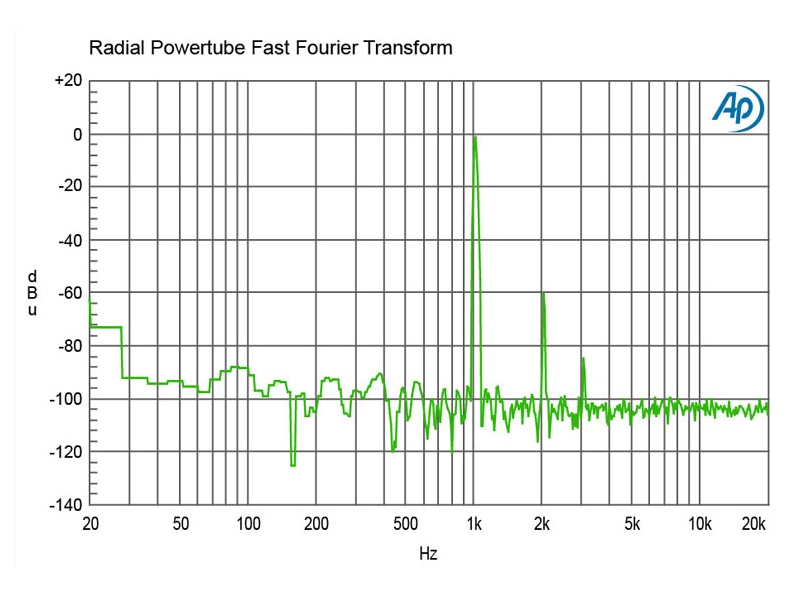

Graphs
| Specifications | ||
|---|---|---|
| Audio circuit type: | 100% discrete class A with 12AX7 tube drive | |
| Transformer: | Jensen JT-115KE | |
| Frequency response: | 20Hz ~ 20KHz +0/-1dB | |
| Dynamic range: | >93dB | |
| Gain: | +75dB when used with Workhorse* | |

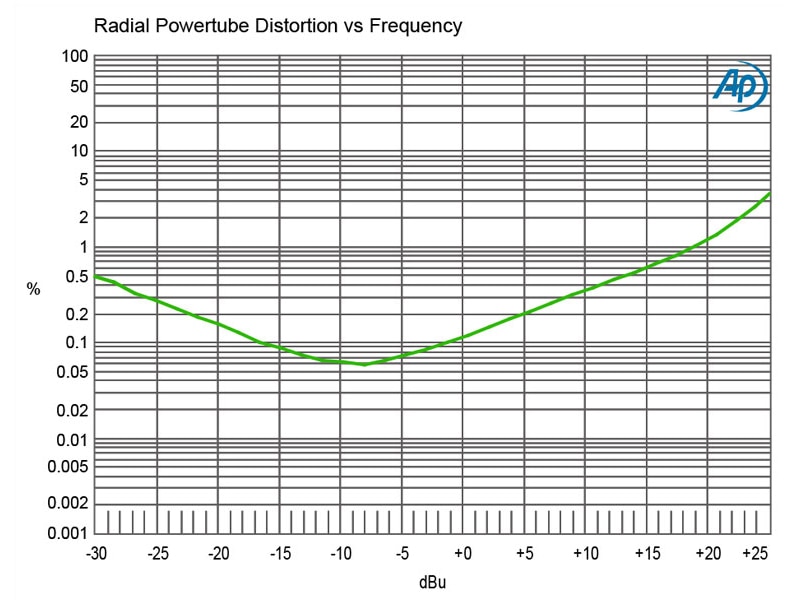

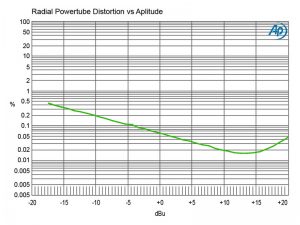

| Total harmonic distortion: | 0.05% | |

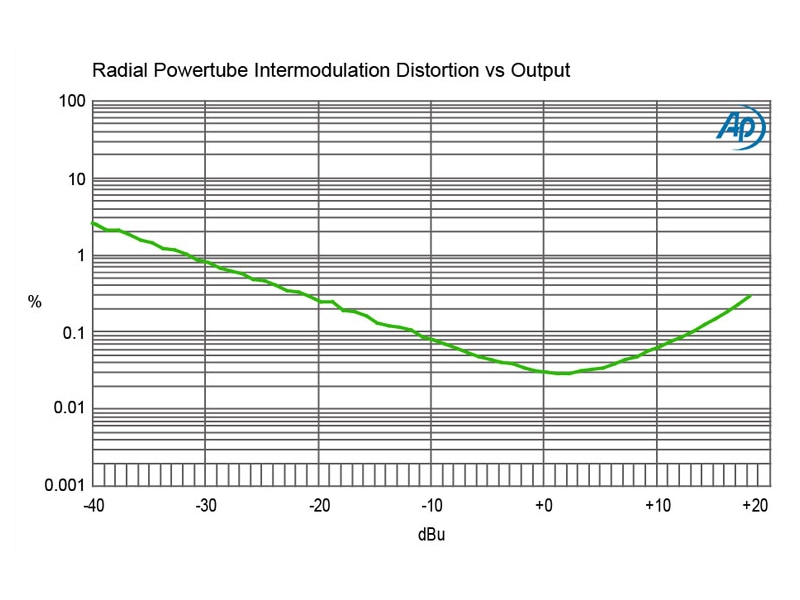

| Intermodulation Distortion: | 0.011% | |
| Input Impedance: | 900Ω | |
| Output Impedance: | 200Ω | |
| Common Mode Rejection Ratio: | >84dB | |

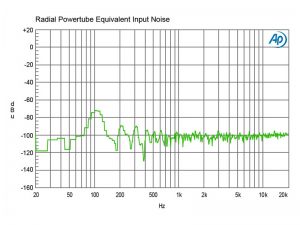

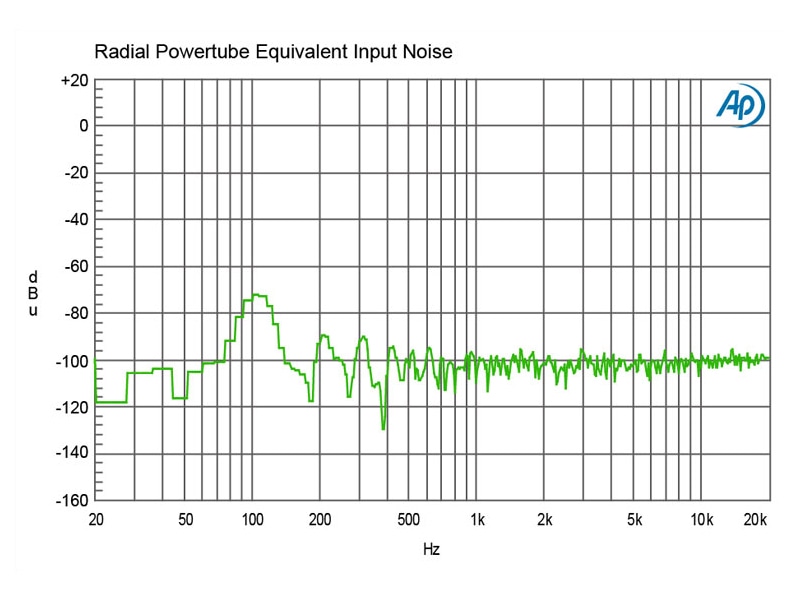

| Equivalent Input Noise: | -128dBu @ maximum gain | |
| Maximum Output: | +22dBu | |
| Current Draw: | 235mA | |
| Features | ||
| 180° polarity reverse, Ground lift, HPF, Level Control, Phantom Power, OmniPort | ||
| Input Connectors: | XLR | |
| Output Connectors: | XLR | |
| General | ||
| Weight: | 1.5lbs (0.7Kg) | |
| Shipping size (L x W x D): | 9 x 6.5 x 2 (inches) | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |
Frequency Response
What do these graphs mean? Learn what to look for and why it matters.
