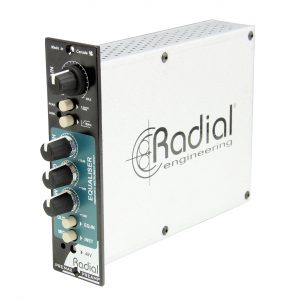

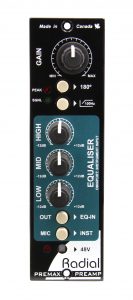

The Radial PreMax is a 500 series module that combines a state-of-the-art preamp with a carefully sculpted EQ. By combining the two into a single channel strip, gain levels are easier to manage for more professional results. When tested, the PreMax preamp section delivers a linear response with greater than 112dB of usable dynamic headroom that is capable of handling input signals in excess of +20dB. The filter and EQ curves are equally as impressive with smooth, musical sounding renderings. This results in an impressive sounding module that will deliver great sound quickly and consistently no matter what the situation.
Specifications
Block Diagram

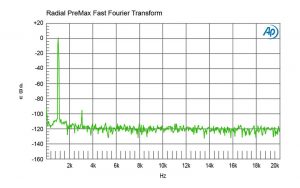

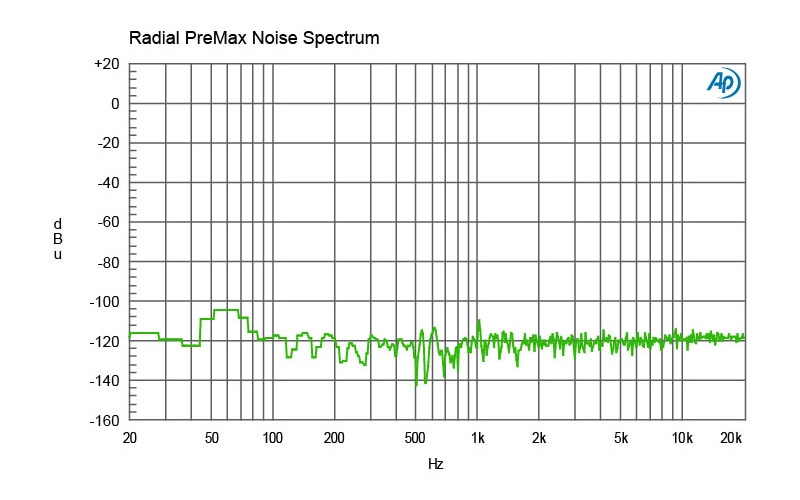

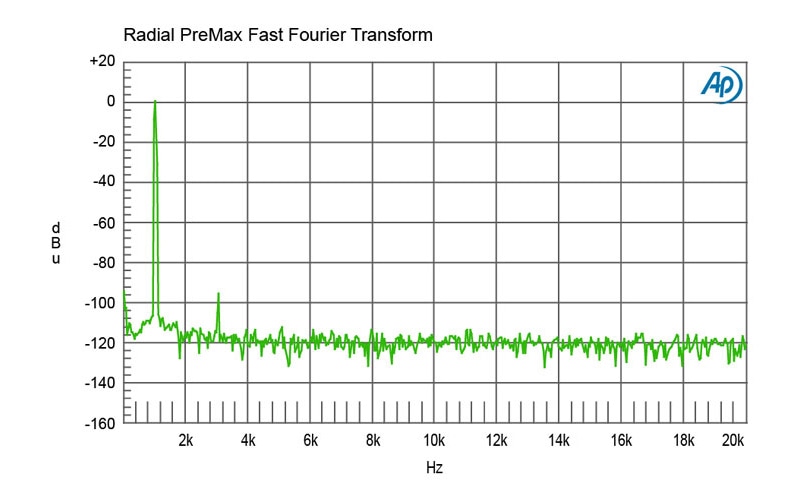

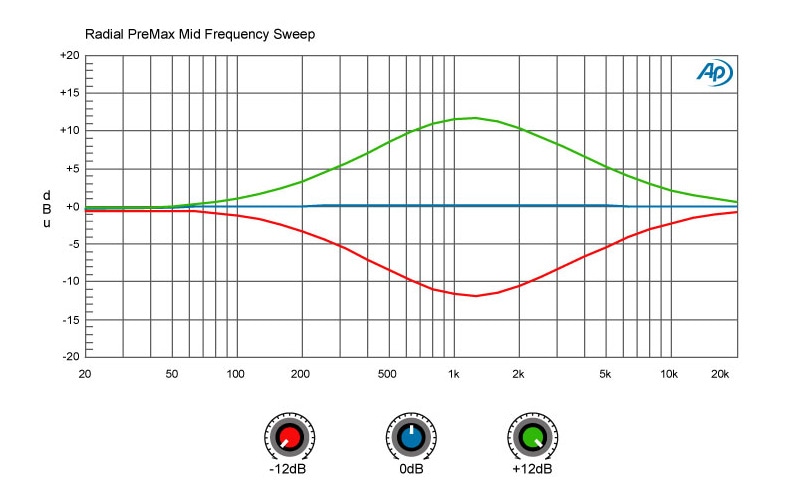

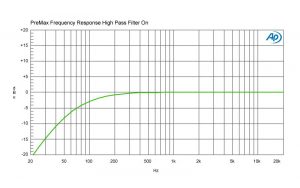

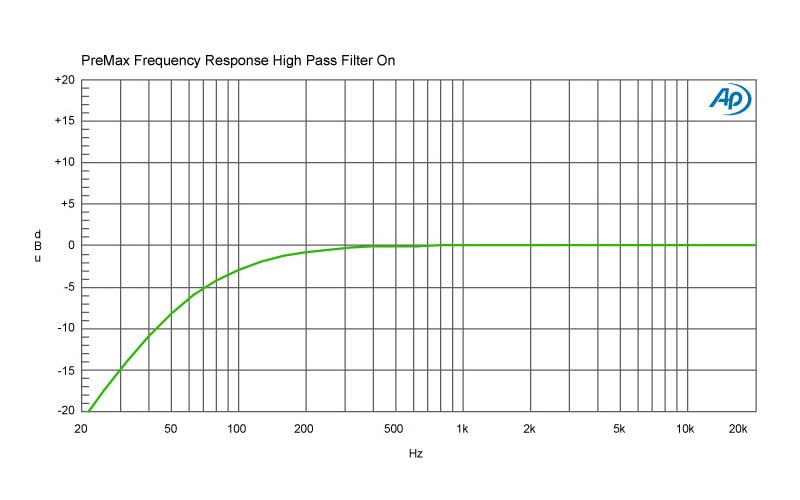

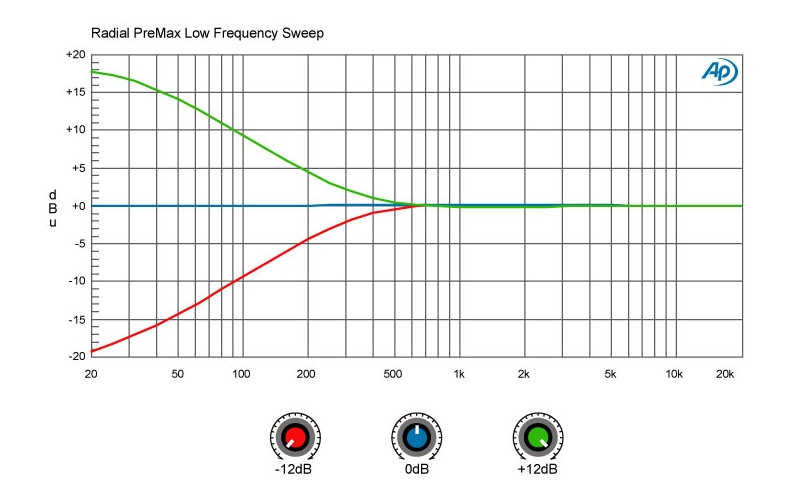

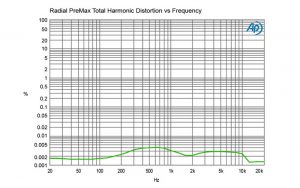

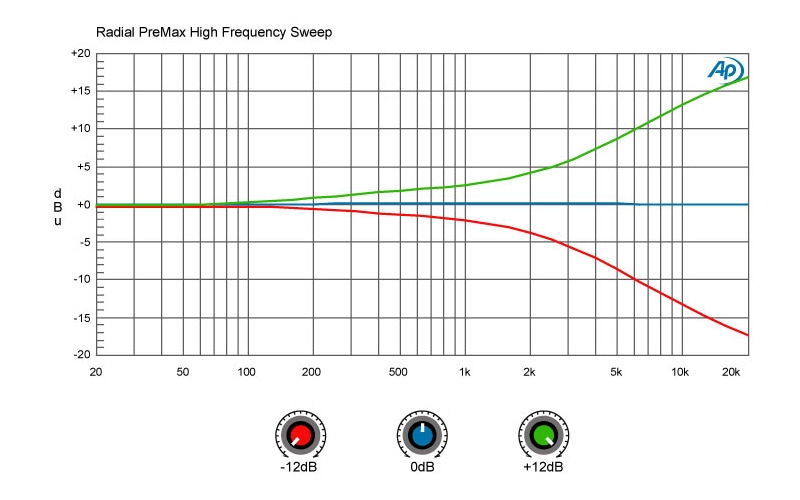

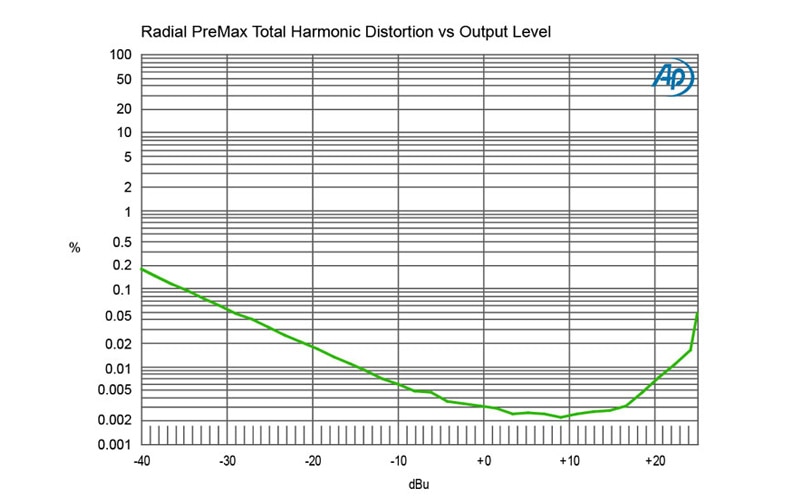

Graphs
Specifications | ||
---|---|---|
Audio circuit type: | Accustate input with true variable gain front end. | |

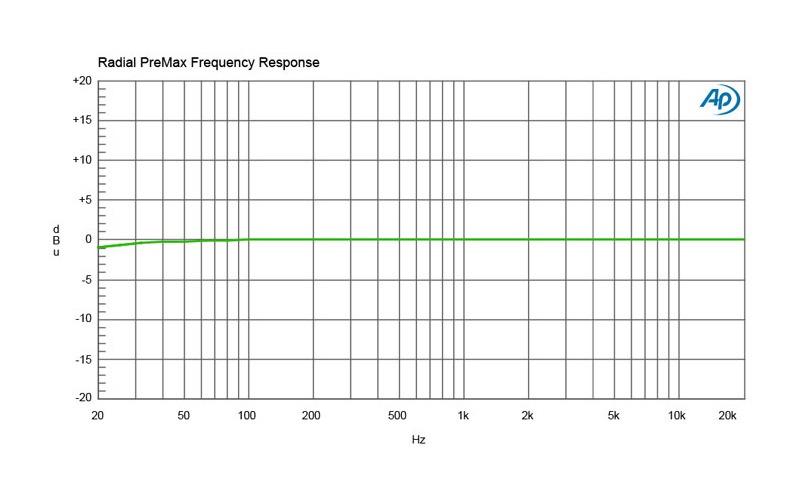

Frequency response: | 20Hz ~ 20kHz (-1.5dB @ 20Hz) | |
Dynamic range: | 112dB | |
Total harmonic distortion: | <0.003 | |
Intermodulation Distortion: | 0.006% @ 30dB gain | |
Input Impedance: | 3300 Ohms | |
Output Impedance: | 300 Ohms | |
Equivalent Input Noise: | -120dBu | |
Noise Floor: | -85dB @ +40dB of gain | |
Maximum Input: | >+22dBu | |
Features | ||
180° polarity reverse, HPF, OmniPort, EQ Control | ||
Extras: | 52dB mic input gain; 30dB instrument input gain; Three band EQ with high and low frequency shelving. | |
General | ||
Construction: | 14-gauge steel | |
Size (L x W x D): | 9" x 6.25" x 2" (228 x 159 x 51mm) | |
Weight: | 1.5lbs (0.7Kg) | |
Power: | 56mA current draw | |
Conditions: | For use in dry locations only between 5°C and 40°C | |
Warranty: | Radial 3-year, transferable |
