ProD2 Specifications

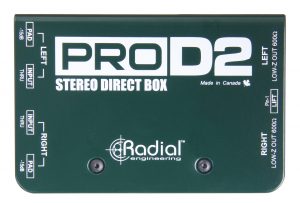

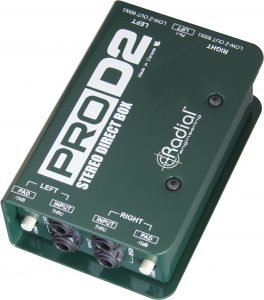

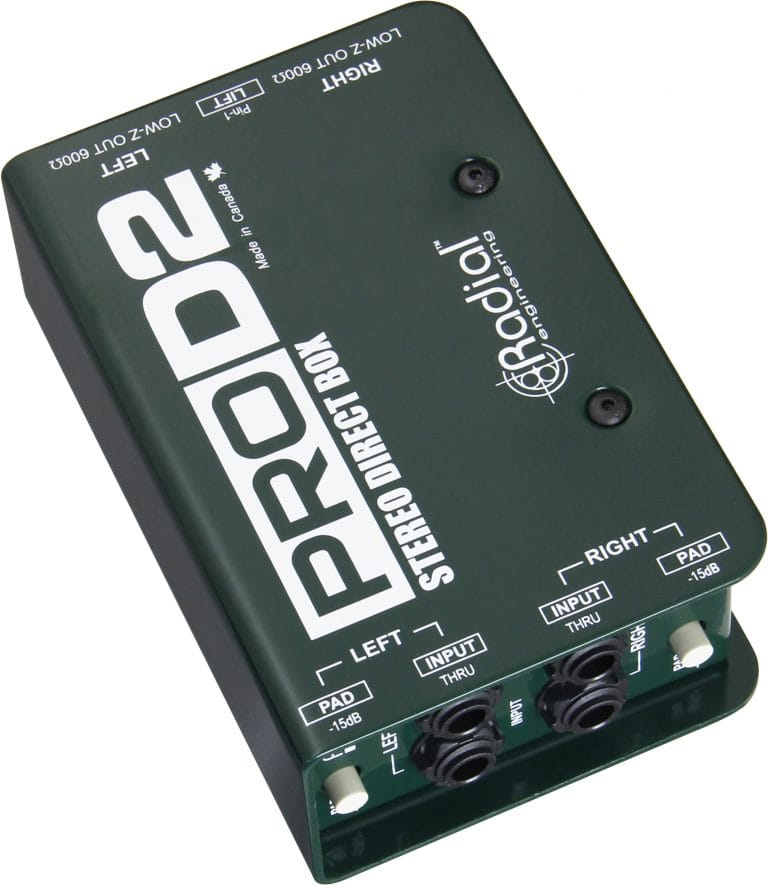

The ProD2 is a high-quality ultra-compact stereo passive direct box that features custom-made Radial transformers. Essentially two ProDIs in one compact enclosure the ProD2 is a great choice for stereo keyboards, DJ equipment and consumer hi-fi systems. Its high-performance transformer has an exceptionally linear frequency response from 20Hz to 18kHz and is able to handle high signal levels without saturation making it ideal for electronic instruments. The ProD2 is housed in an extremely rugged two piece 14 gauge steel enclosure with a book-end designed outer shell that prevents damage to the switches, features a -15dB PAD for high output sources and ground lift switch to troubleshoot noise from ground loops.

Specifications
Audio circuit type: Passive, transformer based
Transformer: Eclipse ET-DB2, 12:1 ratio
Number of channels: 2

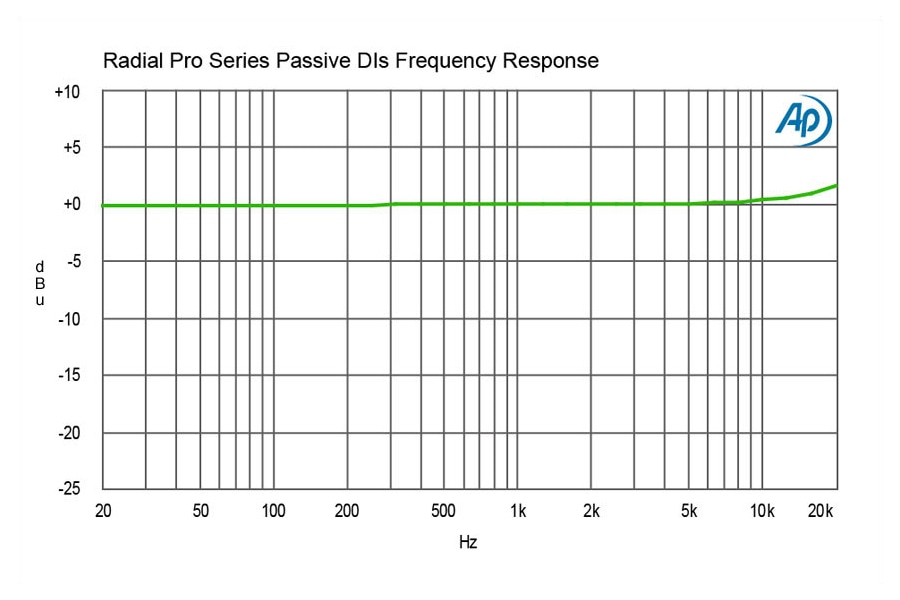

Frequency response: 20Hz ~ 18.5KHz (± 0.2dB)
Dynamic range: 128dB
Total harmonic distortion: 0.01% from 20Hz~20kHz @-10dB

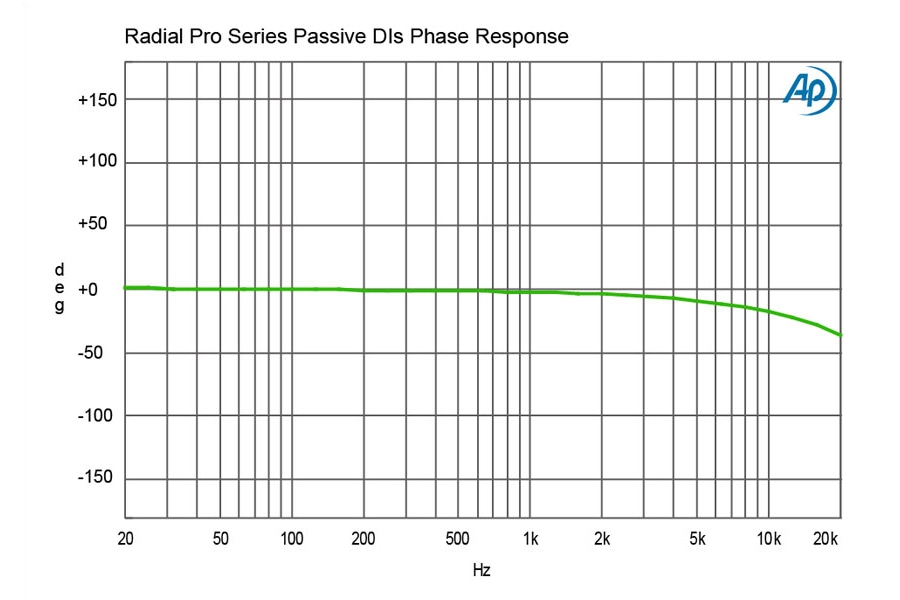

Phase Deviation: 1° @ 100Hz; 8° @ 20Hz
Input Impedance: 140k Ohms, unbalanced
Output Impedance: 150 Ohms, balanced
Maximum Input: +18dB @ 20Hz
Features
Input pad, 180° polarity reverse, Ground lift

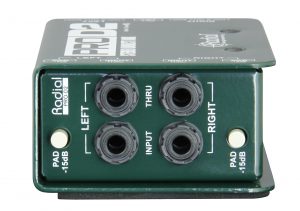

Input Connectors: 1/4"

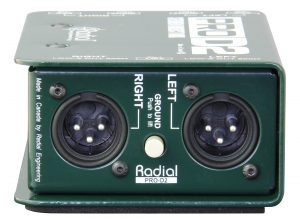

Output Connectors: XLR, 1/4" thru
General
Construction: 14 gauge steel chassis & outer shell
Size (L x W x D): 5" x 3.3" x 1.8" (127mm x 84.1mm x 45.5mm)
Weight: .54kg (1.2lbs)
Shipping size (L x W x D): 6.5" x 4" x 3" (165mm x 102mm x 76mm)
Shipping weight: 0.61 kg (1.35 lbs)
Power: Passive, no power required
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable

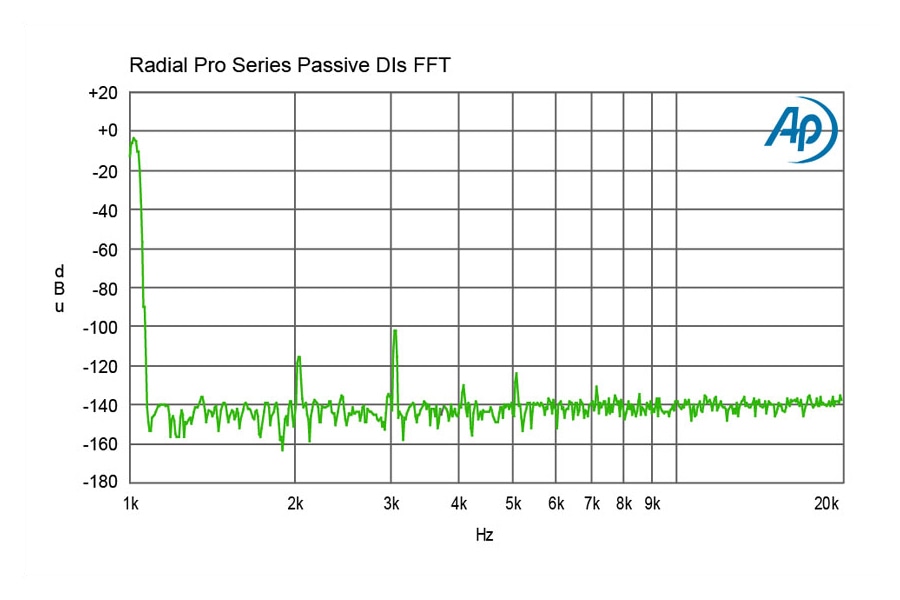

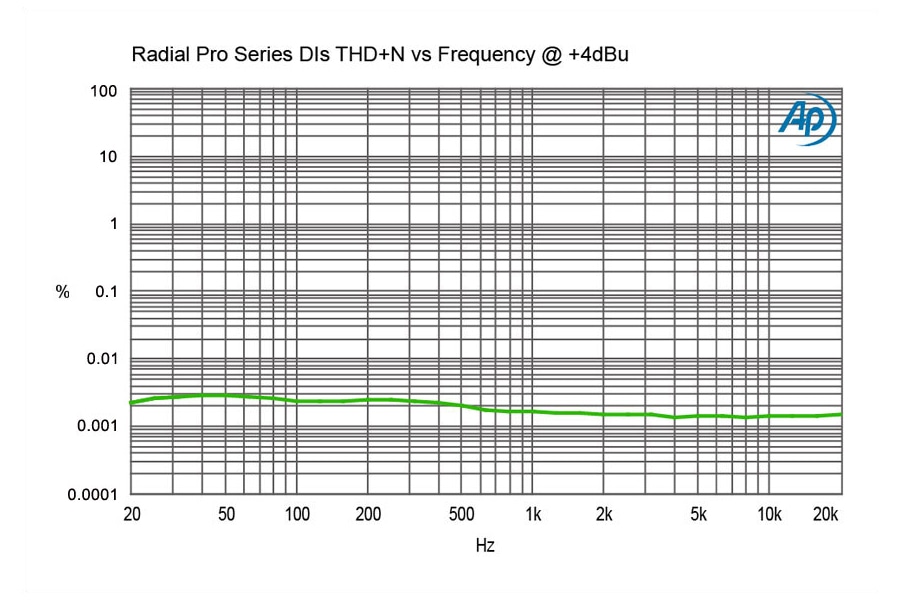

What do these graphs mean? Learn what to look for and why it matters.
