Specifications

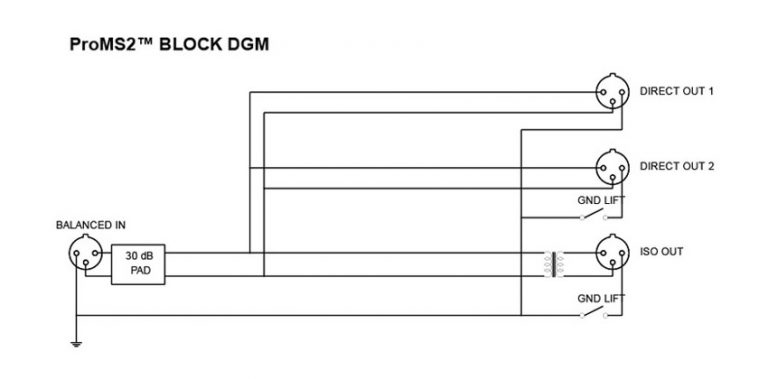

Block Diagram

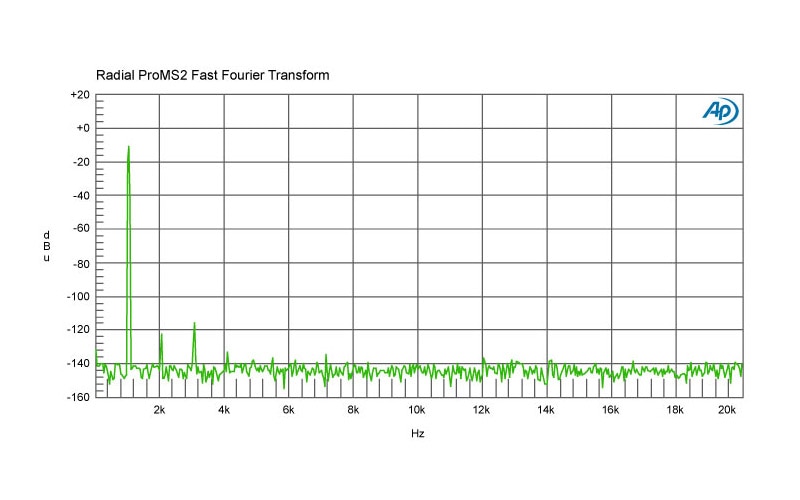

Graphs
| Specifications | ||
|---|---|---|
| Audio circuit type: | Passive | |
| Transformer: | Eclipse ET-MS10 | |
| Frequency response: | 20Hz ~ 20KHz (+0dB -1dB) | |
| Dynamic range: | >140dB | |
| Gain: | -0.5dB | |

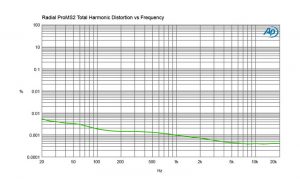

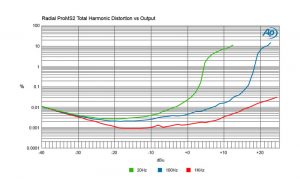

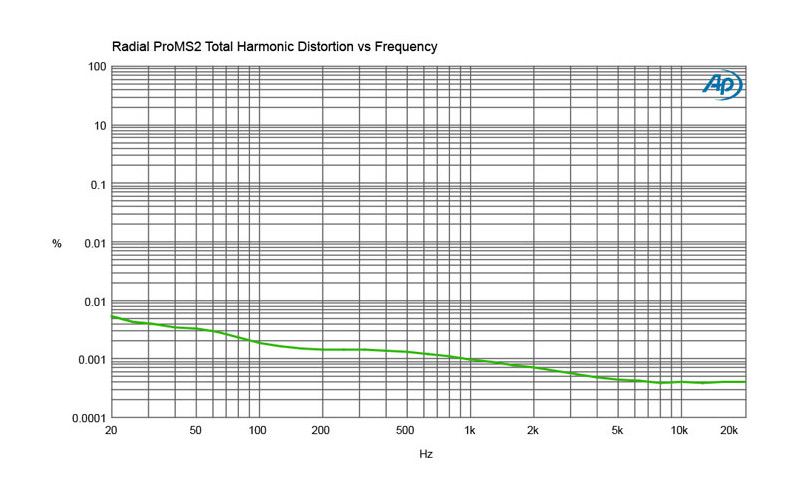

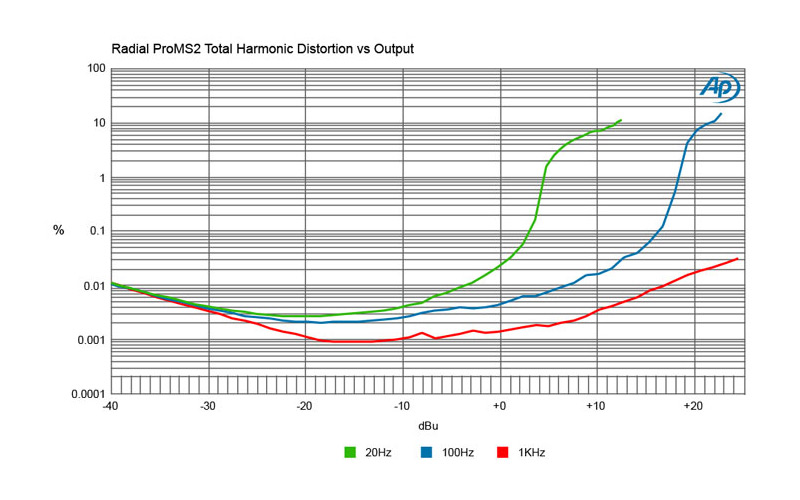

| Total harmonic distortion: | 0.001% | |

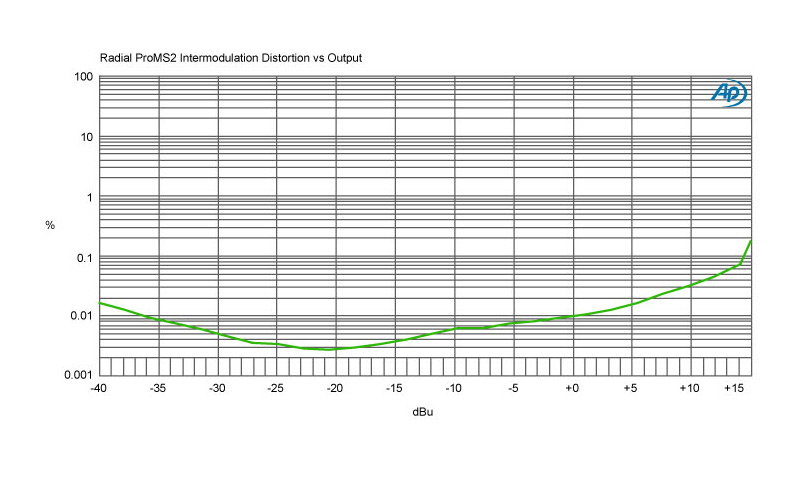

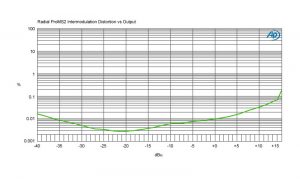

| Intermodulation Distortion: | 0.003% | |

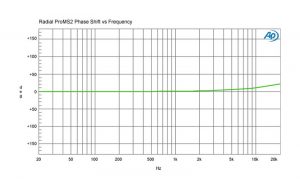

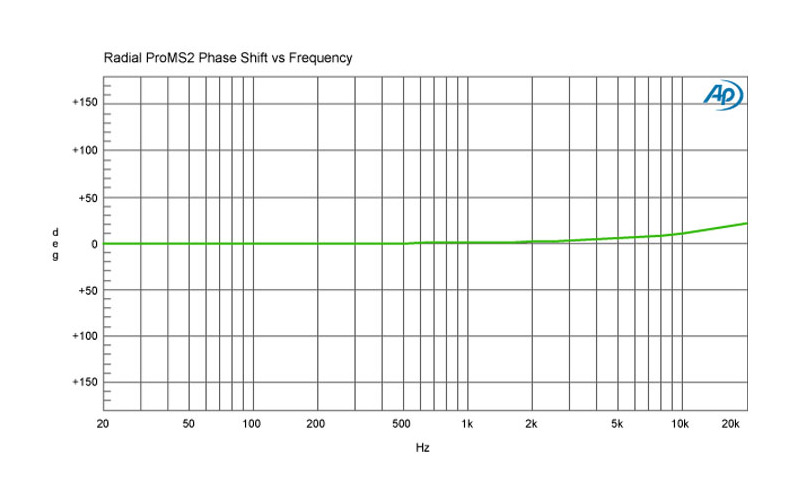

| Phase Deviation: | 1° @ 20Hz | |
| Input Impedance: | Source dependent | |
| Output Impedance: | Source dependent | |

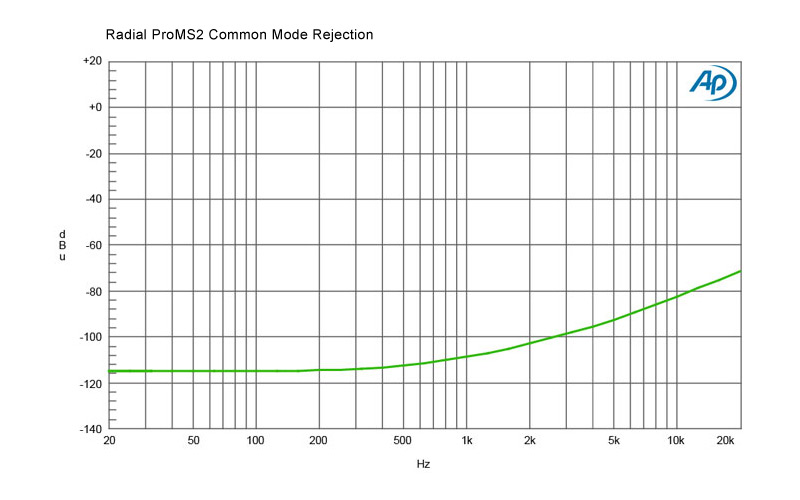

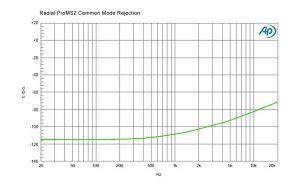

| Common Mode Rejection Ratio: | -115dB at 60Hz | |

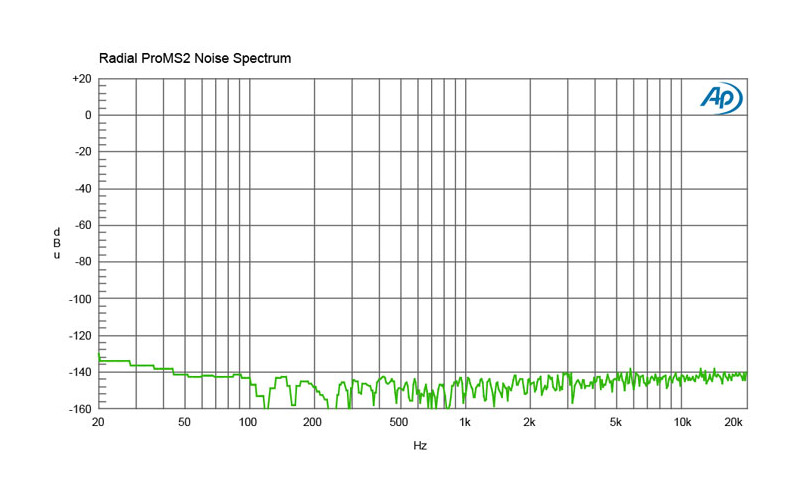

| Noise Floor: | -140dB | |
| Maximum Input: | +26dBu | |
| Features | ||
| Input pad | ||
| Input Connectors: | XLR-F | |
| Output Connectors: | XLR-M | |
| General | ||
| Construction: | 14-gauge steel chassis & outer shell | |
| Size (L x W x D): | 5.0" x x | |
| Weight: | 1.55lb (0.7kg) | |
| Shipping weight: | 1.92lb (0.87kg) | |
| Power: | Passive, no power required | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |

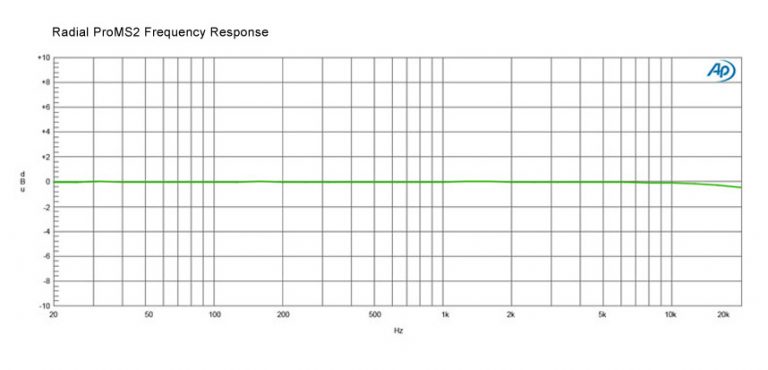

Frequency Response
