PZ-Deluxe Specifications

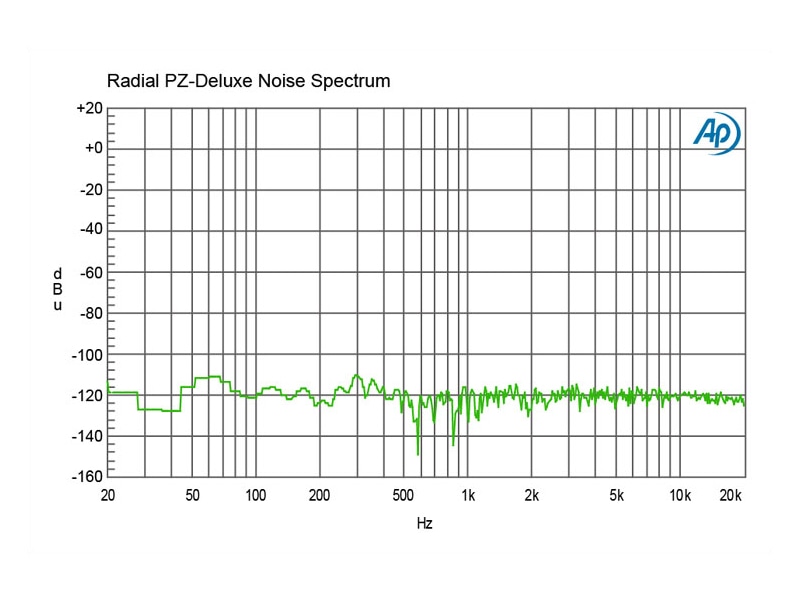

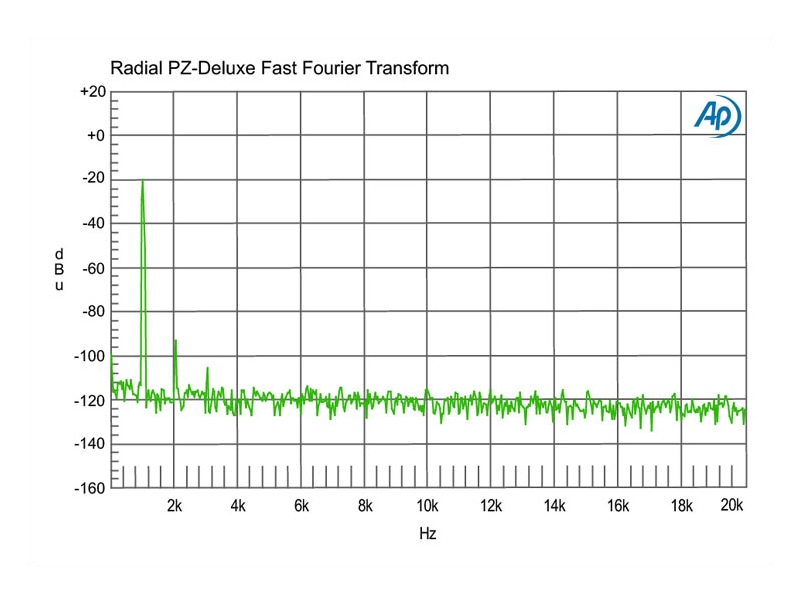

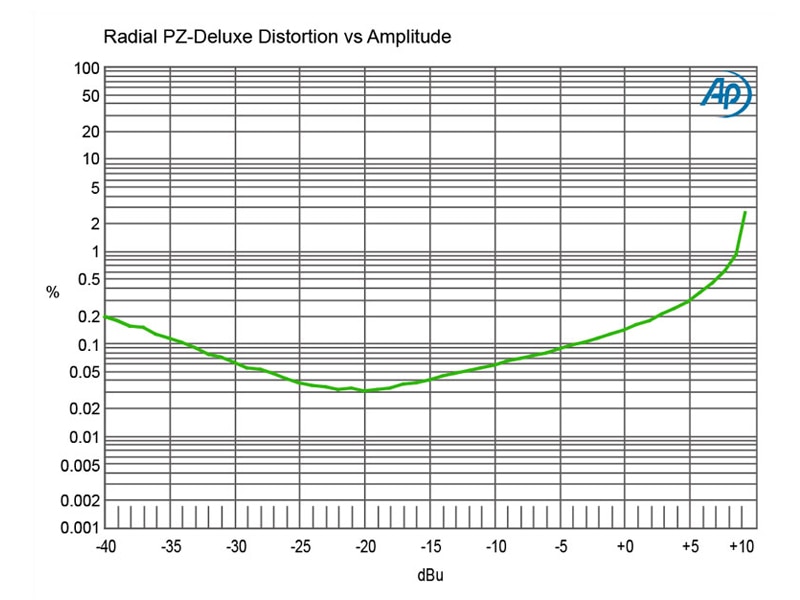

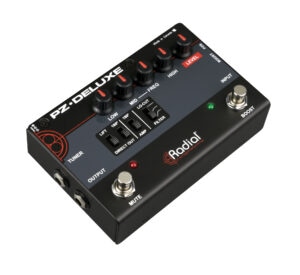

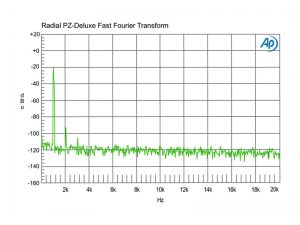

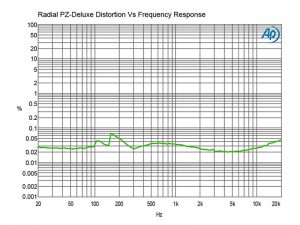

The Radial PZ-Deluxe is a high performance preamp disguised as an effects pedal. One can quickly evaluate the performance by looking at the low noise design (about -120dB at all frequencies), the even order harmonics detailed in the FFT graph and of course the low distortion at the intended guitar and mic signal level range. These support the claim that the radial PZ-Deluxe will deliver the tone of the instrument with optimal signal transfer.

Audio circuit type: Class A FET Hybrid Input Stage
Number of channels: 1
Frequency response: 20Hz ~ 18kHz (0/-3dB)
Dynamic range: 105dB
Gain: +21dB (PZB-Off)

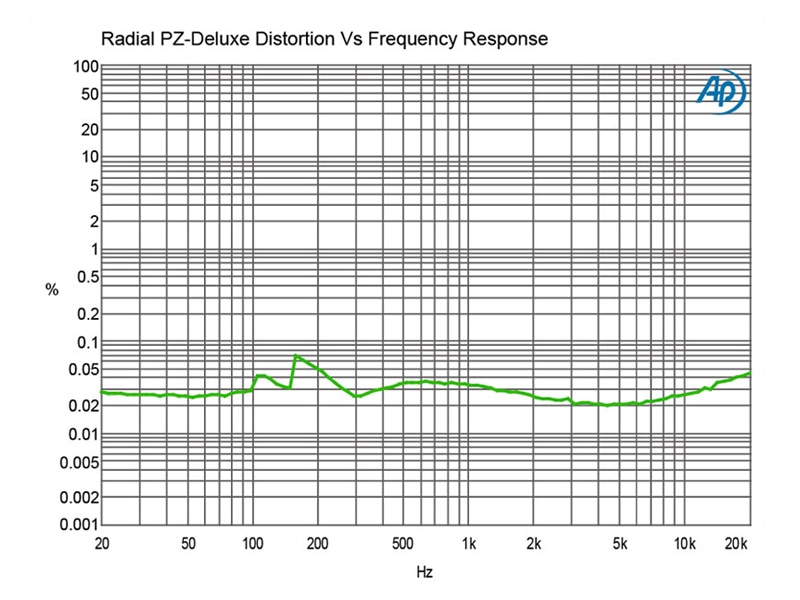

Total harmonic distortion: 0.03% @ -20dB output
Intermodulation Distortion: 0.07%
Input Impedance: PZB OFF: 6.8K Ohms | PZB On: 10M-Ohms
Output Impedance: XLR: 600Ω
Equivalent Input Noise: -108dBu

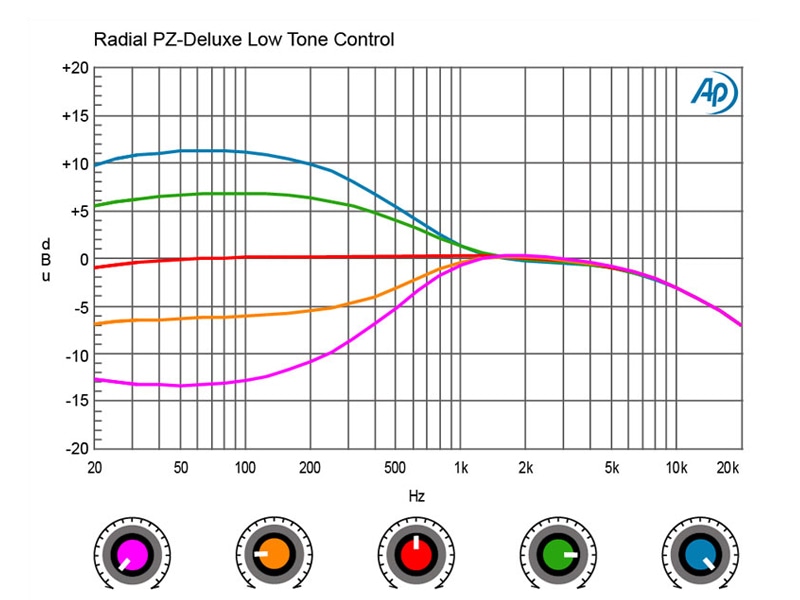

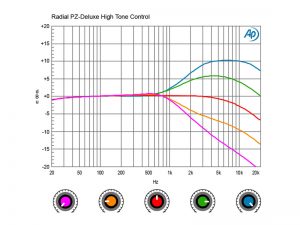

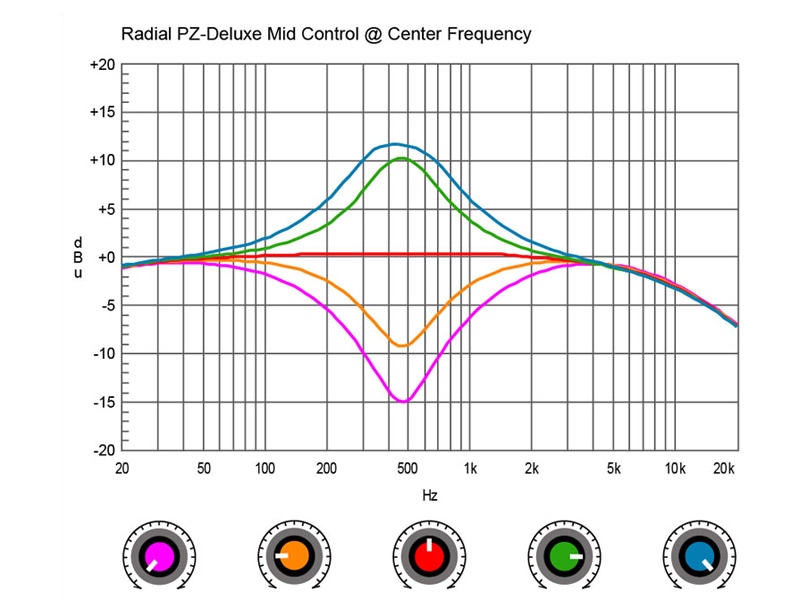

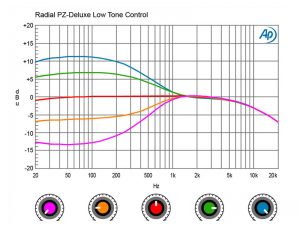

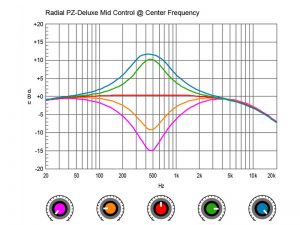

180° polarity reverse, Ground lift, HPF, Level Control, EQ Control, Boost

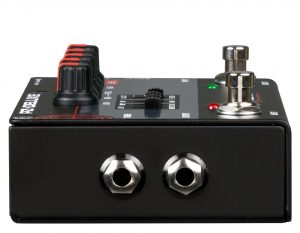

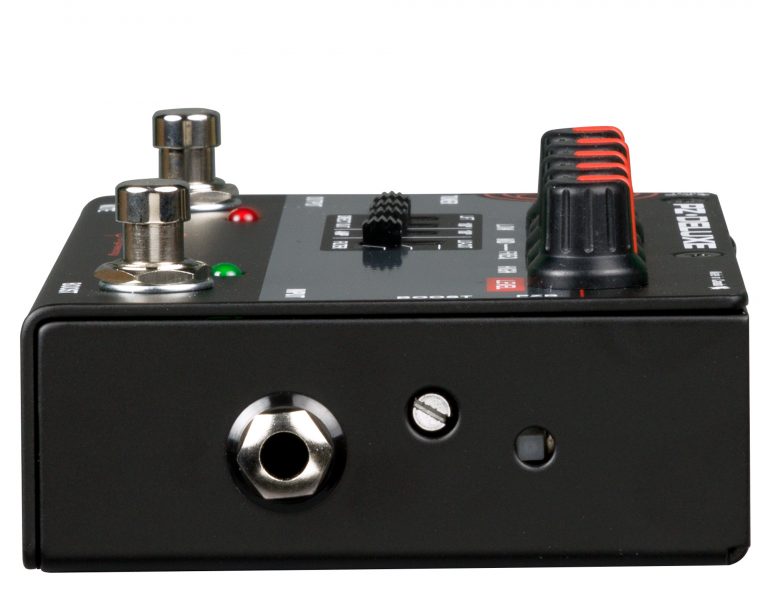

Input Connectors: 1/4"

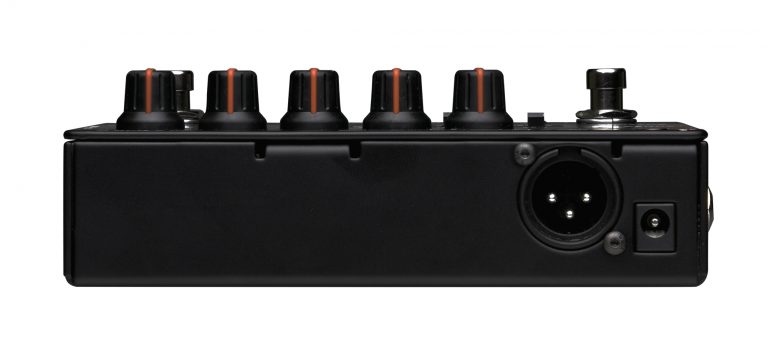

Output Connectors: 1/4", XLR
Size (L x W x D): (6.1" x 3.8" x 2.1") (155 x 96.5 x 53mm)
Weight: 1.75lbs (0.8kg)
Power: 15V 400mA Center Pin Positive Adapter
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable

PZ-Deluxe Resources

Part no: R800 7320 00
